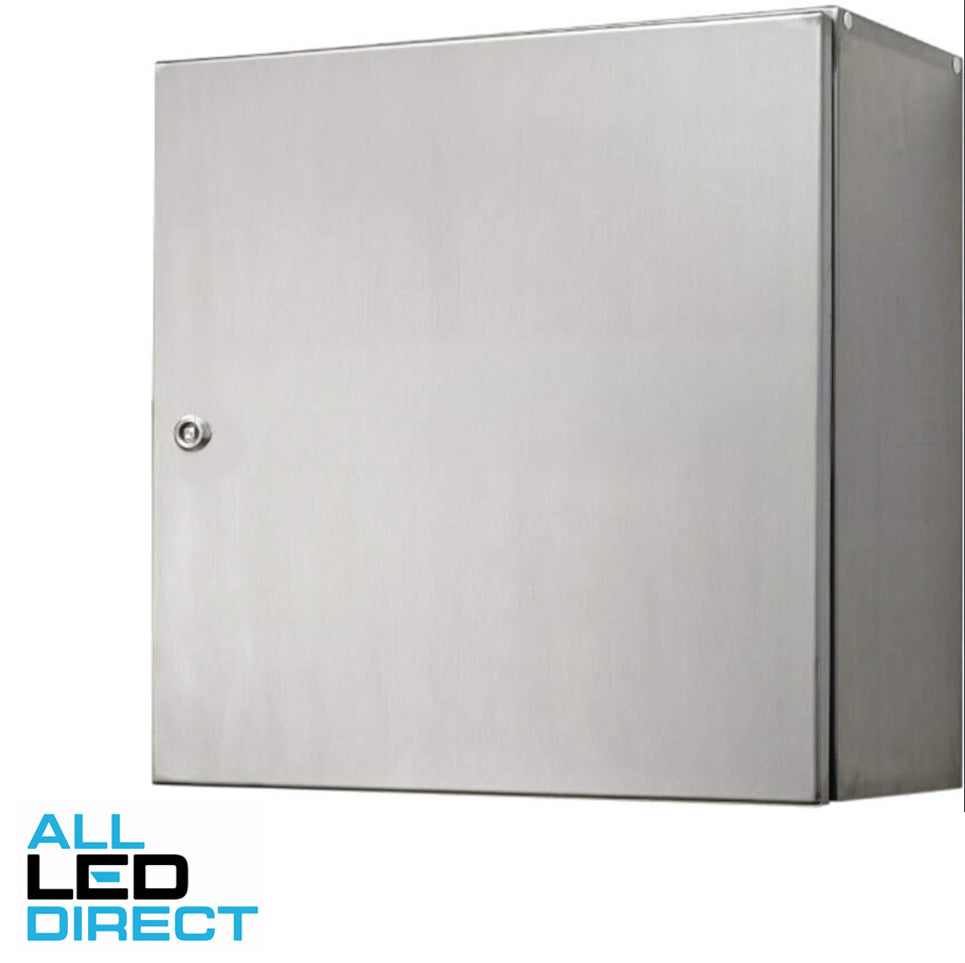

IP Enclosures 300mm W x 300mm H x 150mm D Stainless Steel IP66 Enclosure

IP Enclosures 300mm W x 300mm H x 150mm D Stainless Steel IP66 Enclosure by IP Enclosures is a high-quality electrical enclosure suitable for general industrial applications. The IP Enclosures IP-SS303015 complies with IP66 IK10, NEMA 4x, and meets standards IEC/EN/AS62208, IEC/EN/AS60529. It is made from 1.5mm Grade 316/316L Stainless Steel, with a 0.4 micron Ra surface brushed finish, and features a robust monoblock body and surface-mounted door. The enclosure also includes a device mounting plate fabricated from 1.5mm galvanised steel sheet and a high-quality machine-applied continuous foamed in place (FIP) Polyurethane seal.
Key Features
Material: Made from 1.5mm Grade 316/316L Stainless Steel
Protection: Complies with IP66 IK10, NEMA 4x
Standard: Meets IEC/EN/AS62208, IEC/EN/AS60529 standards
Body: Robust monoblock body with flat face sealing surfaces
Door: Surface-mounted door with concealed removable hinges and captive pins
Seal: High-quality machine-applied continuous foamed in place (FIP) Polyurethane seal
Device Mounting Plate: Fabricated from 1.5mm galvanised steel sheet
Main Benefits
Reliable Protection: Provides excellent sealing and protection against environmental factors
Durable Construction: Made from high-quality materials for long-lasting performance
Easy Installation: Features pre-fitted blind nutserts and integral device plate mounts for easy installation
Compliance: Meets relevant industry standards for safety and reliability
Low Maintenance: Designed for easy maintenance and repair

Attributes:

Brand: IP Enclosures
Part Number: IP-SS303015
Colour: Silver
Enclosure Depth: 150mm
Enclosure Height: 300mm
Enclosure Width: 300mm
IP Rating: IP66
Material: 316 Stainless Steel
Sub Category: Metal Enclosures
Freight Levy: Freight Free on ALL LED DIRECT Couriers for orders over $500
Weight (kg): 8.0000
Length (mm): 300
Height (mm): 300
Width (mm): 150
Length Packaging (mm): 330
Height Packaging (mm): 170
Width Packaging (mm): 330
Barcode: 2000100352496

Warranty Information:

Warranty Method
Return to ALL LED DIRECT
Commercial Use
5 Years
Domestic Use
5 Years
Warranty Period
5 Years
