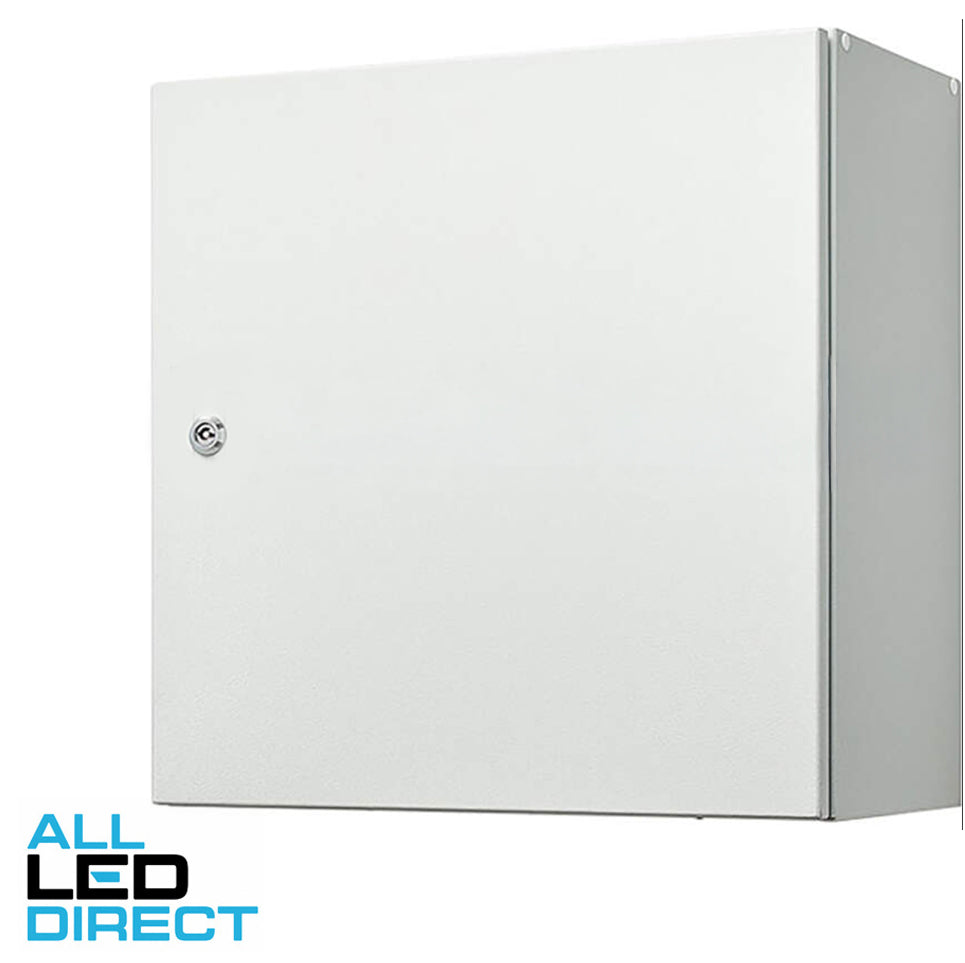

IP Enclosures 300mm W x 300mm H x 150mm D Galvanised Steel IP66 Enclosure Grey

The IP Enclosures 300mm W x 300mm H x 150mm D Galvanised Steel IP66 Enclosure Grey by IP Enclosures is a robust steel electrical enclosure suitable for general industrial applications. IP Enclosures IP-303015 complies with IP66 IK10, NEMA 4, and meets standards IEC/EN/AS62208, IEC/EN/AS60529. The enclosure is made from 1.2-1.5mm galvanised steel sheet, with a door fabricated from 1.5mm galvanised steel sheet, and features a high-quality machine-applied full perimeter Polyurethane seal. The device mounting plate is fabricated using 1.5mm galvanised steel sheet and is supplied pre-fitted into the enclosure as standard.
Key Features
Material: Made from 1.2-1.5mm galvanised steel sheet
Protection: Complies with IP66 IK10, NEMA 4
Standard: Meets IEC/EN/AS62208, IEC/EN/AS60529 standards
Seal: High-quality machine-applied full perimeter Polyurethane seal
Door: Fabricated from 1.5mm galvanised steel sheet with concealed removable hinges
Device Mounting Plate: Fabricated using 1.5mm galvanised steel sheet, pressed to provide additional strength
Main Benefits
Robust Construction: Provides a durable and long-lasting enclosure for industrial applications
High Protection: Offers IP66 IK10, NEMA 4 protection, ensuring the enclosure can withstand harsh environments
Easy Installation: Features pre-fitted blind nutserts and a pre-fitted device mounting plate for easy installation
Convenient Maintenance: The door is designed for a 110° opening, allowing for easy access and maintenance

Attributes:

Brand: IP Enclosures
Part Number: IP-303015
Enclosure Depth: 150mm
Enclosure Height: 300mm
Enclosure Width: 300mm
IP Rating: IP66
Material: Powdercoated Galvanised Steel
Sub Category: Metal Enclosures
Freight Levy: Freight Free on ALL LED DIRECT Couriers for orders over $500
Weight (kg): 6.0000
Length (mm): 300
Height (mm): 300
Width (mm): 150
Length Packaging (mm): 330
Height Packaging (mm): 170
Width Packaging (mm): 330
Barcode: 2000100351932

Warranty Information:

Warranty Method
Return to ALL LED DIRECT
Commercial Use
5 Years
Domestic Use
5 Years
Warranty Period
5 Years
