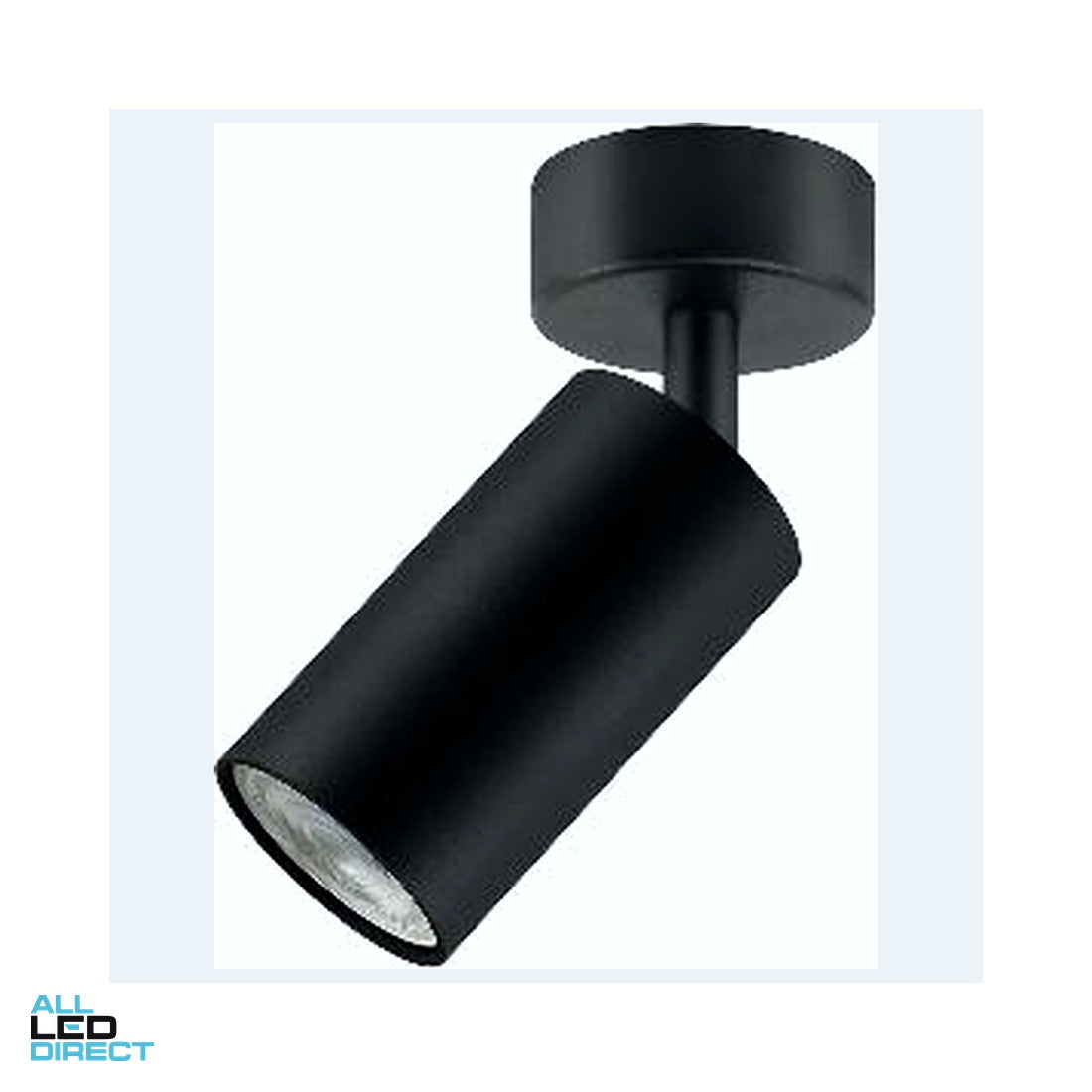

15W indoor spot

Spot ALDSPOT23 15 W LED. IP20. Tilt. Indoor track / surface.

Quote via info@alledirect.com. Australia.

Datasheet ALD-Spot-ALDSPOT23 Rev A.

Electrical
Rated voltage
230 V ac
Frequency
50 Hz
Australian supply range
216–253 V ac
System power
15 W
Electrical class
Class I
Ambient ta
−20 to +45 °C
Switch type
Inline

Optical
System lumens
1250 lm
Efficacy
83.3 lm/W
CCT
2700 / 3000 / 4000 K
CRI
>90
Beam
12 / 24 / 36 / 60°
LED package
COB
Colour name
Warm white / Cool white

Mechanical
Body
Aluminium, powder coated
Diffuser
Polycarbonate
Finishes
Black, white
Installation
Surface mount
Adjustability
Tilt
IP rating
IP20
Diameter × height
Ø 57 × 154 mm

Driver
Type
Dimmable (Phase cut)
Driver included
Yes, remote
Wiring
Rewireable 3-pin terminal
Driver RCM
RCM marked (driver only)

Standards
AS/NZS 60598.1, AS/NZS 60598.2.1, AS/NZS CISPR 15

Warranty Information
Commercial Use
5 years return-to-base
Domestic Use
5 years return-to-base
Warranty Method
Return-to-base
Warranty Period
5 years

Attributes
Brights
Part Number
ALDSPOT23
Wattage
15 Watt

Shipping Information
Weight (kg)

Length Packaging (mm)

Height Packaging (mm)

Width Packaging (mm)
