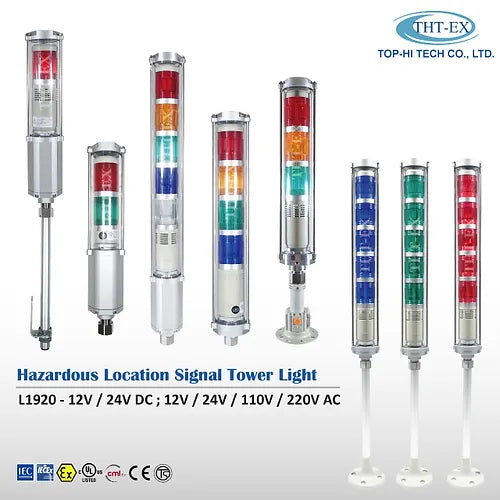

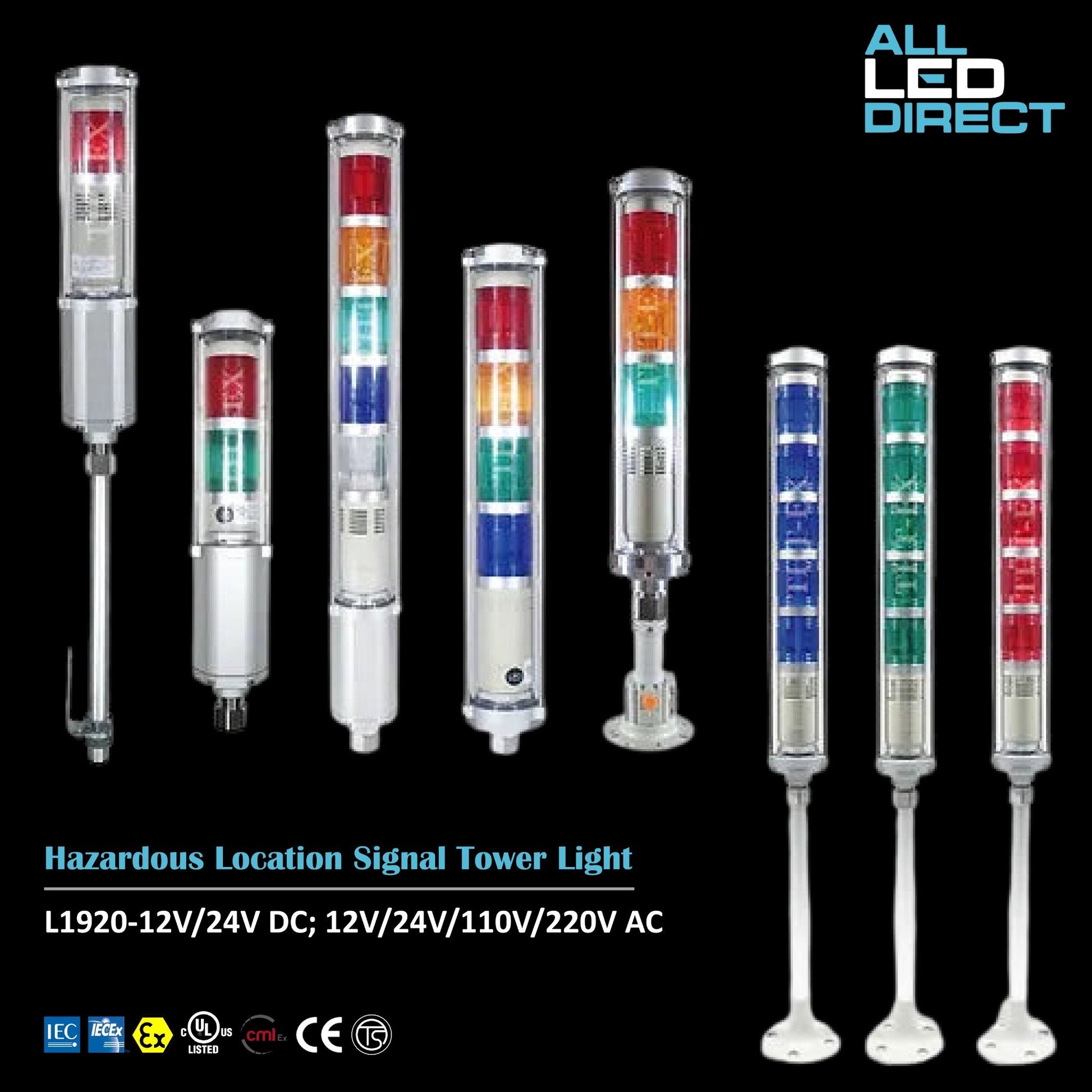

Hazardous Location Signal Tower Light L1920

Light Features

• Available with or without terminal box and buzzer.
• Provide 5 colors and the sequence can be adjusted according to needs.

Applicable Location

•  Zone 2 & Zone 21 & Zone 22
• Class I, Division 2 (Groups A, B, C and D)
• Class II, Division 2 (Groups F and G)
• Class III

Protection

Degree of Protection - IP67 / NEMA 6

UL Certification

• Class I, Division 2 (Groups A, B, C and D) / Class II, Division 2 (Groups F and G) / Class III
• UL 508 / UL 50E / UL 50 / UL121201

IECEx Certification

• Ex ec IIC T4 Gc
• Ex tb IIIC T80°C Db

ATEX Certification

• II 3 G Ex ec IIC T4 Gc
• II 2 D Ex tb IIIC T80°C Db

TS Certification

• Ex ec IIC T4 Gc
• Ex tb IIIC T80°C Db

CML Certification

• Ex ec IIC T4 Gc
• Ex tb IIIC T80°C Db

Specification

• Volt.: 12V / 24V DC ; 12V / 24V / 110V / 220V AC
• Amps: 0.01A~0.15A
• Frequency: 50 / 60 Hz (AC)
• Entrance Thread: M22
• Buzzer Volume: 80dB (Tested 1 meter away from the device)

Ambient Temprature

• UL: -25°C ~ +40°C
• IECEx&ATEX: -20°C ~ +40°C

Optical Information

• Color : Red, Orange, Green, Blue, White
