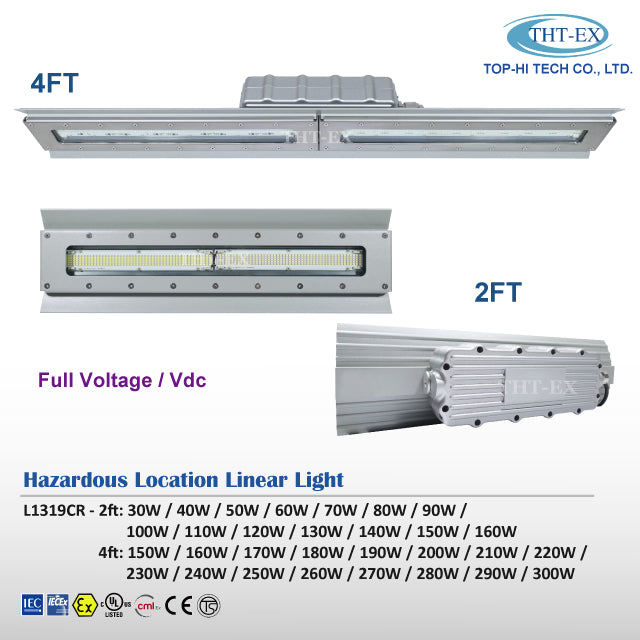

Hazardous Location Linear Light L1319CR Full Volt VDC

Protection

Degree of Protection - IP67 / NEMA 6

IECEx Certification

• Ex nR IIC T4...T5 Gc
• Ex tb IIIC T115°C...T95°C Db

ATEX Certification

• II 3 G Ex nR IIC T4...T5 Gc
• II 2 D Ex tb IIIC T1105°C...T95°C Db

UL Certification

• UL844 - Class I, Division 2 (Group A, B, C and D)
• UL1598
• UL8750

TS Certification

• Ex nR IIC T4...T5 Gc
• Ex tb IIIC T115°C...T95°C Db

CML Certification

• Ex nR IIC T4...T5 Gc
• Ex tb IIIC T115°C...T95°C Db

Specification

• Volt.(±10%): 100 ~ 277 Vac / 125Vdc
• Watt.(±10%):

[2ft] 30W, 35W, 40W, 45W, 50W, 55W, 60W, 70W, 80W, 90W, 100W, 110W, 120W, 130W, 140W, 150W, 160W

[4ft] 150W, 160W, 170W, 180W, 190W, 200W, 210W, 220W, 230W, 240W, 250W, 260W, 270W, 280W, 290W, 300W

• Amps: 0.11A~3.00A
• Frequency: 50Hz / 60Hz
• Power Factor: cos≧0.9

Ambient Temperature

IECEx & ATEX

• -20°C ~ +40°CUL
• -40°C ~ +40°C, T3C
