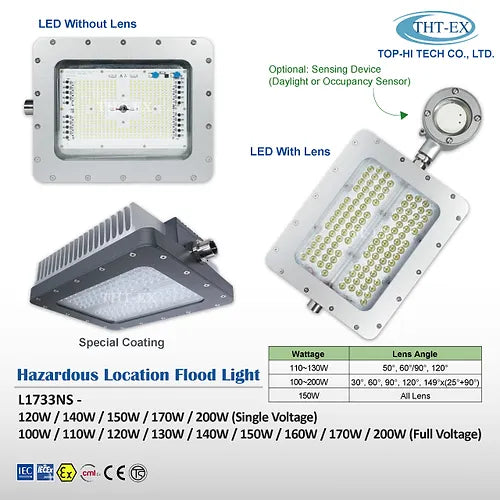

Hazardous Location Light Optional Sensor L1733NS

Light Features

• Various wattage for different luemen requirement
• Different angle lens (30°, 60°, 90°, 120°, 149°x(25°+90°)) is available upon request
• Sensing Device is optional
• High luminous efficiency & low conversion loss rate

Applicable Location

• Zone 2
• Zone 21 & Zone 22

Protection

Degree of Protection - IP67 / NEMA 6

IECEx Certification

• Ex nR IIC T4 Gc
• Ex tb IIIC T110˚C Db

ATEX Certification

• II 3 G Ex nR IIC T4 Gc
• II 2 D Ex tb IIIC T110°C Db

TS Certification

• Ex nR IIC T4 Gc
• Ex tb IIIC T110˚C Db

CML Certification

• Ex nR IIC T4 Gc
• Ex tb IIIC T110˚C Db

Specification

• Volt.: 110V, 120V, 220V, 230V, 277V AC (Single Voltage) / 100~277V AC (Full Voltage)
• Watt.: 120W, 140W, 150W, 170W, 200W (Single Voltage) / 100W, 110W, 120W, 130W, 140W, 150W, 160W, 170W, 200W (Full Voltage)
• Amps: 0.36A~2.00A

• Frequency: 50Hz / 60Hz
• Power Factor: cos≧0.9

Ambient Temperature

• -20°C~+50°C, T4
• -20°C~+45°C & -20°C~+40°C, T4 (Only for Full Voltage)

Optical Information

• CCT : 3000K (Warm White) / 5000K (Cool White)
• CRI : Warm White≧80 / Cool White≧70
• Lum/Watt. : ≧ 120 lm
