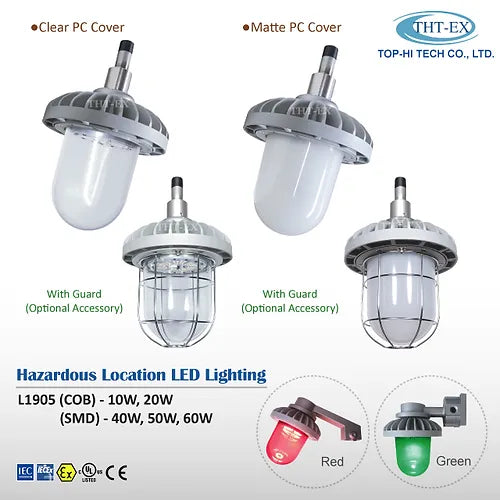

Hazardous Location LED Light L1905 COB SMD

Light Features

• Compact size and lightweight 40% less than conventional lighting
• Both warning light and Emergency eyewash?lighting available
• Provide safe illumination in?hazardous areas and other high humidity,?dusty locations

Applicable Location

• Class I, Division 2 (Groups A, B, C and D)
• Zone 2
• Zone 21 & Zone 22

Protection

Degree of Protection - IP67 / NEMA 6

UL Certification

• UL844 - Class I, Division 2 (Groups A, B, C and D)
• UL1598

IECEx Certification

• Ex nR IIC T6 Gc
• Ex tb IIIC T85?C Db

ATEX Certification

• II 3 G Ex nR IIC T6 Gc
• II 2 D Ex tb IIIC T85?C Db

Specification

• Volt.: 100V / 110V / 120V / 200V / 208V / 220V / 240V / 277V / 347V / 480V AC
• Watt.: COB-10W / 20W ; SMD-40W / 50W / 60W
• Amps: 0.03A~0.55A
• Frequency: 50Hz / 60Hz
• Power Factor: cos?0.9

Ambient Temperature

UL-CID2?

• -40?C ~ +40?C, T4A
• -40?C ~ +65?C, T3C

IECEx & ATEX

• -20?C ~ +40?C, T6
• -20?C ~ +50?C, T6?

Optical Information

• CCT : 3000K (Warm White) / 5000K (Cool White) / Red / Green
• CRI : Warm White?80?/ Cool White?70
• Lum/Watt. : ? 90 (Warm White) / ? 100 (Cool White)
• Beam Angle : Clear X-127?, Y-127? / Matte X-177?, Y-177?
