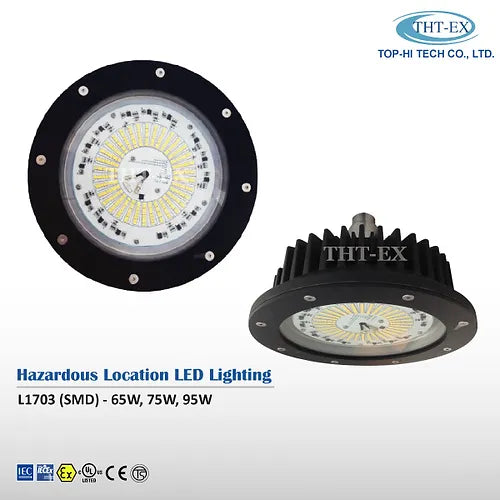

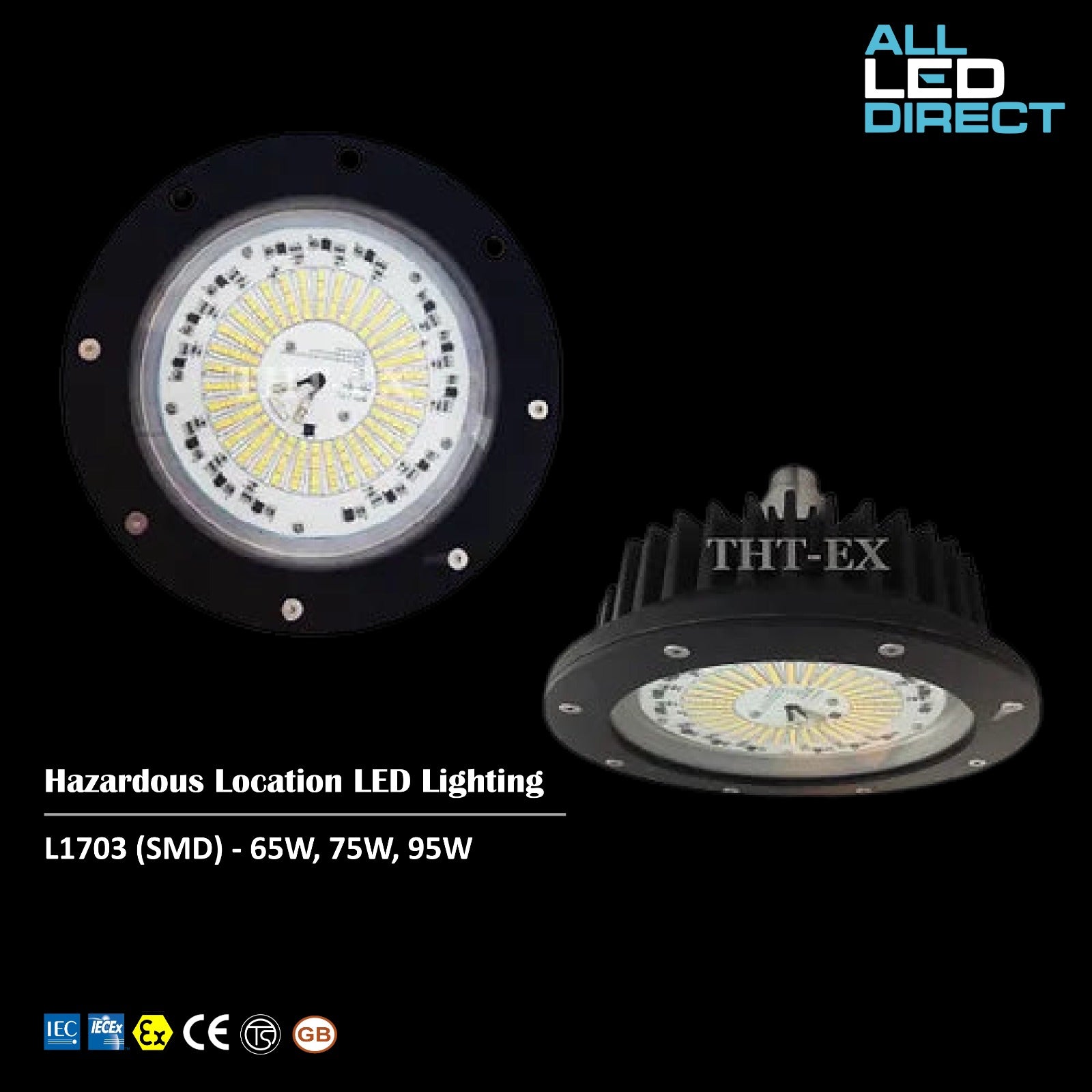

Hazardous Location LED Light L1703 SMD

Light Features

• AC-In LED (Driver-less) technology increases efficiency, reduces maintenance costs & environmentally friendly
• Perfect for hazardous, heavy industrial and wet locations
• Superior corrosion resistance
• Compact size & lightweight 40% less than conventional lighting

Applicable Location

• Zone 2
• Zone 21 & Zone 22
• Class I, Division 2 (Group A, B, C and D)
• Class II, Division 2 (Group F and?G)
• Class III

Protection

Degree of Protection - IP67 / NEMA 6

IECEx Certification

• Ex nR IIC T4 Gc
• Ex tb IIIC T120?C Db

ATEX Certification

• II 3 G Ex nR IIC T4 Gc
• II 2 D Ex tb IIIC T120?C Db

UL Certification

• UL844 - Class I, Division 2 (Group A, B, C and D)?/ Class II, Division 2 (Group F and?G) /?Class III
• UL1598

TS Certification

• Ex nR IIC T4 Gc?
• Ex tb IIIC T120?C Db?

Specification

• Volt.: 110V / 120V / 220V / 277V AC
• Watt.: 65W / 75W / 95W
• Amps: 65W (0.23A~0.59A) / 75W (0.27A~0.68A) / 95W (0.34A~0.86A)

• Frequency: 50Hz / 60Hz
• Power Factor: cos?0.9

Ambient Temperature

• -40?C ~ +55?C, T4
• CID2: -40?C ~ +40?C, T3C?/ CIID2: +40?C, T4A (UL Certification)

Optical Information

• CCT : 3000K (Warm White) / 5000K (Cool White)
• CRI : Warm White?80?/ Cool White?70
• Lum/Watt. : ? 95 (Warm White) / ? 100 (Cool White)
• Beam Angle : X-110? / Y-110?
