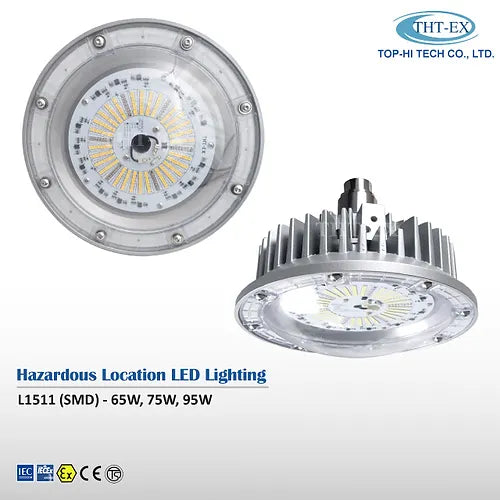

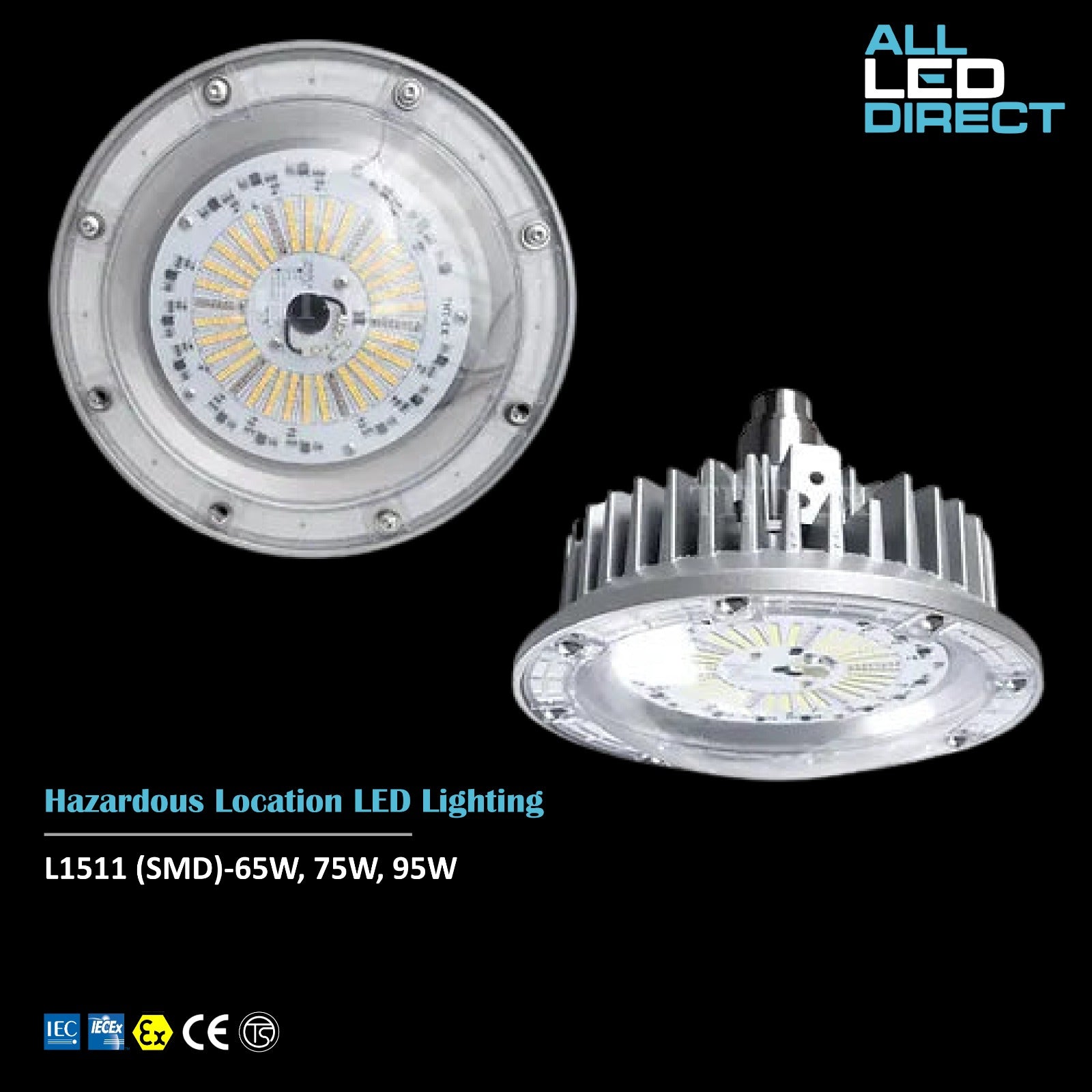

Hazardous Location LED Light L1511 SMD

Light Features

• High luminous efficiency & low conversion loss rate
• Cost-effective illumination solution for hazardous location
• Lighting with plastic PC cover which is perfect for flour mills, grain mills, feed mills, food processing plants, etc., to prevent glass fragments from being mixed into food.

Applicable Location

• Zone 2
• Zone 21 & Zone 22

Protection

Degree of Protection - IP67 / NEMA 6

IECEx Certification

• Ex nR IIC T5 Gc
• Ex tb IIIC T100˚C Db

ATEX Certification

• II 3 G Ex nR IIC T5 Gc
• II 2 D Ex tb IIIC T100˚C Db

TS Certification

• Ex nR IIC T5 Gc X
• Ex tb IIIC T100˚C Db X

Specification

• Volt.: 110V / 220V / 277V AC
• Watt.: 50W / 65W / 75W / 95W
• Amps: 50W (0.18A~0.45A) / 60W (0.22A~0.55A) / 75W (0.27A~0.68A) / 95W (0.34A~0.86A)

• Frequency: 50Hz / 60Hz
• Power Factor: cos≧0.9

Ambient Temperature

• -20°C ~ +55°C, T5

Optical Information

• CCT : 3000K (Warm White) / 5000K (Cool White)
• CRI : Warm White≧80 / Cool White≧70
• Lum/Watt. : ≧ 95 (Warm White) / ≧ 100 (Cool White)
• Beam Angle : X-110° / Y-110°
