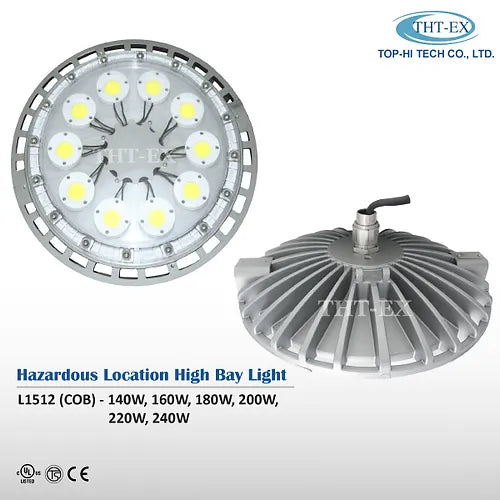

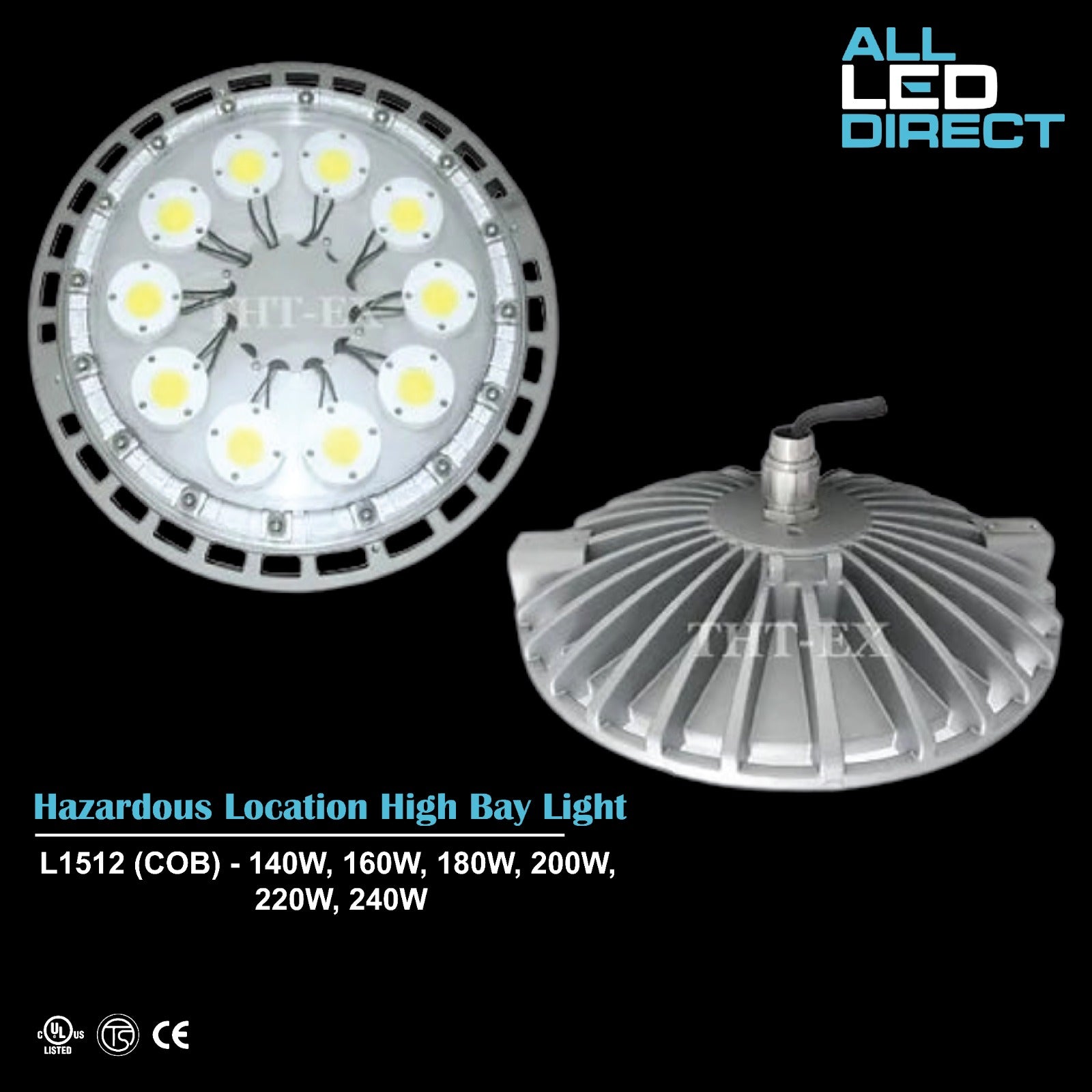

Hazardous Location High Bay Light L1512 COB

Light Features

• Higher wattage up to 240W

Applicable Location

• Zone 2
• Zone 21 & Zone 22
• Class I, Division 2 (Groups A, B, C and D)
• Class II, Division 2 (Group F and G)
• Class III

Protection

Degree of Protection - IP67 / NEMA 6

UL Certification

• UL844 - Class I, Division 2 (Groups A, B, C and D) / Class II, Division 2 (Group F and G) / Class III
• UL1598

TS Certification

• Ex nR IIC T5 Gc X
• Ex tb IIIC T100˚C Db X

Specification

• Volt.: 110V / 120V / 208V / 220V / 277V / 347V / 480V AC
• Watt.: 140W / 160W / 180W / 200W / 220W / 240W
• Amps: 140W (0.29A~1.27A) / 160W (0.33A~1.45A) / 180W (0.38A~1.64A) / 200W (0.42A~1.82A) / 220W (0.46A~1.83A) / 240W (0.5A~2A)
• Frequency: 50Hz / 60Hz

• Power Factor: cos≧0.9

Ambient Temperature

• -20°C ~ +40°C, T5
• -20°C ~ +40°C, T3A (UL Certification)

Optical Information

• CCT : 3000K (Warm White) / 5000K (Cool White)
• CRI : Warm White≧80 / Cool White≧70
• Lum/Watt. : ≧ 100 (Warm White) / ≧ 100 (Cool White)
• Beam Angle : X-110° / Y-110°
