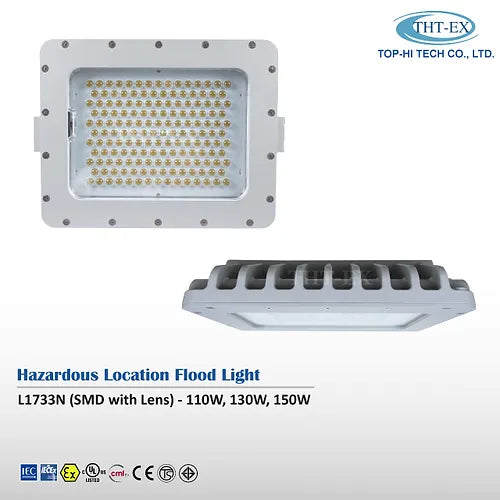

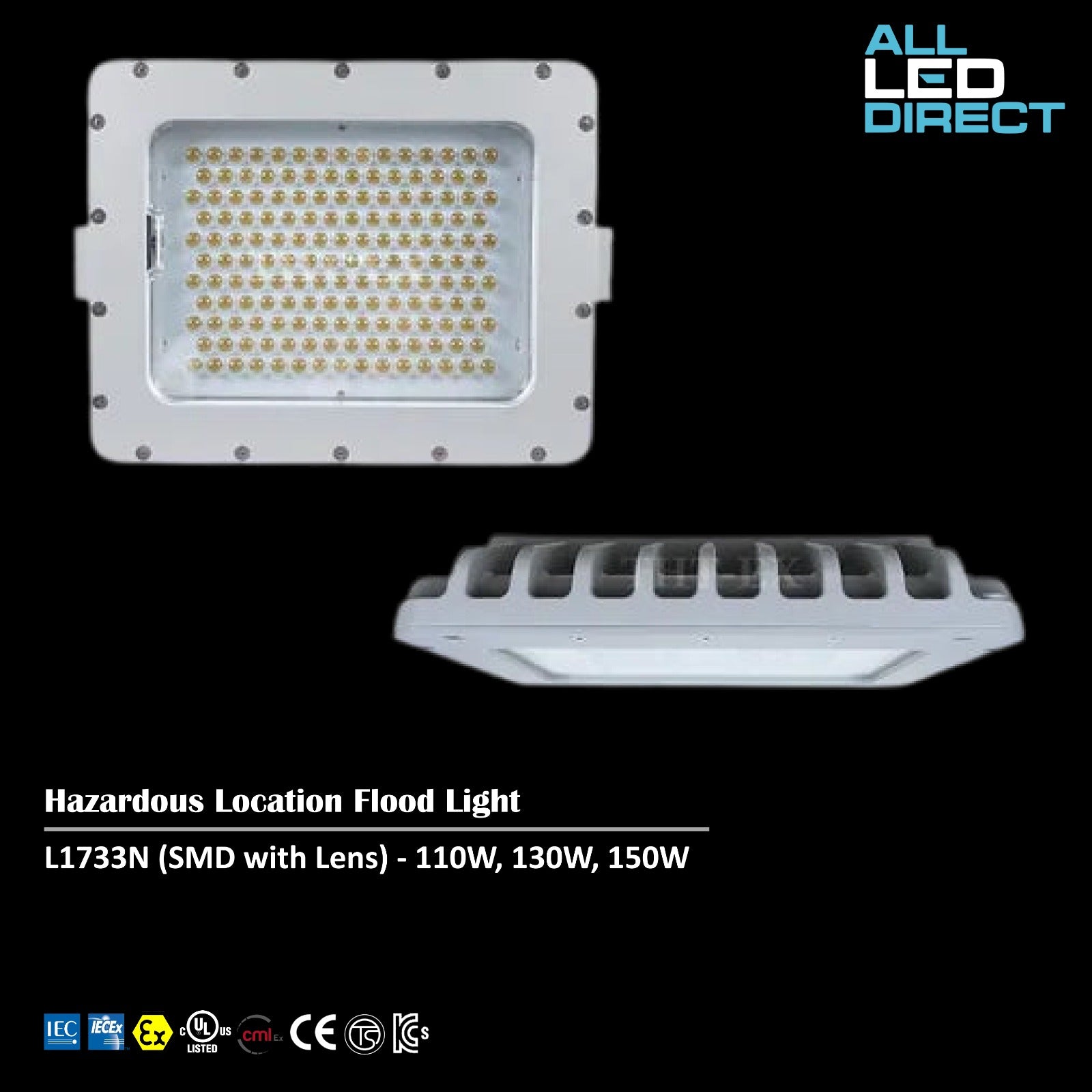

Hazardous Location Flood Light L1733N SMD with Lens

Light Features

• Various wattage for different luemen requirement
• SMD with different angle lens (50?, 60?/90?, 120?) is available upon?reuest
• High luminous efficiency & low conversion loss rate
• Provide safe illumination in hazardous & wet locations

Applicable Location

• Zone 2
• Zone 21 & Zone 22
• Class I, Division 2 (Groups A, B, C and D)
• Class II, Division 2 (Group F and?G)
• Class III

Protection

Degree of Protection - IP67 / NEMA 6

IECEx Certification

• Ex nR IIC T6 Gc
• Ex tb IIIC T85?C Db

ATEX Certification

• II 3 G Ex nR IIC T6 Gc
• II 2 D Ex tb IIIC T85?C Db

UL Certification

• UL844 - Class I, Division 2 (Groups A, B, C and D) / Class II, Division 2 (Group F and?G) / Class III
• UL1598

CML Certification

• Ex nR IIC T6 Gc
• Ex tb IIIC T85?C Db

TS Certification

• Ex nR IIC T6 Gc
• Ex tb IIIC T85?C Db

TISI Certification (Certificate is issuing)

• Ex nR IIC T6 Gc
• Ex tb IIIC T85?C Db

Specification

• Volt.: 100V~277V / 200V~480V?AC (Full Voltage)
• Watt.: 110W / 130W / 150W
• Amps: 110W (0.23A~1.1A) / 130W (0.27A~1.3A) / 150W (0.31A~1.5A)

• Frequency: 50Hz / 60Hz
• Power Factor: cos?0.9

Ambient Information

• -20?C ~ +40?C, T6
• -20?C ~ +40?C, T4A / CIID2: +40?C, T5?(UL Certification)

Optical Information

• CCT : 3000K (Warm White) / 5000K (Cool White)
• CRI : Warm White?80?/ Cool White?70
• Lum/Watt. : ? 110 (Warm White) / ? 110 (Cool White)
