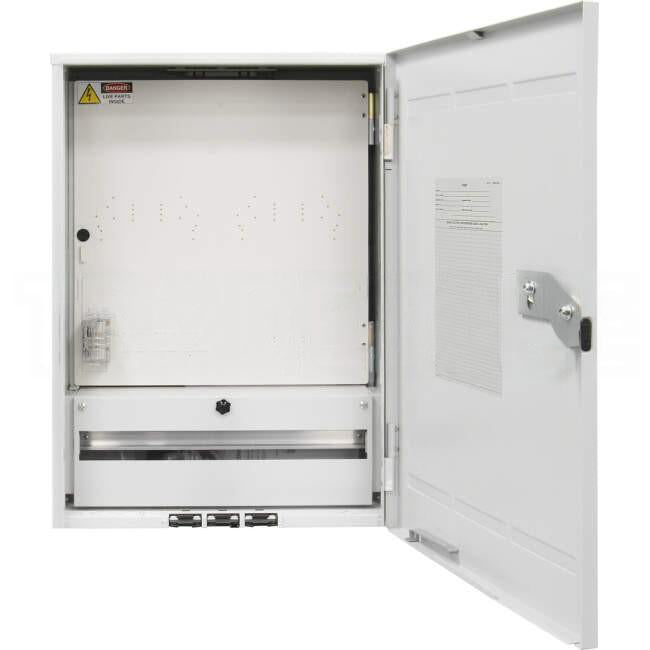

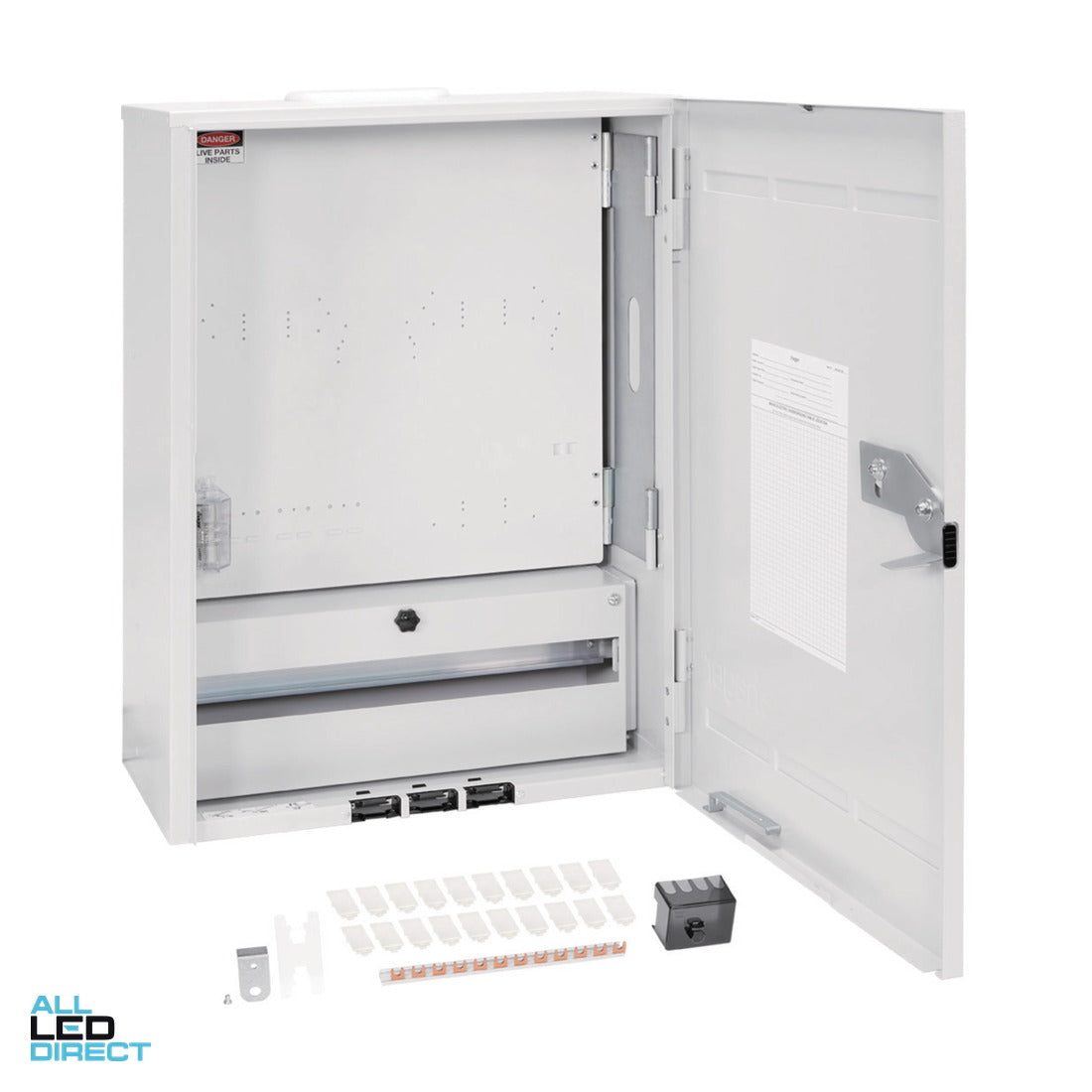

Hager 688mm x 488mm x 278mm 24 Pole DIN QLD Metering Enclosure

The VYMBQ complies with AS/3012 for use as a
temporary supply and is supplied with the clear
service link pre-fitted to the panel.

Supplied with Meter Neutral Cover
(Fits over one RCD link)
1.2m galvanised steel powder coated RAL
276mm deep (75mm behind panel)
Flush door opening mechanism
Full UV stable cable entry cover
Door tab to stop removal of door (AS3012)
Knockout for padlock tab
Gravity door catch
Strong 1.6mm steel hinges
Simple door retainer
Patented cable retainer with close off caps
(for 3 leads)
Rear link position with tie off points
Fixed (but removable) Aluminium DIN (DIN not
included in VYMBQ-P)
Larger top cable entry
Sliding cable entry with easy screw tighten knob

Warranty Information (From Install)

• Commercial Use 2 Years
• Domestic Use 2 Years
• Warranty Method Return to All Led Direct
• Warranty Period 2 Years

Attributes

• Brand Hager
• Part Number -VYMBQ
• Also Known As HAGVYMBQ
• Colour Beige
• Din Rail Size 24 Pole
• Door Hinge Direction Side Hinge
• Group Metering No
• Lockable Padlock
• Single Phase or 3 Phase Single Phase
• State Compliance QLD
• Suitable Number Of Meters 1

Shipping Information

• Weight (kg) 19.0000
• Length (mm) 688
• Height (mm) 287
• Width (mm) 487
• Length Packaging (mm) 727
• Height Packaging (mm) 306
• Width Packaging (mm) 502
• Barcode 3250611005377
