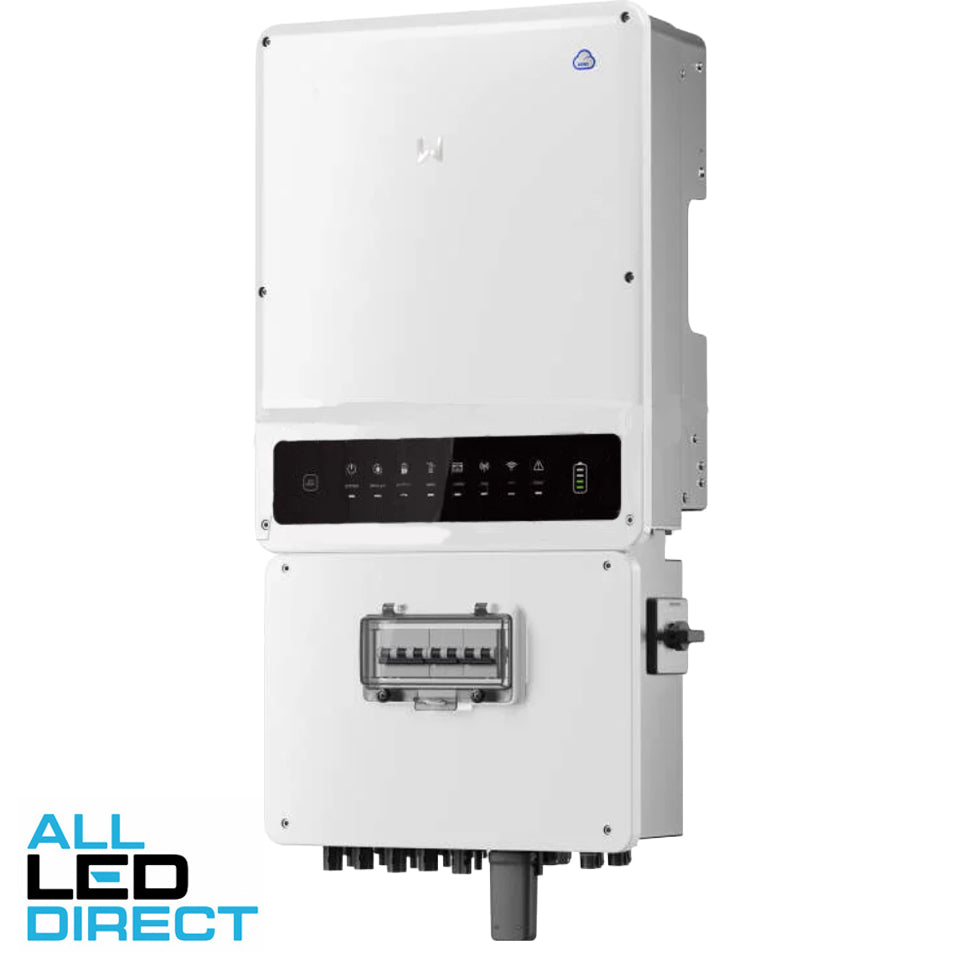

GoodWe 8.6kW EHB SERIES Single Phase Hybrid Solar Inverter 4 MPPT IP65

Tech Data Sheets
Warranty
Product Details
8.6kW Single-Phase Hybrid Inverter
EHB Series
High Capacity. Maximum Flexibility. Future-Ready.
The GoodWe GW8.6K-EHB-AU-G11 is a powerful 8.6kW single-phase hybrid inverter designed for larger residential systems. With 4 independent MPPTs, it offers exceptional design flexibility for complex rooftops. It supports up to 200% PV oversizing (17.2kW), making it ideal for households aiming to maximize solar generation and prepare for future battery integration.
Key Features
8.6kW Single-Phase Output – Suitable for large residential homes or energy-intensive users.
4 MPPTs – Allows for flexible solar array configurations across multiple roof orientations.
200% PV Oversizing – Supports up to 17.2kW of PV input for enhanced energy production.
Battery-Ready – Compatible with high-voltage lithium batteries (80–495V).
Built-In Backup – <10ms switch time ensures uninterrupted power to essential loads during outages.
Smart Monitoring – Real-time data access via GoodWe's SEMS Portal.
Enhanced Safety – Features AFCI and rapid shutdown capabilities.
Quiet Operation – Fanless design for silent performance.
Upgrade your solar power system with the 8.6kW Single-Phase Hybrid Inverter

Attributes:

Brand: GoodWe
Part Number: GW8.6K-EHB-AU-G11
Also Known As: EHB Series
Hybrid: Yes
IP Rating: IP65
Kilowatt Rating (kW): 8.6kW
Series: GoodWe EHB
Single Phase or 3 Phase: Single Phase
Sub Category: Inverters
Freight Levy: Freight Applies To All Postcodes
Weight (kg): 33.0000
Length (mm): 415
Height (mm): 791
Width (mm): 180
Length Packaging (mm): 415
Height Packaging (mm): 791
Width Packaging (mm): 180
Barcode: 2000101044543

Warranty Information:

Warranty Method
Contact Manufacturer
Commercial Use
10 Years
Domestic Use
10 Years
Warranty Period
10 Years

Shipping Information:

Freight Levy: Freight Applies To All Postcodes
