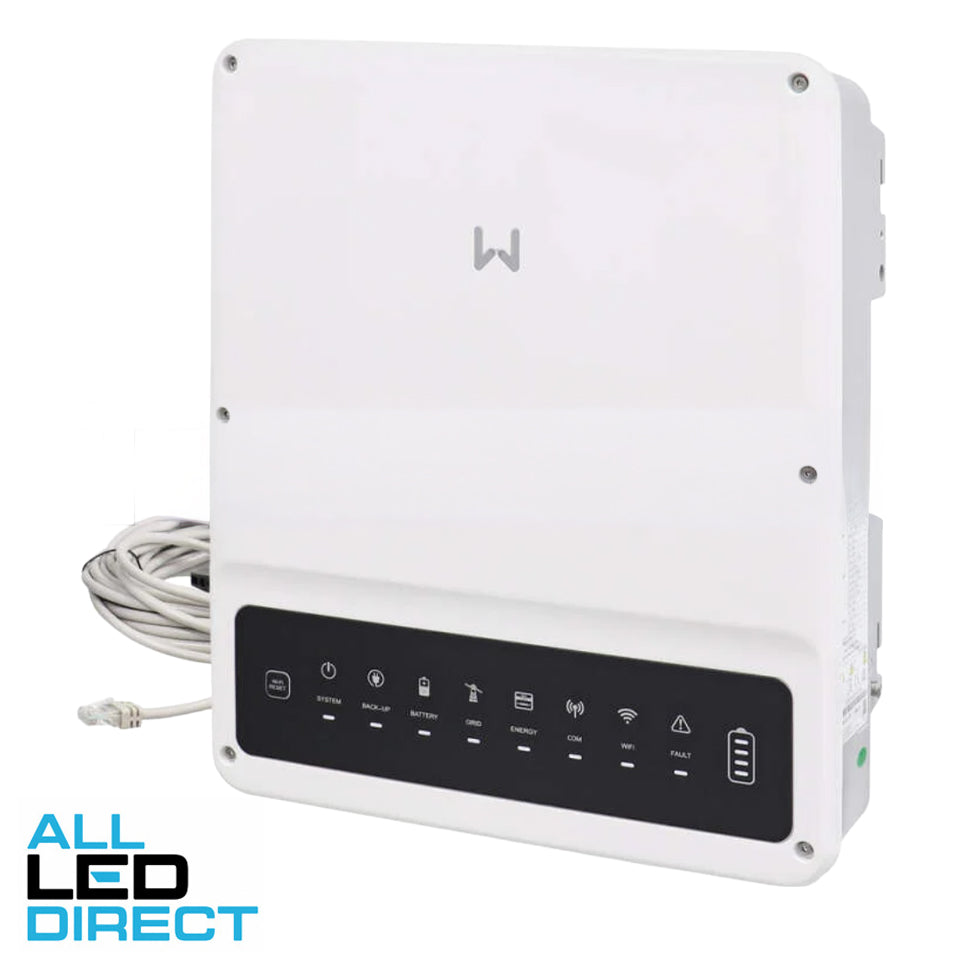

GoodWe 5kW Single Phase EH PLUS SERIES Solar Hybrid Activated Inverter IP65

Tech Data Sheets
Installation Guide
Product Details
GoodWe 5kW Single Phase EH PLUS SERIES Solar Hybrid Activated Inverter IP65 by GoodWe is an energy storage inverter compatible with high voltage Li-Ion batteries ranging from 85 to 460V. The GoodWe GW5000N-EHU5000-03-01P has a 'Battery Ready' design, providing a future-proof solution for users who may want to add battery storage in the future. It is designed as a highly adaptable and flexible option for residential PV systems, with a maximum DC input current of 16A for each string, combining well with high-power PV modules. The GoodWe GW5000N-EHU5000-03-01P features UPS-level switching (switching time <10ms) and peak shaving, ensuring a stable and reliable power supply.
Key Features
Battery Compatibility: Compatible with high voltage Li-Ion batteries ranging from 85 to 460V
Maximum DC Input Current: 16A for each string
UPS-level Switching: Switching time <10ms
Peak Shaving: Ensures a stable and reliable power supply
IP Rating: IP65
Single Phase or 3 Phase: Single Phase
Main Benefits
Future-Proof Solution: Provides a future-proof solution for users who may want to add battery storage in the future
Stable Power Supply: Ensures a stable and reliable power supply through UPS-level switching and peak shaving
Flexible System Design: Allows for a highly flexible system design with compatibility with high voltage Li-Ion batteries
Highly Adaptable: Designed as a highly adaptable and flexible option for residential PV systems

Attributes:

Brand: GoodWe
Part Number: GW5000N-EHU5000-03-02P
Also Known As: 5000N
Hybrid: Yes
IP Rating: IP65
Kilowatt Rating (kW): 5kW
Series: GoodWe EH Plus
Single Phase or 3 Phase: Single Phase
Sub Category: Inverters
Freight Levy: Freight Applies To All Postcodes
Weight (kg): 17.0000
Length (mm): 354
Height (mm): 147
Width (mm): 433
Length Packaging (mm): 454
Height Packaging (mm): 247
Width Packaging (mm): 533
Barcode: 2000100899816

Warranty Information:

Warranty Method
Contact Manufacturer
Commercial Use
10 Years
Domestic Use
10 Years
Warranty Period
10 Years

Shipping Information:

Freight Levy: Freight Applies To All Postcodes
