GoodWe 5kW EHB SERIES Single Phase Hybrid Solar Inverter 3 MPPT IP65

Tech Data Sheets
Warranty
Product Details

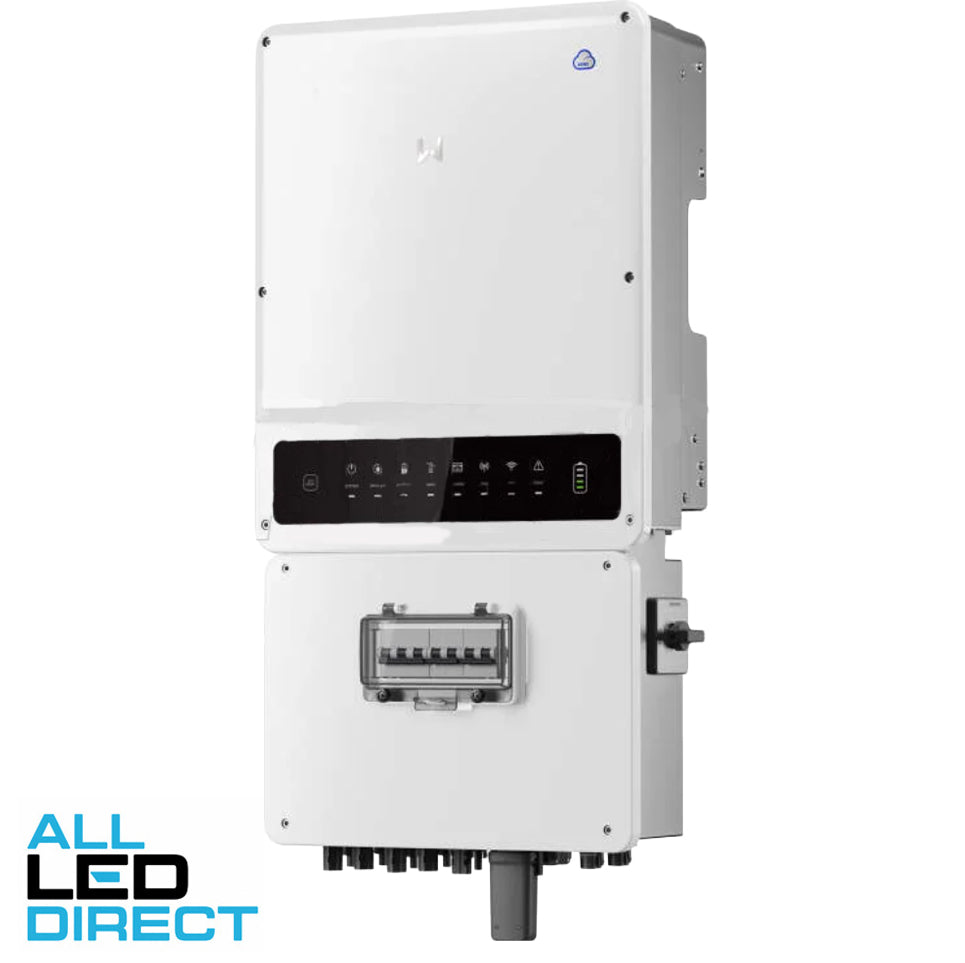

5kW Single-Phase Hybrid Inverter
EHB Series
Smarter Solar. Battery-Ready. Backup Built-In.
The GW5K-EHB-AU-G11 from GoodWe’s EHB Series is a high-performance hybrid inverter built for modern Australian homes. It delivers reliable 5kW single-phase output, advanced battery compatibility, and seamless backup power — all in a compact, installer-friendly unit.
Designed with 3 independent MPPTs, it gives installers maximum flexibility for complex or split-array rooftops. With 200% PV oversizing, high-voltage battery support, and <10ms backup switching, this inverter is built for homes that want more out of solar — now and into the future.
Key Features
5kW Single-Phase Output – Reliable power for most residential installs
3 MPPTs – Flexibility to connect solar across multiple roof orientations
200% PV Oversizing – Connect up to 10kW of panels for bigger performance
Battery-Ready – Compatible with HV batteries (80–495V)
Built-In Backup – <10ms UPS switch time for critical loads
Fanless Cooling – Silent operation and low maintenance
Smart Monitoring – SEMS Portal access via Wi-Fi or optional 4G
Rapid Shutdown & AFCI – Built-in safety compliance for Australian standards

Attributes:

Brand: GoodWe
Part Number: GW5K-EHB-AU-G11
Also Known As: EHB Series
Hybrid: Yes
IP Rating: IP65
Kilowatt Rating (kW): 5kW
Series: GoodWe EHB
Single Phase or 3 Phase: Single Phase
Sub Category: Inverters
Freight Levy: Freight Applies To All Postcodes
Weight (kg): 29.0000
Length (mm): 415
Height (mm): 791
Width (mm): 180
Length Packaging (mm): 415
Height Packaging (mm): 791
Width Packaging (mm): 180
Barcode: 2000101044536
Barcode (Secondary): Naf5000-01-00p

Warranty Information:

Warranty Method
Contact Manufacturer
Commercial Use
10 Years
Domestic Use
10 Years
Warranty Period
10 Years

Shipping Information:

Freight Levy: Freight Applies To All Postcodes
