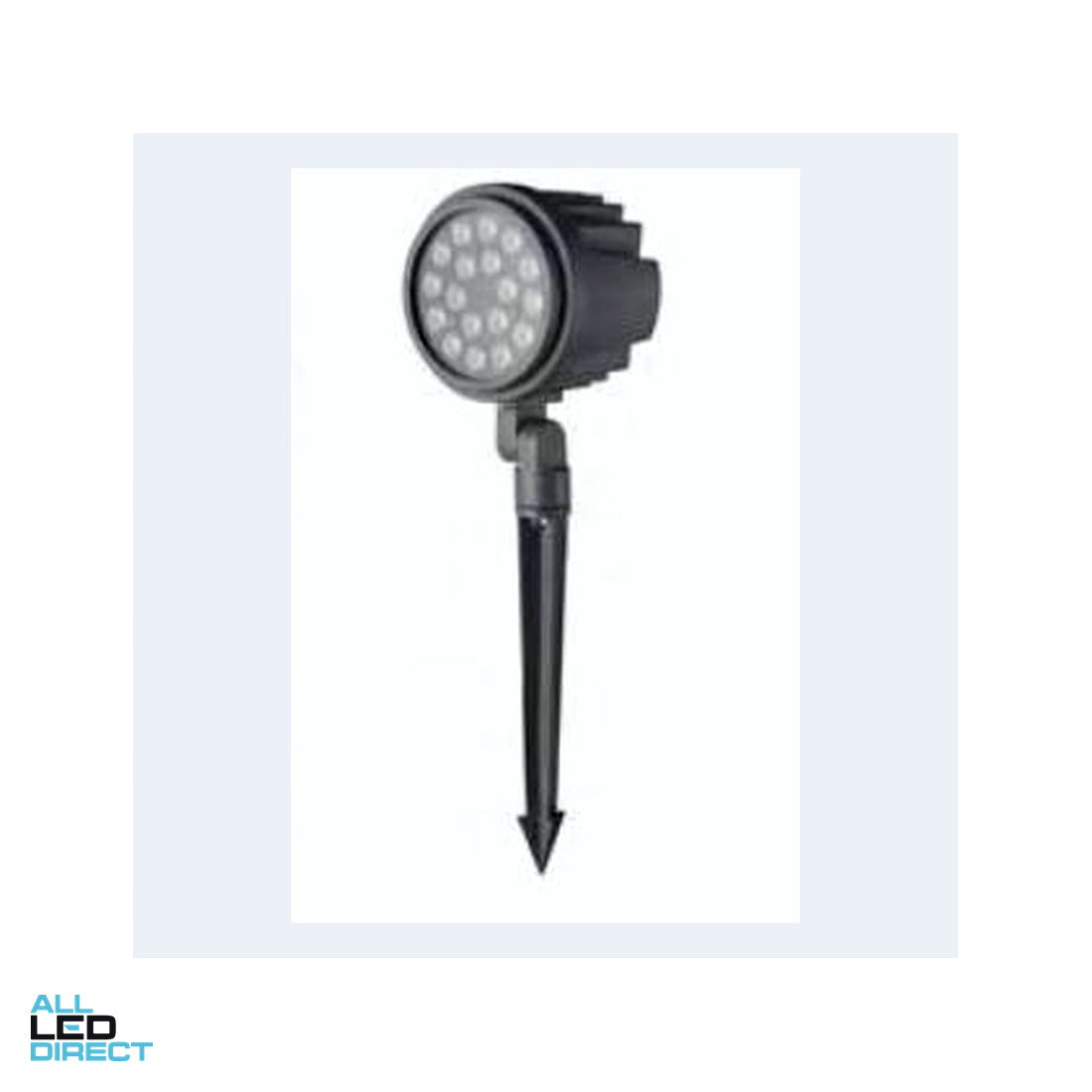

10W garden spike light IP66

Garden spike 10 W LED. IP66. Pivot. Spike 24 V DC.

Quote via info@alledirect.com. Australia.

Datasheet ALD-Garden-Spike-10W-ALDR18 Rev A.

Electrical
Rated voltage
24 V DC
System power
10 W
Ambient ta
−20 to +45 °C
Switch type
Inline

Optical
System lumens
1100 lm
Efficacy
110 lm/W
CCT
3000 / 4000 K
CRI
>80
Beam
60°
LED package
COB
Colour name
Warm white / Cool white

Mechanical
Body
Aluminium, powder coated
Diffuser
Polycarbonate
Finishes
Black, grey
Installation
Spike / surface (ground)
Adjustability
Pivot
IP rating
IP66
Diameter × height
Ø 105 × 220 mm

Driver
Type
Dimmable (Phase cut) DALI
Driver included
Yes, remote (integrated = NO)
Driver RCM
RCM marked (driver only)

Standards
AS/NZS 60598.1, AS/NZS 60598.2.1, AS/NZS CISPR 15

Warranty Information
Commercial Use
5 years return-to-base
Domestic Use
5 years return-to-base
Warranty Method
Return-to-base
Warranty Period
5 years

Attributes
Brights
Part Number
ALDR18
Wattage
10 Watt
