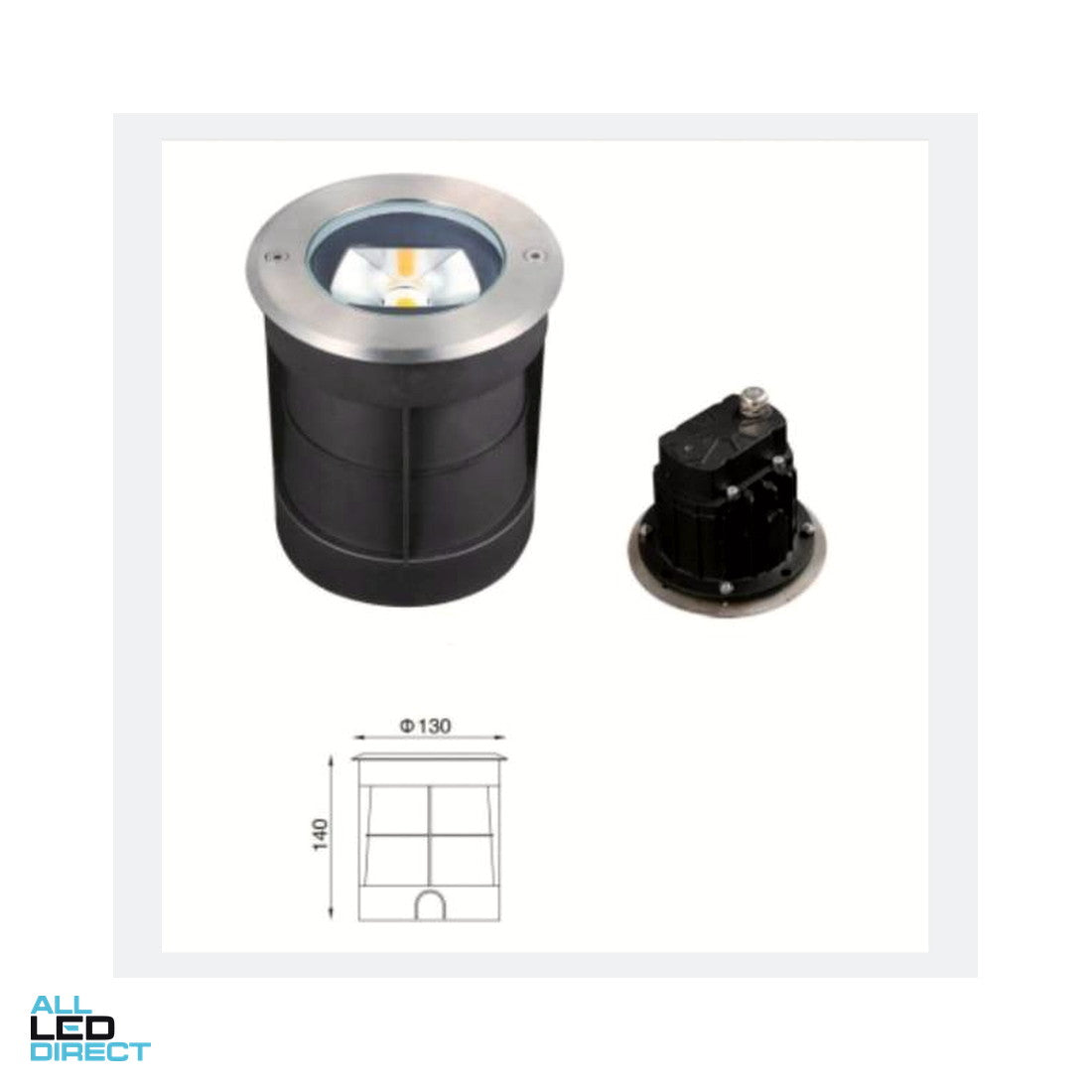

7W inground garden light IP66

Garden inground 7 W LED. IP66. Inground stainless.

Quote via info@alledirect.com. Australia.

Datasheet ALD-Garden-Inground-7W-SS Rev A.

Electrical
Rated voltage
230 V ac
Frequency
50 Hz
Australian supply range
216–253 V ac
System power
7 W
Electrical class
Class I
Ambient ta
−20 to +45 °C
Switch type
Inline

Optical
System lumens
700 lm
Efficacy
100 lm/W
CCT
3000 / 6000 K
CRI
>80
Beam
10°
LED package
COB
Colour name
Warm white / Cool white

Mechanical
Body
Stainless steel
Diffuser
Polycarbonate
Finishes
Stainless
Installation
Recessed in ground
IP rating
IP66
Diameter × height
Ø 130 × 140 mm

Driver
Type
Dimmable (Phase cut)
Driver included
Yes, remote (integrated = NO)
Wiring
Rewireable 3-pin terminal
Driver RCM
RCM marked (driver only)

Standards
AS/NZS 60598.1, AS/NZS 60598.2.1, AS/NZS 60598.2.2, AS/NZS CISPR 15

Warranty Information
Commercial Use
5 years return-to-base
Domestic Use
5 years return-to-base
Warranty Method
Return-to-base
Warranty Period
5 years

Attributes
Brights
Part Number
ALD-Garden-Inground-7W-SS
Wattage
7 Watt

Shipping Information
Weight (kg)

Length Packaging (mm)

Height Packaging (mm)

Width Packaging (mm)
