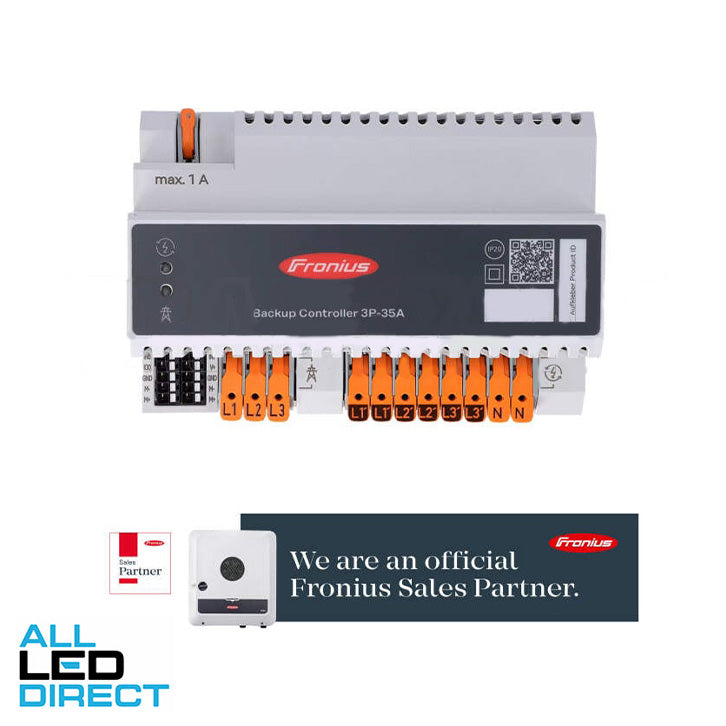

Fronius 35 Amp Three Phase Backup Controller

Tech Data Sheets
Installation Guide
Warranty
Product Details
The Fronius 35 Amp Three Phase Backup Controller by Fronius is a fixed piece of equipment designed for use in public grids with TN-C-S/TN-S systems. Its main function is to automatically and securely disconnect all connected loads and generators from the public grid in the event of a grid failure or grid malfunction in accordance with the specifications of the grid operator. The Fronius P-FRO-BACKUP-CONTROLLER is required for systems with storage batteries to enable automatic backup power switching. It can be installed either on an indoor DIN rail or in special enclosures with corresponding IP protection, depending on the environmental conditions. See more about the Backup controller at Fronius
Key Features
Application: The Fronius Backup Controller is required for systems with storage batteries to enable automatic backup power switching
Installation: Installed either on an indoor DIN rail or in special enclosures with corresponding IP protection, depending on the environmental conditions
Safety precautions: In conjunction with a Fronius Smart Meter, corresponding back-up fuses must be selected to suit the cable cross-sections of the copper conductors and the maximum current of the Fronius Backup Controller
Intended use: The Fronius Backup Controller must only be operated in accordance with the specifications in the enclosed documentation and in accordance with local laws, regulations, provisions, standards and within the limits of technical possibilities
Main Benefits
Automatic Backup Power Switching: Enables automatic backup power switching for systems with storage batteries
Grid Failure Protection: Automatically and securely disconnects all connected loads and generators from the public grid in the event of a grid failure or grid malfunction
Flexible Installation: Can be installed either on an indoor DIN rail or in special enclosures with corresponding IP protection, depending

Attributes:

Brand: Fronius
Part Number: P-FRO-BACKUP-CONTROLLER
Amperage Range: 35 Amps
Single Phase or 3 Phase: 3 Phase
Sub Category: Controller

Weight (kg): 0.6250
Length (mm): 144
Height (mm): 100
Width (mm): 65.6
Length Packaging (mm): 144
Height Packaging (mm): 100
Width Packaging (mm): 66
Barcode: 2000101025016
Barcode (Secondary): 9007947651495
Barcode (Tertiary): 01090079474125222135359159

Warranty Information:

Warranty Method
Contact Fronius Support 1300 651 137 - Please note: ALL LED DIRECT is under strict requirements from the manufacture to not accept any returns for this product unless we have prior written approval.
Commercial Use
5 Years
Domestic Use
5 Years
Warranty Period
5 Years
