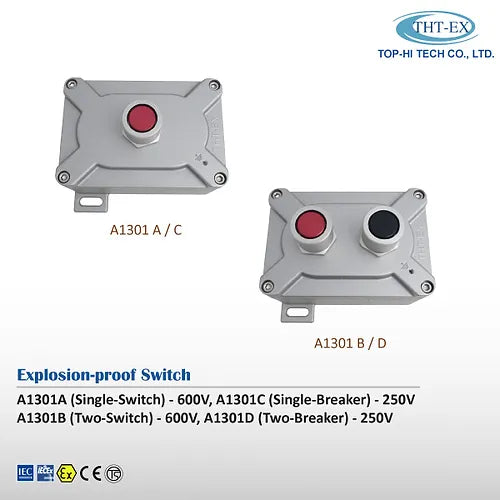

Explosion-proof Switch A1301 A/B/C/D use with PLC

Applicable Location

• Zone 1 & Zone 2
• Zone 21 & Zone 22

Protection

Degree of Protection - IP6X

IECEx Certification

• Ex db IIC T6 Gb
• Ex tb IIIC T85°C Db

ATEX Certification

• II 2 G Ex db IIC T6 Gb
• II 2 D Ex tb IIIC T85°C Db

TS Certification

• Ex db IIC T6 Gb
• Ex tb IIIC T85°C Db

Specification

• Volt.

1. A1301A: 600V(Single-Switch)
2. A1301C: 250V(Single-Breaker)
3. A1301B: 600V(Two-Switch)
4. A1301D: 250V(Two-Breaker)

• Current Capacity

1. 10A, 28~14 AWG (Switch)
2. 3~20A, 28~12 AWG (Breaker)

• Material

1. Enclosure: Aluminum alloy
2. Sealing Gasket: Silicone

Ambient Temperature

• -40°C ~ +55°C
