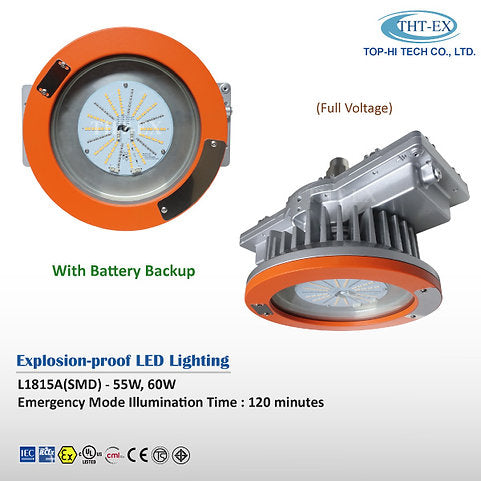

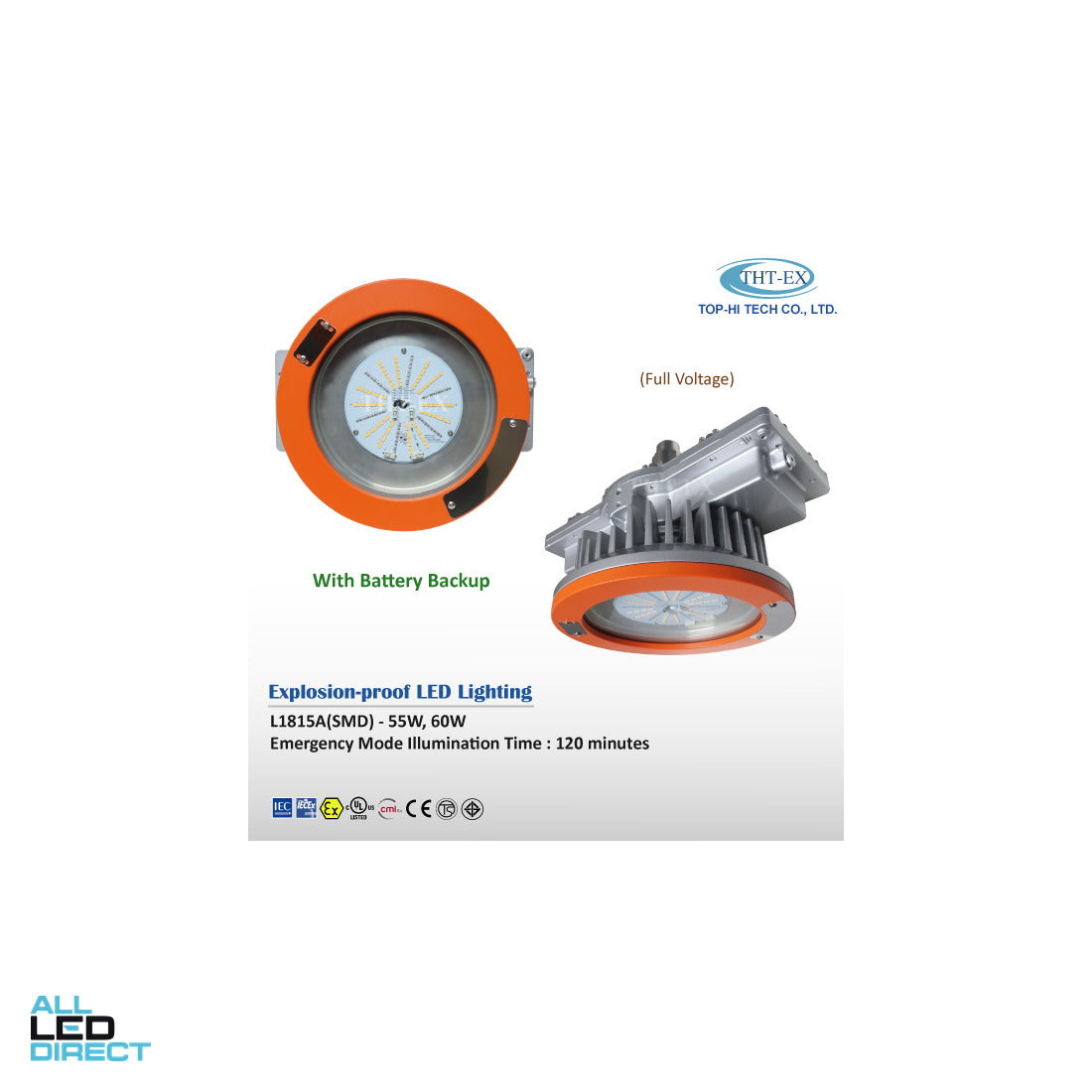

Explosion-proof LED Light with Battery Backup L1815A SMD

Light Features

• Provide up to 120 mins emergency lighting
• Provide safe illumination in hazardous & wet locations

Applicable Location

• Zone 1 & Zone 2
• Zone 21 & Zone 22
• Class I, Division 1 (Groups B, C and D)
• Class I, Division 2 (Groups A, B, C and D)
• Class II, Division 1 (Groups E, F and G)
• Class III

Protection

Degree of Protection - IP67 / NEMA 6

UL Certification

• UL844 - Class I, Division 1 (Groups B, C and D) / Class I, Division 2 (Groups A, B, C and D) / Class II, Division 1 (Groups E, F and G) / Class III
• UL1598

IECEx Certification

• Ex db IIC T6 Gb
• Ex tb IIIC T80?C Db

ATEX Certification

• II 2 G Ex db IIC T6 Gb
• II 2 D Ex tb IIIC T80?C Db

CML Certification

• Ex db IIC T6 Gb
• Ex tb IIIC T80?C Db

TS Certification

• Ex db IIC T6 Gb
• Ex tb IIIC T80?C Db

TISI Certification (Certificate is issuing)

• Ex db IIC T6 Gb
• Ex tb IIIC T80?C Db

Specification

• Volt.(?10%): 100V~277V(55W) / 120V~277V(60W) AC (Full Voltage)
• Total System Power Consumption(+10%): 55W, 60W
• Amps: 0.20A~0.55A

• Frequency: 50Hz / 60Hz
• Power Factor: cos?0.9
• Emergency mode output wattage: 40W
• Charging time: 48 hours
• Emergency mode illumination time: 120 minutes

*When the fixture is not in use, please charge 48 hours every month to maintain the battery's performance.

Ambient Temperature

• 0?C ~ +40?C, T6 (IECEx&ATEX Certification)
• -20?C ~ +40?C, T4A (UL Certification)

Optical Information

• CCT : 3000K (Warm White) / 5000K (Cool White)
• CRI : Warm White?80?/ Cool White?70
• Lum/Watt. : ? 65 (Warm White) / ? 73?(Cool White)
• Beam Angle : X-110? / Y-110?
