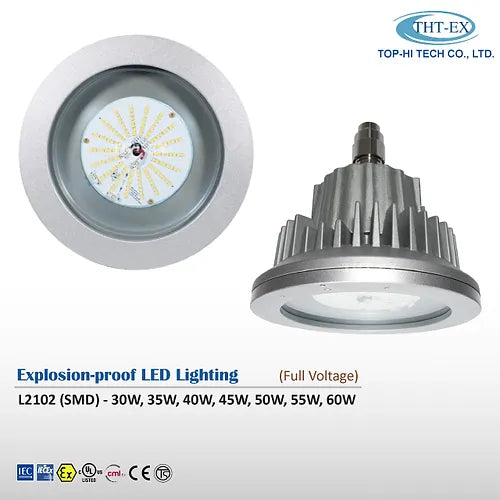

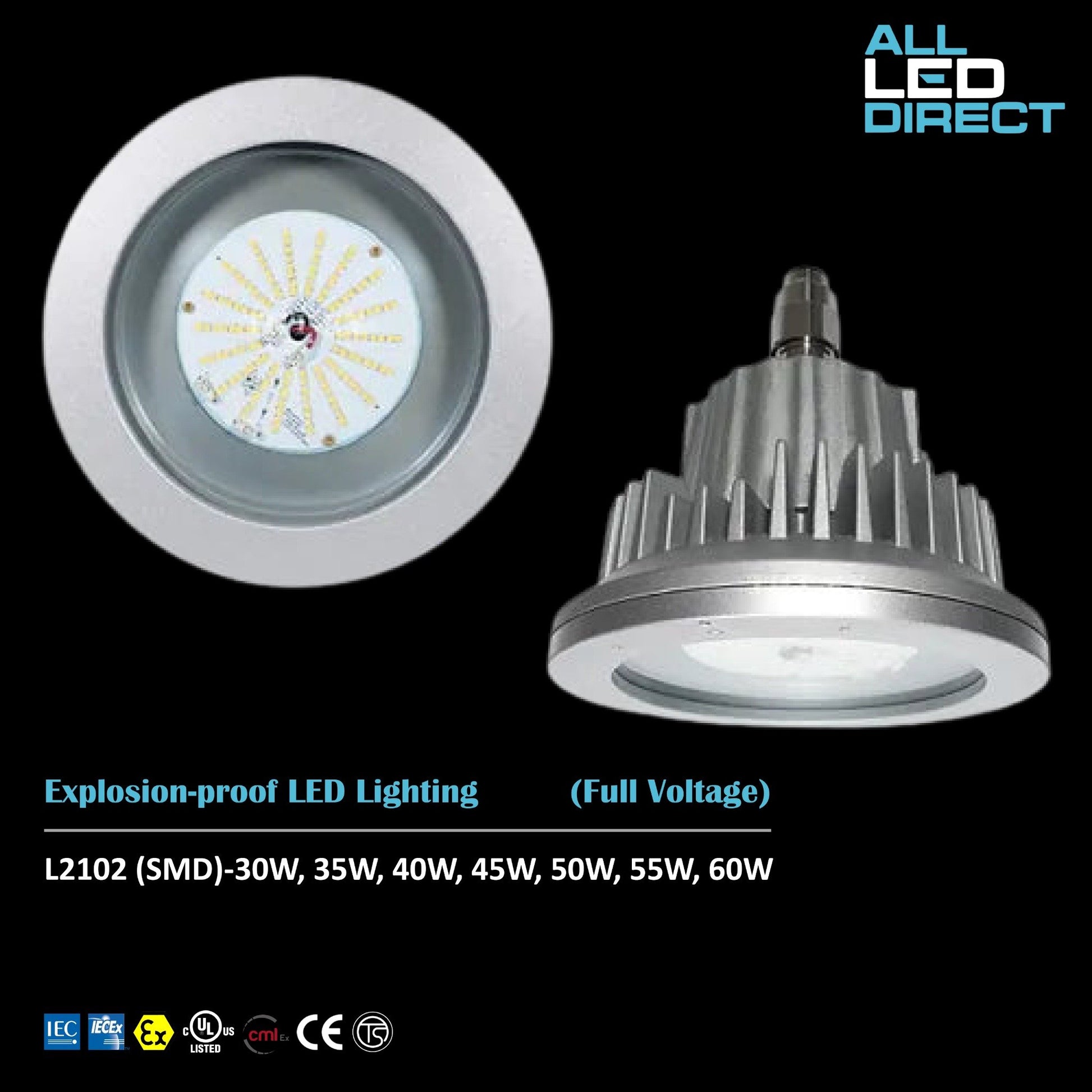

Explosion-proof LED Light L2102 SMD

Light Features

• Full Voltage Explosion-proof LED Lighting for Zone 1
• Perfect for hazardous, heavy industrial and wet locations
• Compact size & lightweight 40% less than conventional lighting

Applicable Location

• Zone 1 & Zone 2
• Zone 21 & Zone 22
• Class I, Division 1 (Group B, C and D)

Protection

Degree of Protection - IP67 / NEMA 6

IECEx Certification

• Ex db IIC T6 Gb
• Ex tb IIIC T85°C Db

ATEX Certification

• II 2 G Ex db IIC T6 Gb
• II 2 D Ex tb IIIC T85°C Db

UL Certification

• UL844 - Class I, Division 1 (Group B, C, D)
• UL1598

TS Certification

• Ex db IIC T6 Gb
• Ex tb IIIC T85°C Db

CML Certification

• Ex db IIC T6 Gb
• Ex tb IIIC T85°C Db

Specification

• Volt.: 100V~277V AC / 125V DC
• Watt.: 30W / 35W / 40W / 45W / 50W / 55W / 60W
• Amps: Vac-0.11A~0.60A / Vdc-0.24A~0.48A
• Frequency: 50Hz / 60Hz
• Power Factor: cos≧0.9

Ambient Temperature

• -20°C ~ +40°C, T6 / -20°C ~ +50°C, T6

Optical Information

• CCT : 3000K (Warm White) / 5000K (Cool White)
• CRI : Warm White≧80 / Cool White≧70
• Lum/Watt. (±10%) : 145 lm/w
