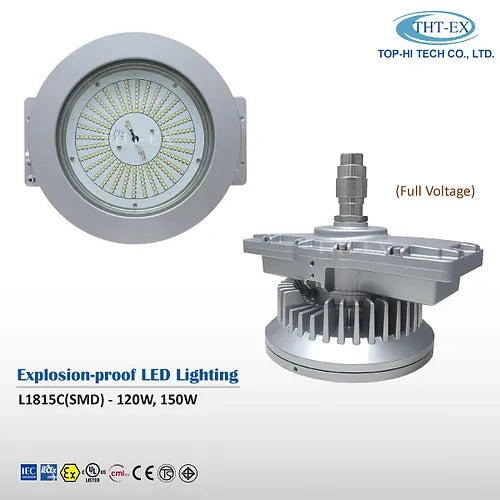

Explosion-proof LED Light L1815C SMD

Light Features

• 150W high power lighting
• High luminous efficiency
• Provide safe illumination in hazardous & wet locations

Applicable Location

• Zone 1 & Zone 2
• Zone 21 & Zone 22
• Class I, Division 1 (Groups B, C and D)
• Class I, Division 2 (Groups A, B, C and D)
• Class II, Division 1 (Groups E, F and G)
• Class III

Protection

Degree of Protection - IP67 / NEMA 6

UL Certification

• UL844 - Class I, Division 1 (Groups B, C and D) / Class I, Division 2 (Groups A, B, C and D) / Class II, Division 1 (Groups E, F and G) / Class III
• UL1598

IECEx Certification

• Ex db IIC T5 Gb
• Ex tb IIIC T100°C Db

ATEX Certification

• II 2 G Ex db IIC T5 Gb
• II 2 D Ex tb IIIC T100°C Db

CML Certification

• Ex db IIC T5 Gb
• Ex tb IIIC T100°C Db

TS Certification

• Ex db IIC T5 Gb
• Ex tb IIIC T100°C Db

TISI Certification (Certificate is issuing)

• Ex db IIC T5 Gb
• Ex tb IIIC T100°C Db

Specification

• Volt.: 100V~277V / 200V~480V AC (Full Voltage)
• Watt.: 120W / 150W
• Amps: 120W(0.25A~1.20A) / 150W(0.31A~1.50A)

• Frequency: 50Hz / 60Hz
• Power Factor: cos≧0.9

Ambient Temperature

• -20°C ~ +40°C, T5 (IECEx&ATEX Certification)
• -20°C ~ +40°C, T4 (UL Certification)

Optical Information

• CCT : 2700K (Warm White) / 6500K (Cool White)
• CRI : Warm White≧78 / Cool White≧70
• Lum/Watt. : ≧ 120 (Warm White) / ≧ 127 (Cool White)
• Beam Angle : X-110° / Y-110°
