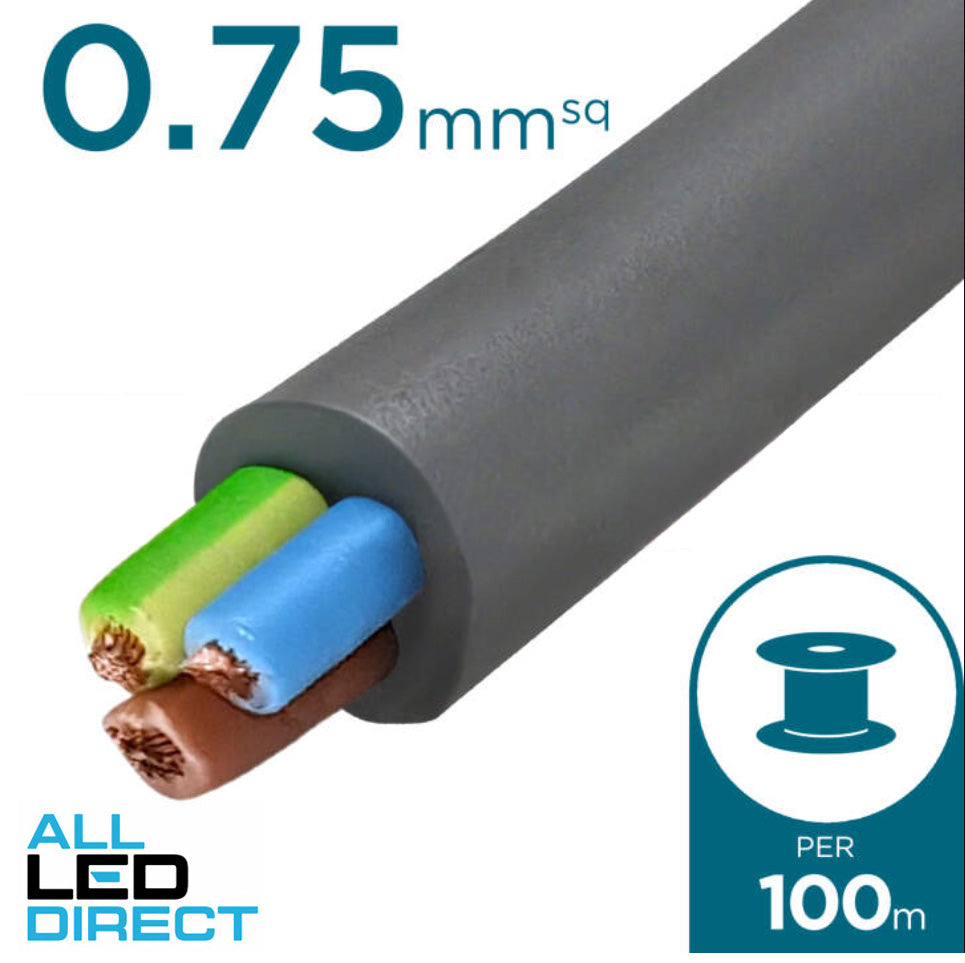

Electra 0.75mm 3 Core Ordinary Duty Flex Cable Grey 100 Metre Drum

Design: Unarmoured for straightforward handling
Configuration: 3 core
Conductor Type: 0.75 mm annealed copper
Voltage Rating: 0.6/1 kV applications
Stranding: 7/0.5 mm strands
Earth Conductor: 1.5 mm included
Overall Diameter: 16.5 mm
Insulation Thickness: 0.8 mm
Sheath Thickness: 1.8 mm
Material: PVC insulation and sheath
Core Identification: Numbered for easy reference
Sheath Colour: Grey for a professional appearance
Temperature Rating: Operates up to 90 °C
Compliance: Meets AS/NZS 5000.1 standards
This cable offers an excellent combination of flexibility, durability, and safety, making it a valuable choice for electrical contractors
Warranty Information
Warranty Method
Return to ALL LED DIRECT
Commercial Use
1 Year
Domestic Use
1 Year
Warranty Period
1 Year
Attributes
Brand
Electra Cables
Part Number
F3075-100-GY
Also Known As
3c
3 Core
3c flex
3 core flex
Triple Core
0.75mm flex
0.75mm 3c flex
2.5mm 3 core flex
0.75mm3C
Cable Conductor Material
Annealed Copper
Cable Core Colours
Brown, Blue & Earth
Cable Drum Length
100 Metres
Cable Insulation & Sheath Material
PVC
Cable Sheath Colour
Grey
Cable Size mm
0.75mm
Cable Voltage
250/440 Volts
Drum Large Max

Attributes:

Brand: Electra Cables
Part Number: F3075-100-GY
Also Known As: 3c 3 Core 3c flex 3 core flex Triple Core 0.75mm flex 0.75mm 3c flex 2.5mm 3 core flex 0.75mm3C
Cable Conductor Material: Annealed Copper
Cable Core Colours: Brown, Blue & Earth
Cable Drum Length: 100 Metres
Cable Insulation & Sheath Material: PVC
Cable Sheath Colour: Grey
Cable Size mm: 0.75mm
Cable Voltage: 250/440 Volts
Number of Cores: 3
Ordinary or Heavy Duty: Ordinary Duty
Sub Category: Flexible Cable
Freight Levy: Freight Free on ALL LED DIRECT Couriers for orders over $500
Weight (kg): 6.3000
Length (mm): 230
Height (mm): 180
Width (mm): 230
Length Packaging (mm): 230
Height Packaging (mm): 180
Width Packaging (mm): 230
Barcode: 9318229013222
