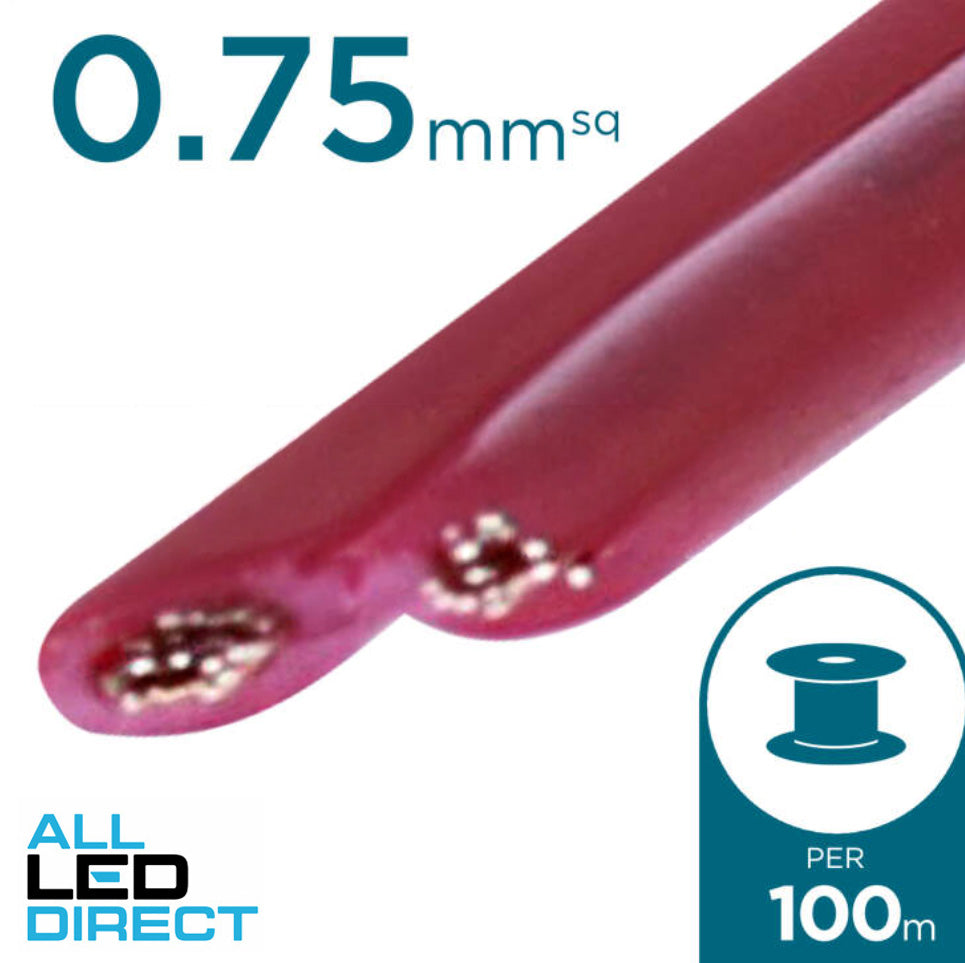

Electra 0.75mm 2 Core Figure 8 Security Cable Red & Black 100 Metre Drum

The Electra 0.75mm 2 Core Figure 8 Security Cable is expertly designed for security systems, control and communications equipment, as well as access control and monitoring applications. Featuring high-quality plain annealed copper conductors, this cable ensures reliable signal transmission with minimal loss. Encased in durable PVC insulation and sheath, it is built to withstand various installation environments while maintaining optimal performance. With a generous 100-meter length, this cable offers flexibility and convenience for both residential and commercial projects.
Technical Features:
Conductor Type: Plain annealed copper, compliant with AS1125 for excellent conductivity
Insulation & Sheath Material: PVC V75, adhering to AS3808 standards for enhanced durability
Voltage Rating: Suitable for 100V DC or 32V AC applications
Pack Length: 100 metres, ideal for large-scale installations
Caution: Extra low voltage; not intended for direct connection to mains power supply
Dimensions: 0.75mm², 24/0.20 stranding, with an overall diameter of 5.1 x 2.6mm
Insulation Thickness: 0.7mm for robust performance
Current Rating: 7.5A, ensuring reliable operation across various applications
Warranty Information
Warranty Method
Return to ALL LED DIRECT
Commercial Use
1 Year
Domestic Use
1 Year
Warranty Period
1 Year
Attributes
Brand
Electra Cables
Part Number
SEC2875-100R/BL
Cable Conductor Material
Plain Annealed Copper Wire
Cable Core Colours
Numbered
Cable Drum Length
100 Metres
Cable Insulation & Sheath Material
PVC
Cable Sheath Colour
Red
Cable Size mm
0.75mm
Cable Voltage
0.6/

Attributes:

Brand: Electra Cables
Part Number: SEC2875-100R/BL
Cable Conductor Material: Plain Annealed Copper Wire
Cable Core Colours: Numbered
Cable Drum Length: 100 Metres
Cable Insulation & Sheath Material: PVC
Cable Sheath Colour: Red
Cable Size mm: 0.75mm
Cable Voltage: 0.6/1kV
Number of Cores: 2
Sub Category: Figure 8 Cable
Freight Levy: Freight Free on ALL LED DIRECT Couriers for orders over $500
Weight (kg): 2.4450
Length Packaging (mm): 205
Height Packaging (mm): 300
Width Packaging (mm): 205
Barcode: 2000101005971
