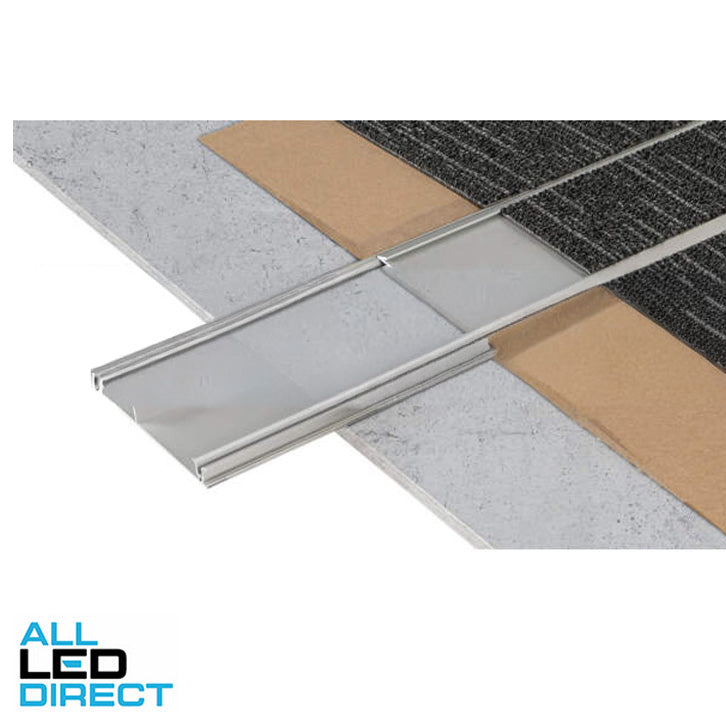

ECD Low Profile Floor Duct Carpet Ramp

Fully accessible floor duct system suitable for commercial, education and retail applications where chasing of trenches in the concrete floor is not possible or is cost prohibitive.
Used for reticulation of cables/services to isolated locations within a room/space.
Suited to flexible floor finishes like carpet.
Extruded aluminium duct body with clip on duct cover for easy cable access.
Segregated to suit multiple services including power, data, comms, with offset barrier for greater data/comms capacity.
Extruded aluminium duct covers are suitable for foot traffic.
Flooring recess in lid for concealed installation, while still being able to identify duct position for easy access. Cover and recessed flooring are removed together.
Carpet ramps on each side of the duct can be covered with floor finish (eg- carpet) for a neat & concealed installation.
Carpet ramp dimensions comply with AS/NZS1428.1 clause 10.5 Threshold Ramps to provide ease of accessibility (wheelchairs, etc.).
90 degree bend kits available in left and right hand configurations to assist with easy on site installation.
Wall and skirting kits available for easy transition of cables into the duct body.
Compatible with a range of ECD standard surface mount floor boxes and Umbilicals.
This product has been examined in accordance with AS3000 and A.C.M.A. requirements.
Warranty Information
Warranty Method
Return to ALL LED DIRECT
Commercial Use
1 Year
Domestic Use
1 Year
Warranty Period
1 Year
Attributes
Brand
Electric Cable Duct Systems
Part Number
FDCR
Sub Category
Skirting Duct Accessories
Weight (kg)
0.0000
Length (mm)
1200

Attributes:

Brand: Electric Cable Duct Systems
Part Number: FDCR
Sub Category: Skirting Duct Accessories
Weight (kg): 0.0000
Length (mm): 1200
Height (mm): 22
Width (mm): 130
Length Packaging (mm): 1200
Height Packaging (mm): 22
Width Packaging (mm): 130
Barcode: 2000101024958
