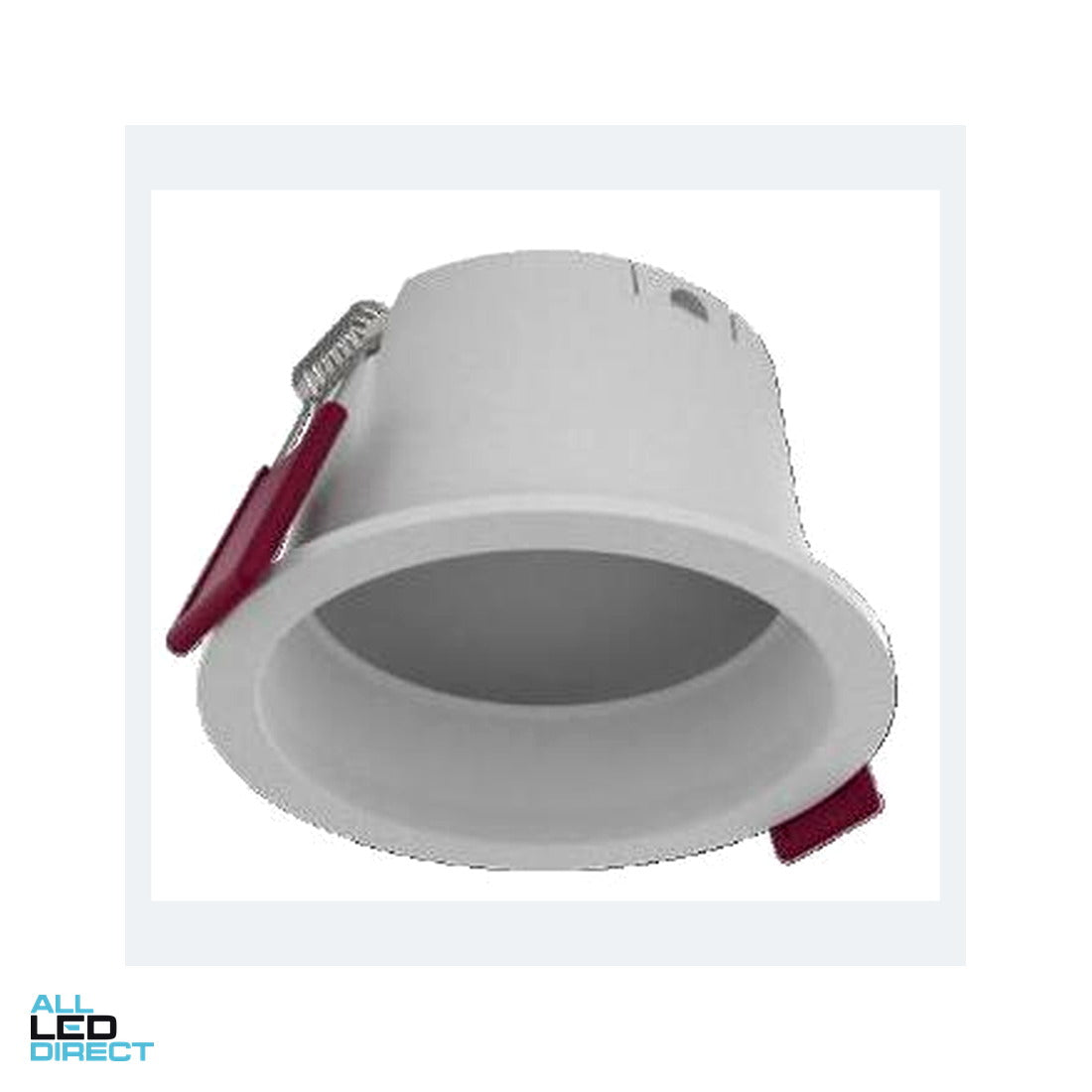

15W downlight IP44

15 W downlight LED. IP44. Recessed indoor commercial.

Quote via info@alledirect.com. Australia.

Datasheet ALD-RDL24SMD-15W-IP44 Rev A.

Electrical
Rated voltage
230 V ac
Frequency
50 Hz
Australian supply range
216–253 V ac
System power
15 W
Electrical class
Class I
Ambient ta
−20 to +45 °C
Switch type
Inline

Optical
CCT
3000 / 6000 K
CRI
>90
Beam
60°
LED package
SMD
Colour name
Warm white / Cool white

Mechanical
Body
Aluminium, powder coated
Diffuser
Polycarbonate
Finishes
Black, matt white
Installation
Recessed
Adjustability
Fixed
IP rating
IP44
Diameter × height
Ø 102 × 52 mm

Driver
Type
Dimmable (Phase cut)
Driver included
Yes, integrated
Wiring
Rewireable 3-pin terminal
Driver RCM
RCM marked (driver only)

Standards
AS/NZS 60598.1, AS/NZS 60598.2.2, AS/NZS CISPR 15

Warranty Information
Commercial Use
5 years return-to-base
Domestic Use
5 years return-to-base
Warranty Method
Return-to-base
Warranty Period
5 years

Attributes
Brights
Part Number
RDL24SMD
Wattage
15 Watt

Shipping Information
Weight (kg)

Length Packaging (mm)

Height Packaging (mm)

Width Packaging (mm)
