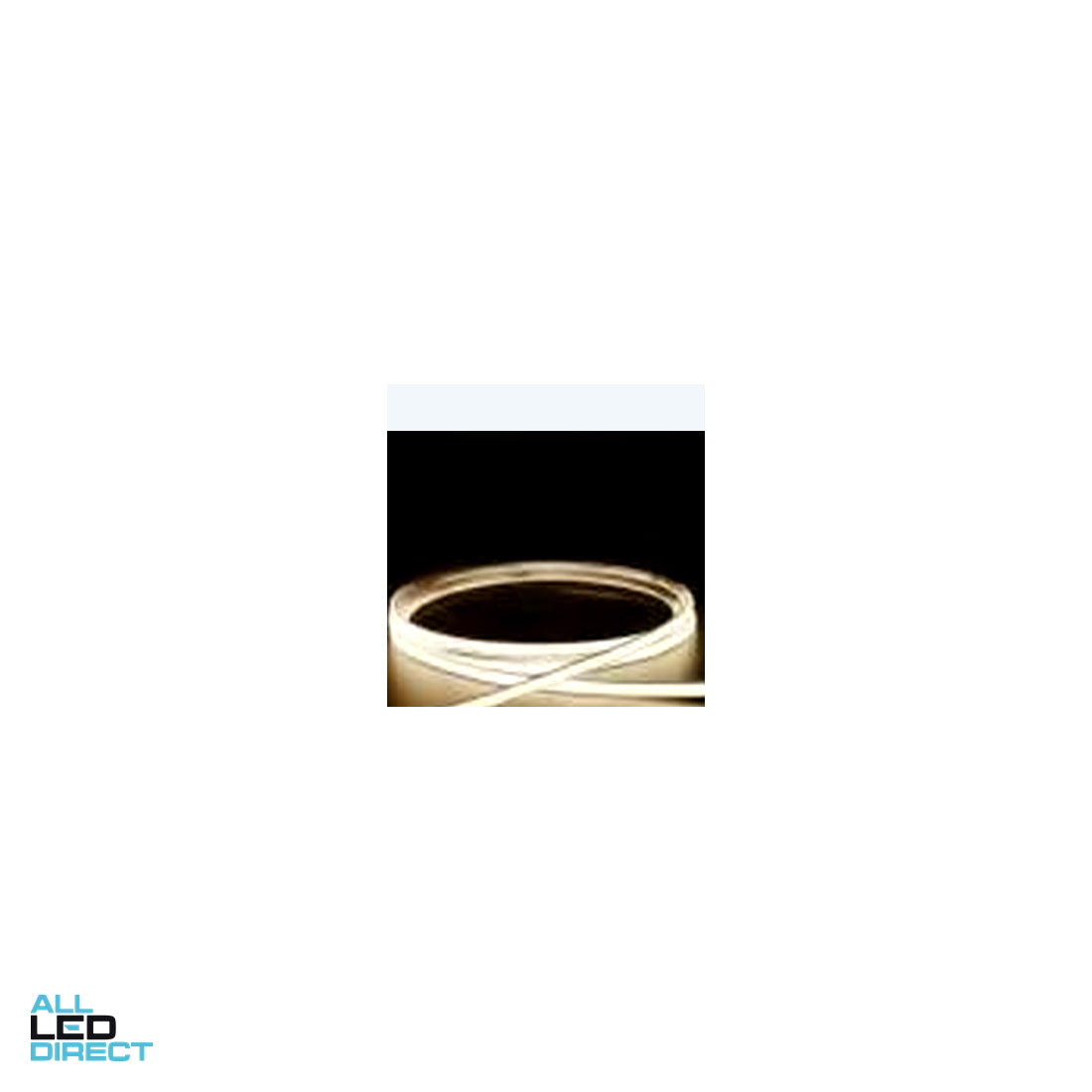

12W/m dot-free LED strip

Dot-free COB strip 12 W/m LED. IP65 / IP66. Strip COB 24 V DC.

Quote via info@alledirect.com. Australia.

Datasheet ALD-DotFree-Strip-12Wm-120deg Rev A.

Electrical
Rated voltage
24 V DC
System power
12 W/m
Ambient ta
−20 to +45 °C
Switch type
Inline

Optical
System lumens
100 /m
CCT
3000 / 4000 K
CRI
>80
Beam
120°
LED package
COB
Colour name
Warm white / Cool white; RGB / PIXEL

Mechanical
Body
Copper / silicone
Diffuser
Silicone, clear
Finishes
Clear, amber chip
Installation
Surface mount
Adjustability
Fixed
IP rating
IP65 / IP66
Section
10 × 4 mm

Driver
Type
Dimmable
Driver included
No (remote)
Wiring
Rewireable
Driver RCM
RCM marked (driver only)

Standards
AS/NZS 60598.1, AS/NZS 60598.2.20, AS/NZS 60598.2.21, AS/NZS CISPR 15

Warranty Information
Commercial Use
5 years return-to-base
Domestic Use
5 years return-to-base
Warranty Method
Return-to-base
Warranty Period
5 years

Attributes
Brights
Part Number
ALD-DotFree-Strip-12Wm-120deg
Wattage
12 Watt/m

Shipping Information
Weight (kg)

Length Packaging (mm)

Height Packaging (mm)

Width Packaging (mm)
