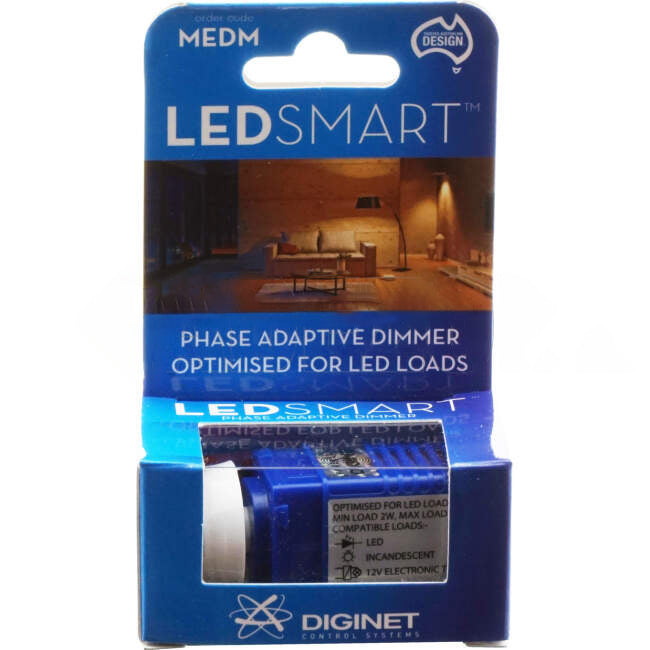

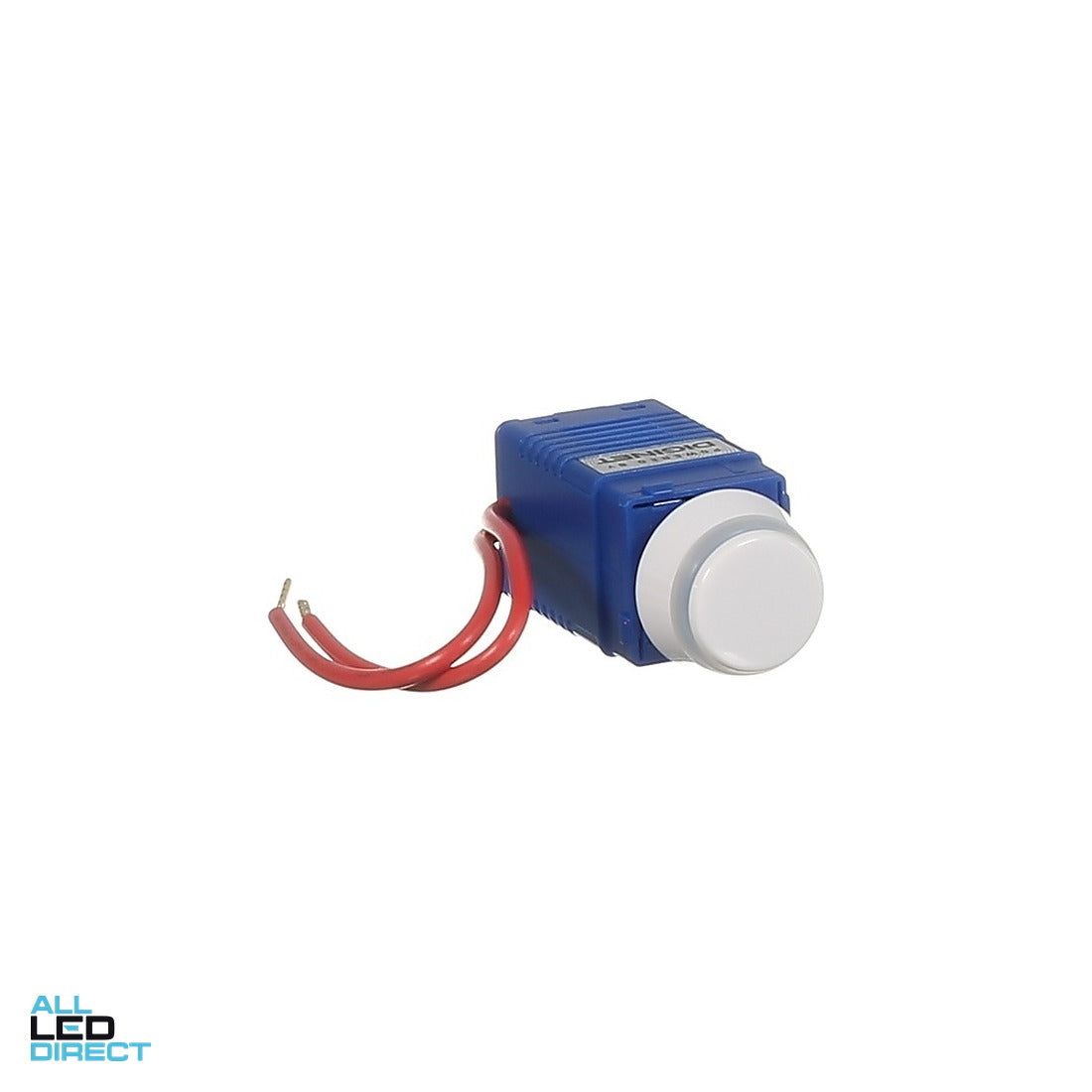

Diginet LEDSMART Adaptive Phase 2 Wire Dimmer With Soft Glow On Indicator

• Fits Australian wall switch plate apertures (For example, the Sylvania Trader Cougar range, plus HPM and Clipsal ranges)
• Rotary control with mechanical adjustment for minimum brightness level
• Separately switched 2-wire design ’??? no neutral wire connection required for wallplate retrofit installation
• An integrated LED indicator illuminates the dimmer knob and switch at low dimming levels
• Minimum brightness typically 0%
• Incorporates a thermal fuse to protect itself against overheating
• Incorporates filtering to reduce load brightness variation under conditions of line voltage ripple signal injection Thermal wind-back??¨
• Thermal wind-back for overload and over-temperature protection
• ’???Soft-start’??‹¨« to help prolong the lamp and driver life
• Protected against damage from connection to incompatible inductive load types (i.e., motor loads), via conduction angle wind-back
• Stable operation with most non-dimmable lamps (to a limited dimming level, lamp dependent)
• Inherent immunity to installation wiring short circuit fault
• Complies with all relevant Australian safety standards

Warranty Information (From Install)

• Commercial Use 2 Years
• Domestic Use 2 Years
• Warranty Method Return to All Led Direct
• Warranty Period 2 Years

Attributes

• Brand Diginet
• Part Number -??¨MEDM
• Colour White
• Dimming Method Universal
• Switch Type Rotary
• Wattage 400 Watt

Shipping Information

• Freight Levy Freight Free on LED Couriers for orders over $500
• Weight (kg) 0.0169
• Height (mm) 32
• Width (mm) 34
• Length Packaging (mm) 32
• Height Packaging (mm) 181
• Width Packaging (mm) 62
• Barcode 9346051003630
• Barcode (Secondary) 2000100227367
