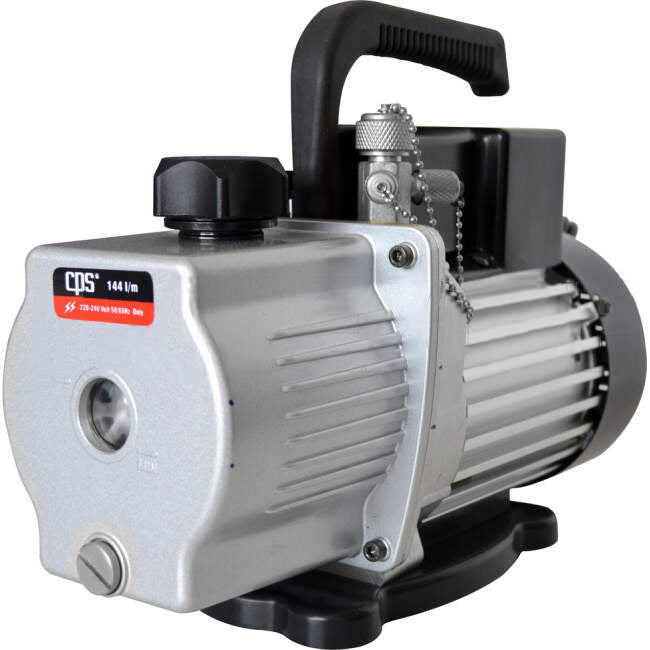

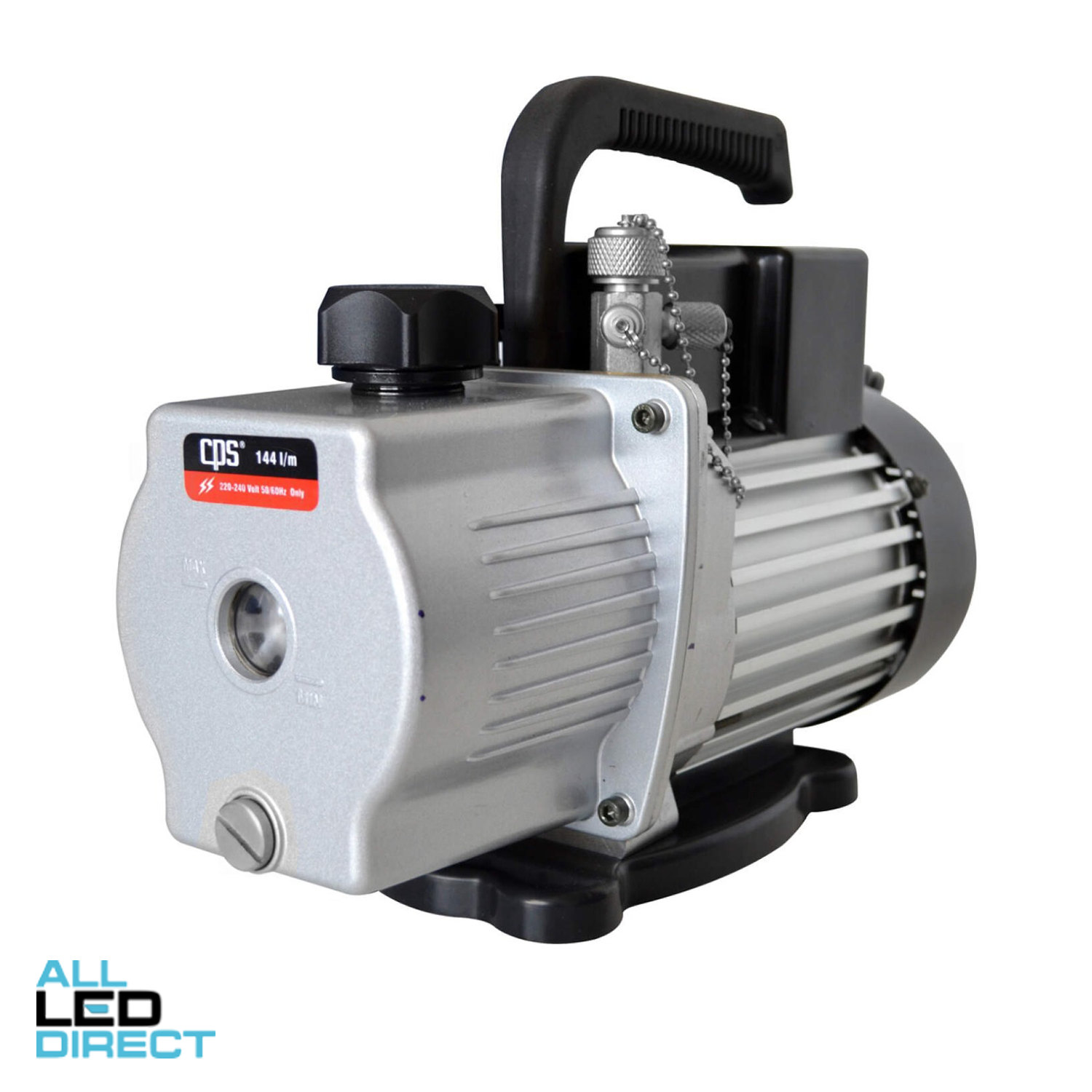

CPS VPS SERIES Two Stage Spark Proof Vacuum Pump

Sparkless (Ignition Proof) Vacuum Pump Series
CPS introduces another addition to the Pro-Set vacuum pump line-up with the VPS series. An efficient, lightweight and reliable vacuum pump, that meets ANSI ignition proof standards.

KEY FEATURES:

Designed and tested to meet ANSI 12:12.01 Ignition Proof standards
For use on refrigeration systems utilizing Class A1 (nontoxic, nonflammable), Class A2L
(nontoxic, low flammability), Class A2 (nontoxic, flammable), and Ammonia (NH3)
Air cooled, thermally protected motors encased in a durable aluminum housing
Oil filled rotary vacuum pump cartridge construction
Combination oil fill/exhaust port utilizes CPS exclusive oil mist free exhaust cap
Large double sealed oil sight glass
Sealed start relay
Steel inlet port with multiple intake sizes (1/4, 3/8 & 1/2 SAE), Ammonia compatible
Ignition proof ON-OFF switch
Rubber lined handle, skid resistant rubber base
Gas ballast valve for deeper vacuum
UL listed

VPS6DA SPECIFICATIONS
Stage:2
Ultimate Vacuum:10 Microns
Refrigerant Class:A1, A2, A2L
Dimensions:13.1 x 5.5 x 10
Weight:22.5 lb (10.2 kg)
Free Air Displacement:144 l/m @ 50 Hz
Motor Size (HP)RPM @ 50 / 60 Hz:1/2 HP 3440 RPM
Voltage:220-240V (50Hz)
Power Connection to Pump:10 Hard wired
Oil Capacity:16 oz (470 ml)
