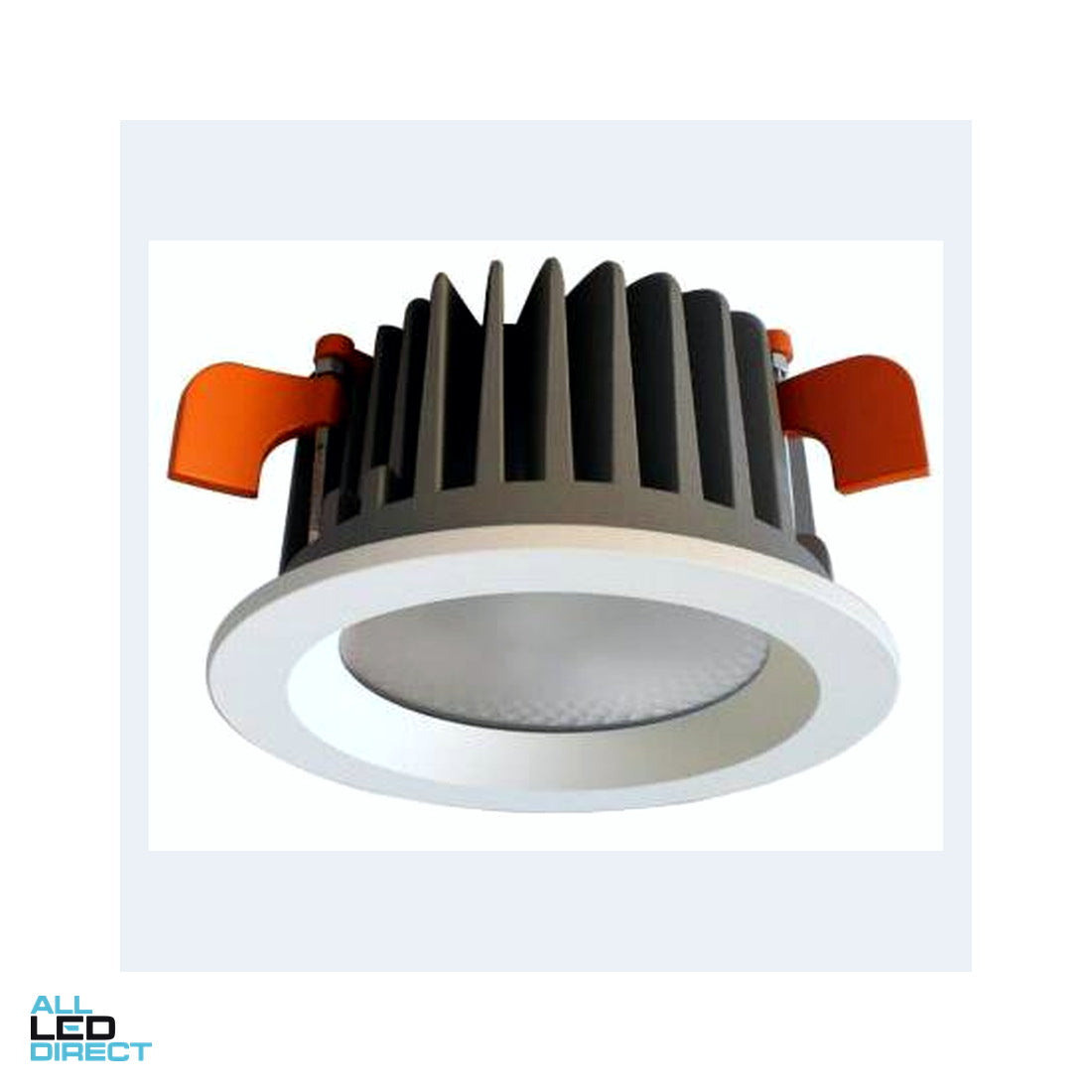

20W COB downlight IP65

20 W COB downlight LED. IP65. Recessed indoor commercial.

Quote via info@alledirect.com. Australia.

Datasheet ALD-RDL95-20W-IP65 Rev A.

Electrical
Rated voltage
230 V ac
Frequency
50 Hz
Australian supply range
216–253 V ac
System power
20 W
Electrical class
Class I
Ambient ta
−20 to +45 °C
Switch type
Inline

Optical
CCT
3000 / 6000 K
CRI
>90
Beam
60°
LED package
COB
Colour name
Warm white / Cool white

Mechanical
Body
Aluminium, powder coated
Diffuser
Polycarbonate
Finishes
Black, matt silver
Installation
Recessed
Adjustability
Fixed
IP rating
IP65
Diameter × height
Ø 160 × 75 mm

Driver
Type
Dimmable (Phase cut)
Driver included
Yes, integrated
Wiring
Rewireable 3-pin terminal
Driver RCM
RCM marked (driver only)

Standards
AS/NZS 60598.1, AS/NZS 60598.2.2, AS/NZS CISPR 15

Warranty Information
Commercial Use
5 years return-to-base
Domestic Use
5 years return-to-base
Warranty Method
Return-to-base
Warranty Period
5 years

Attributes
Brights
Part Number
RDL95
Wattage
20 Watt
