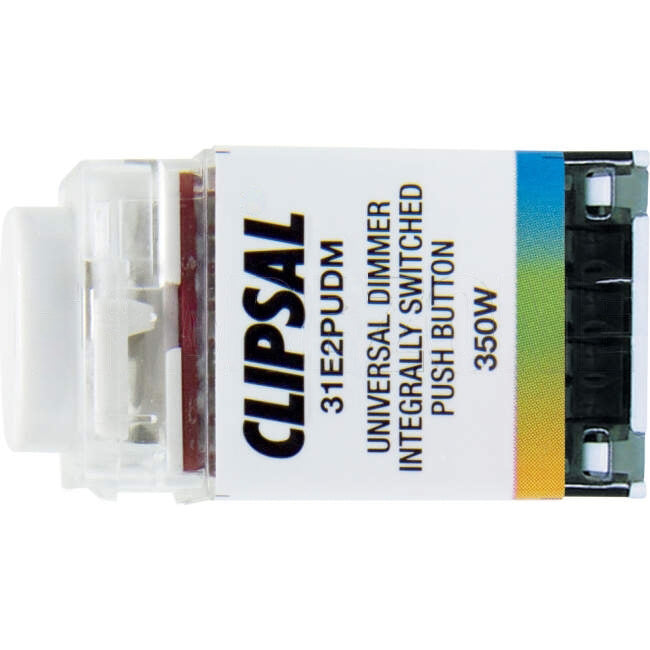

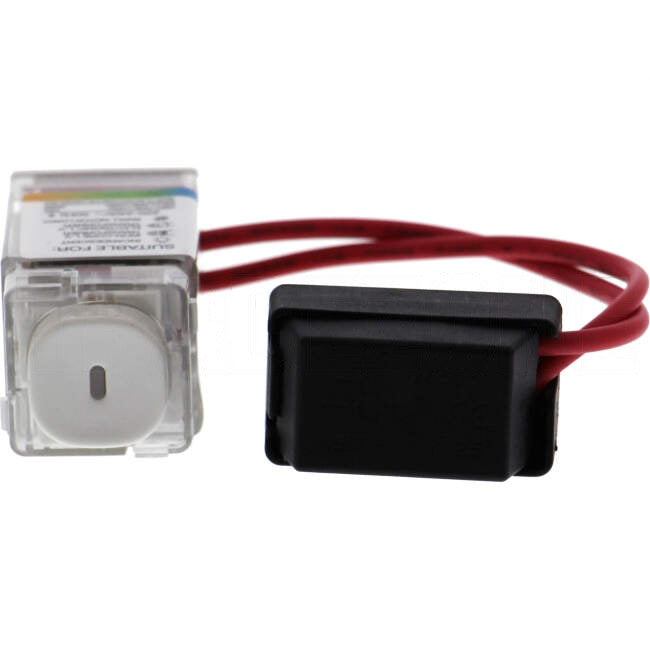

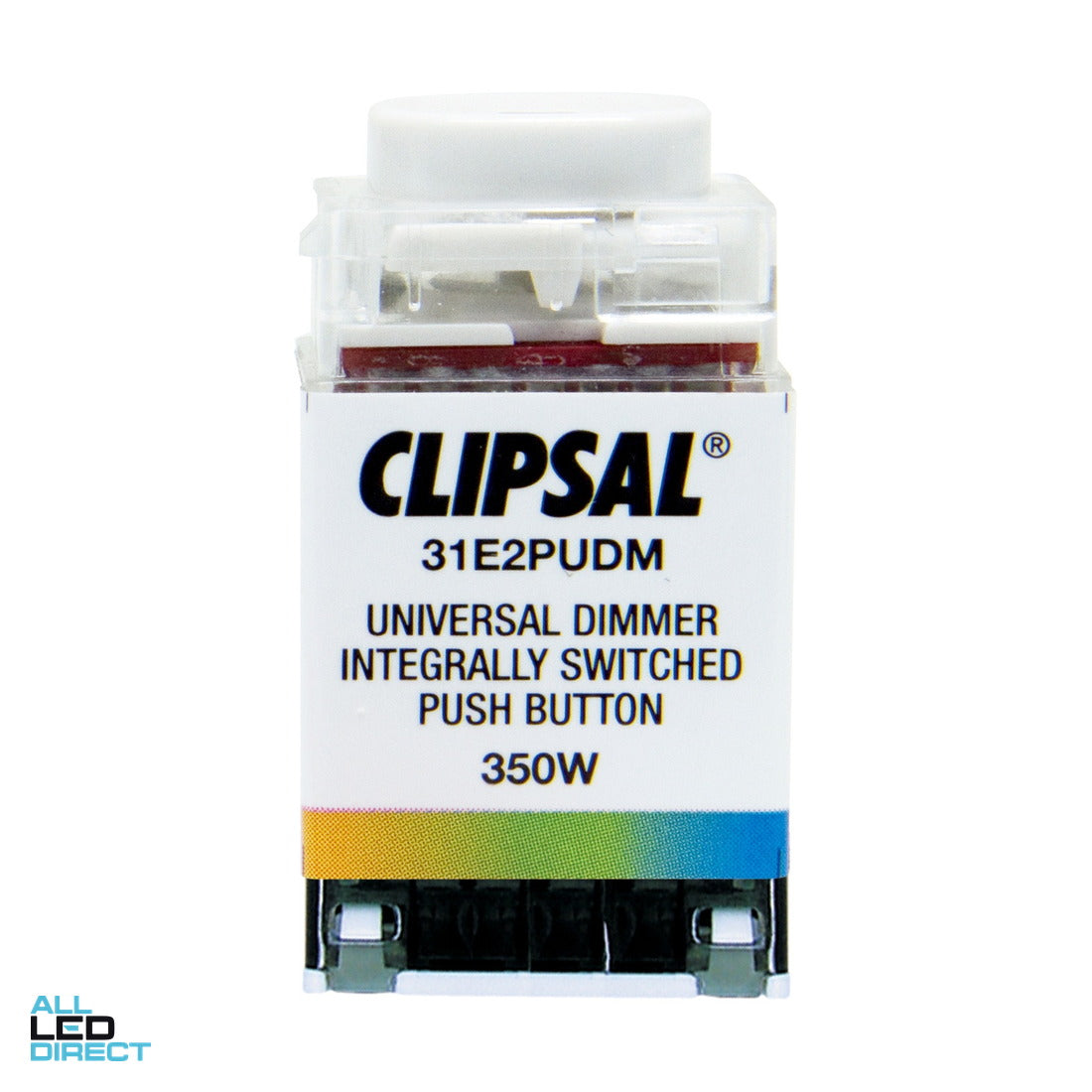

Clipsal 350 Watt Universal Dimmer On/Off Mech White

The Clipsal 31E2PUDM series universal dimmer is an integrally switched, push button (ISPB), modular universal dimmer mechanism rated at 350W. Designed for universal load compatibility, the unit utilises powerful and sophisticated dimming technology to provide full control of almost any type of load, whether it be incandescent lighting, mains voltage halogen or dichroic lamps, iron-core or electronic low voltage lighting transformers as used in downlight applications. Even small motor loads such as ceiling sweep and exhaust fans can be controlled. The universal dimmer also incorporates over-current and over-temperature protection devices and is capable of withstanding persistent short circuit conditions, making it the most rugged, robust and reliable dimmer mechanism ever produced

30 series standard range
Leading edge/trailing edge phase control
Mounting center: 84 mm
0 to 45 deg C
AS/NZS3100, AS/NZS3133, IEC60669
Compatible with selected dimmable CFL and LED loads
User selectable soft-start / kick-start operation
User adjustable minimum brightness
Multi-gang capacity up to six (6) dimmer mechanisms per plate
Wall or architrave mounting options
Wide range of plate styles and colour variants available
Suitable for new installations or retro-fit applications
Inbuilt over-current and over-temperature protection
Full short circuit protection
Fitted with suppressors to minimise radio frequency interference
Complies with Australian and international EMC standards.

Warranty Information (From Install)

• Commercial Use 1 Year
• Domestic Use 1 Year
• Warranty Method Return to All Led Direct
• Warranty Period 1 Year

Attributes

• Brand Clipsal
• Part Number - 31E2PUDM-WE
• Also Known As Mechanism Dimming Mech Dimmer Mechanism Dimmer Mechs Dimmer Mechanisms CLI31E2PUDM-WE
• Colour White
• Dimming Method Trailing Edge
• Switch Type Push Button
• Wattage 350 Watt

Shipping Information

• Freight Levy Freight Free on LED Couriers for orders over $500
• Weight (kg) 0.0050
• Length (mm) 115
• Height (mm) 120
• Width (mm) 55
• Length Packaging (mm) 115
• Height Packaging (mm) 110
• Width Packaging (mm) 90
• Barcode 9311554724306
• Barcode (Secondary) 9311554724313
• Barcode (Tertiary) 9311554724320
