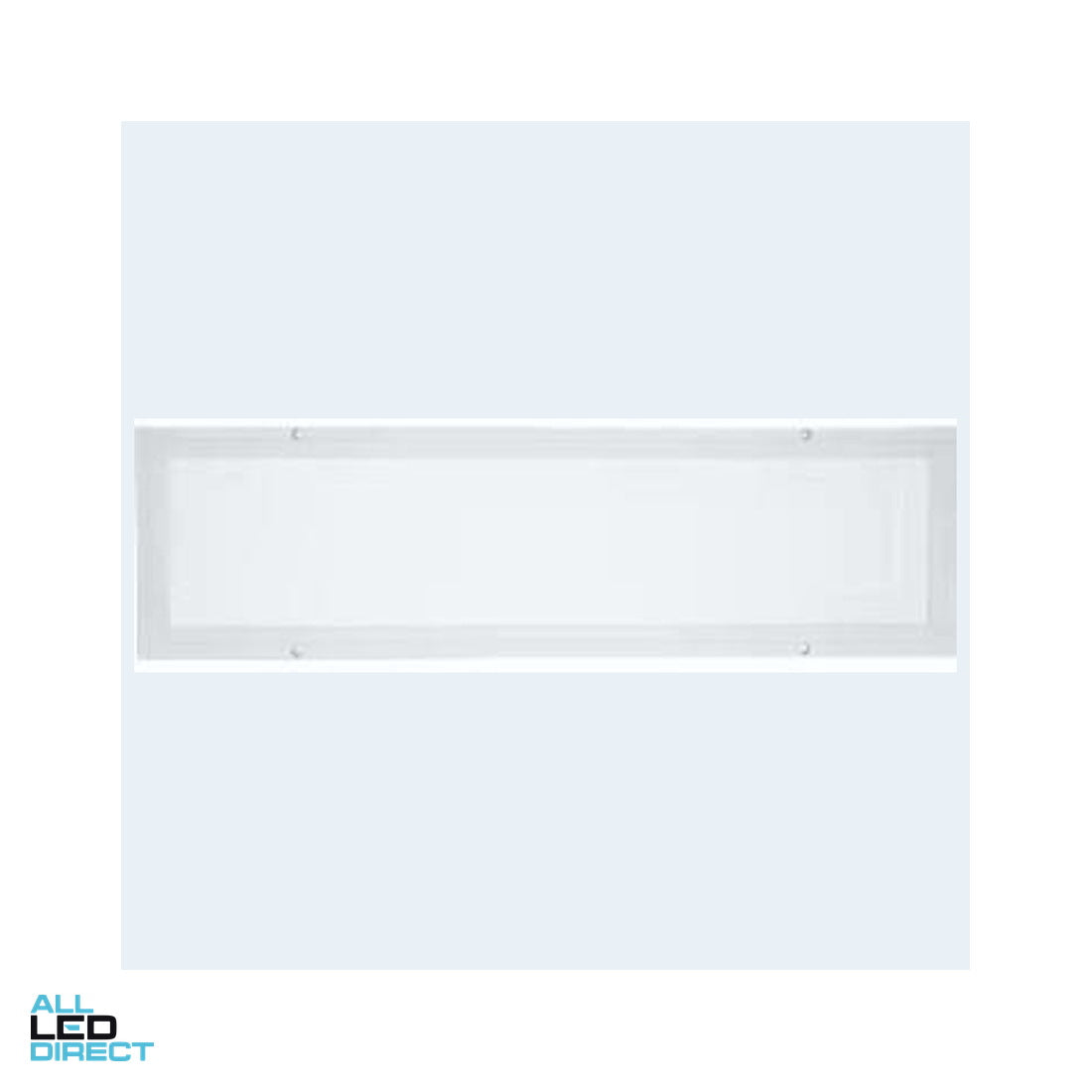

40W IP65 clean room troffer

Clean-room troffer 40 W LED. IP65. Clean room troffer.

Quote via info@alledirect.com. Australia.

Datasheet ALD-CleanRoom-Troffer-40W-120deg Rev A.

Electrical
Rated voltage
230 V ac
Frequency
50 Hz
Australian supply range
216–253 V ac
System power
40 W
Electrical class
Class I
Ambient ta
−20 to +45 °C
Switch type
Inline

Optical
System lumens
3400 lm
Efficacy
85 lm/W
CCT
3000 / 4000 K
CRI
>80
Beam
120°
LED package
COB
Colour name
Warm white / Cool white

Mechanical
Body
Aluminium, powder coated
Diffuser
Polycarbonate
Finishes
White, custom
Installation
Surface mount · recessed also yes on
Adjustability
Fixed
IP rating
IP65
Length × width
1200 × 300 mm

Driver
Type
Non dimming
Dimmable
No
Driver included
Yes, remote (integrated = NO)
Wiring
Rewireable 3-pin terminal
Driver RCM
RCM marked (driver only)

Standards
AS/NZS 60598.1, AS/NZS 60598.2.1, AS/NZS CISPR 15

Warranty Information
Commercial Use
5 years return-to-base
Domestic Use
5 years return-to-base
Warranty Method
Return-to-base
Warranty Period
5 years

Attributes
Brights
Part Number
ALD-CleanRoom-Troffer-40W-120deg
Wattage
40 Watt
