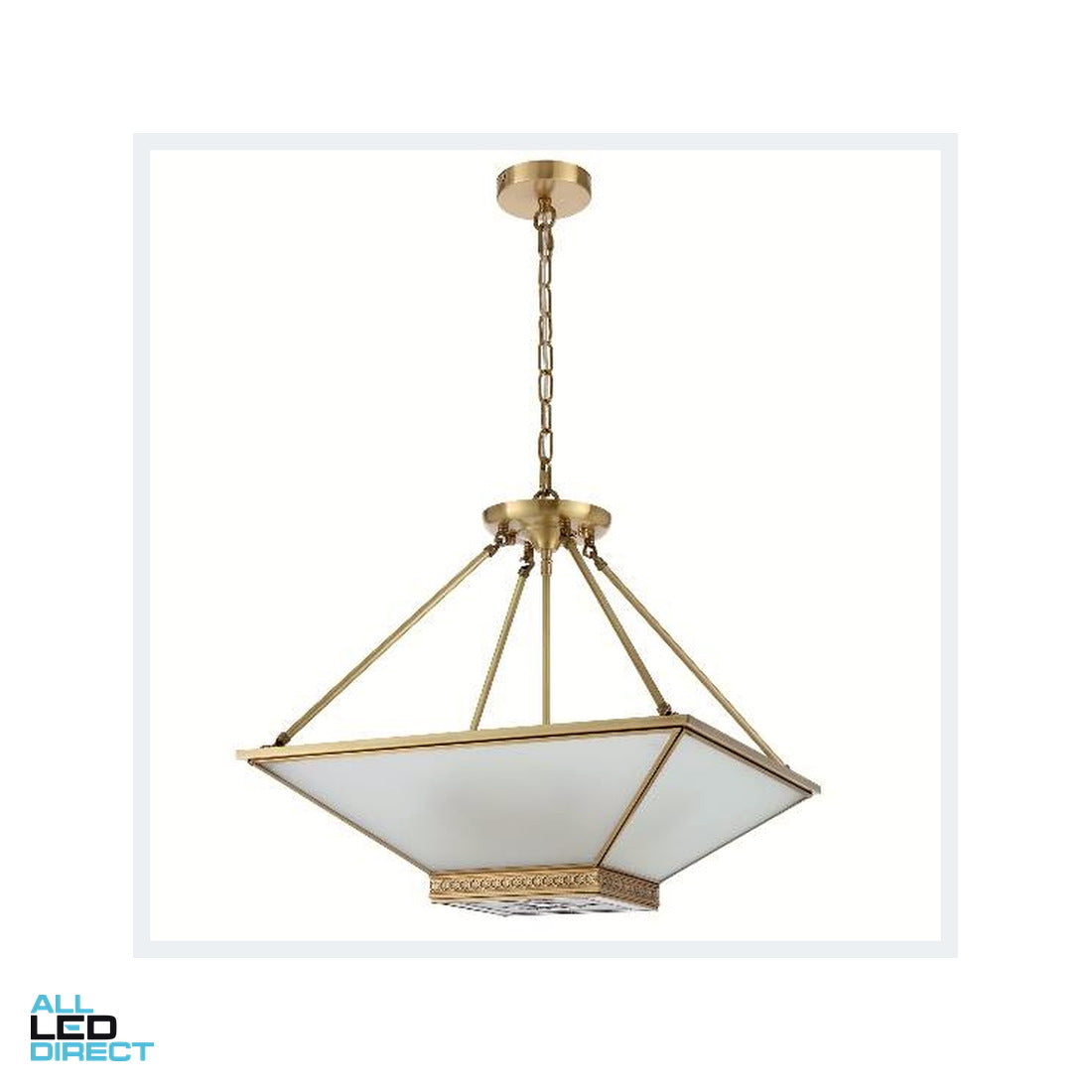

Chandelier square 4x25W

Court 4 × 25 W LED. IP20. Chandelier.

Quote via info@alledirect.com. Australia.

Datasheet ALD-Chandelier-Square-4x25W-120deg Rev A.

Electrical
Rated voltage
230 V ac
Frequency
50 Hz
Australian supply range
216–253 V ac
System power
4 × 25 W
Electrical class
Class I
Ambient ta
−20 to +45 °C
Switch type
Inline

Optical
CCT
3000 / 4000 K
Beam
120°
LED package
E27 × 4 (lampholder)
Colour name
Warm white / Cool white

Mechanical
Body
Brass
Diffuser
Glass
Finishes
Brass, opal
Installation
Surface mount
Adjustability
Fixed
IP rating
IP20
Diameter × height
Ø 500 × 460 mm (Plus rod 2000 mm)
Drop
Plus rod 2000 mm

Driver
Type
Dimmable (Phase cut)
Wiring
Rewireable 3-pin terminal
Driver RCM
RCM marked (driver only)

Standards
AS/NZS 60598.1, AS/NZS 60598.2.1, AS/NZS CISPR 15

Warranty Information
Commercial Use
5 years return-to-base
Domestic Use
5 years return-to-base
Warranty Method
Return-to-base
Warranty Period
5 years

Attributes
Brights
Part Number
ALD-Chandelier-Square-4x25W-120deg
Wattage
4 × 25 Watt

Shipping Information
Weight (kg)

Length Packaging (mm)

Height Packaging (mm)

Width Packaging (mm)
