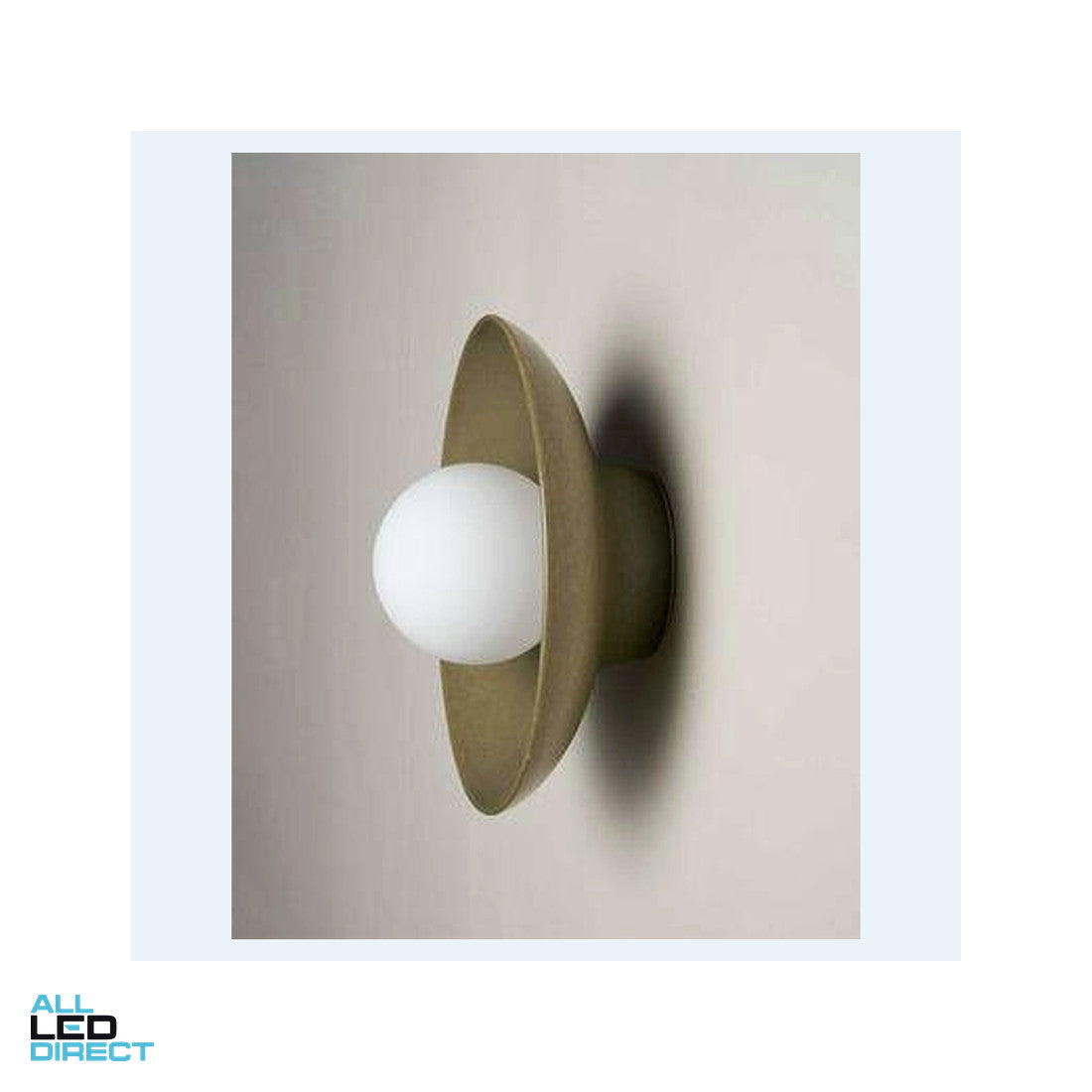

3W ceramic wall light olive

Grove 3 W LED. IP20. Wall.

Quote via info@alledirect.com. Australia.

Datasheet ALD-Ceramic-Wall-Olive-3W-180deg Rev A.

Electrical
Rated voltage
230 V ac
Frequency
50 Hz
Australian supply range
216–253 V ac
System power
3 W
Electrical class
Class I
Ambient ta
−20 to +45 °C
Switch type
Inline

Optical
CCT
3000 / 4000 K
Beam
180°
LED package
G9 (lampholder)
Colour name
Warm white / Cool white

Mechanical
Body
Ceramic
Diffuser
Glass
Finishes
Olive, opal listed
Installation
Surface mount
Adjustability
Fixed
IP rating
IP20
Diameter × height
Ø 250 × 90 mm

Driver
Type
Dimmable (Phase cut)
Wiring
Rewireable 3-pin terminal
Driver RCM
RCM marked (driver only)

Standards
AS/NZS 60598.1, AS/NZS 60598.2.1, AS/NZS CISPR 15

Warranty Information
Commercial Use
5 years return-to-base
Domestic Use
5 years return-to-base
Warranty Method
Return-to-base
Warranty Period
5 years

Attributes
Brights
Part Number
ALD-Ceramic-Wall-Olive-3W-180deg
Wattage
3 Watt

Shipping Information
Weight (kg)

Length Packaging (mm)

Height Packaging (mm)

Width Packaging (mm)
