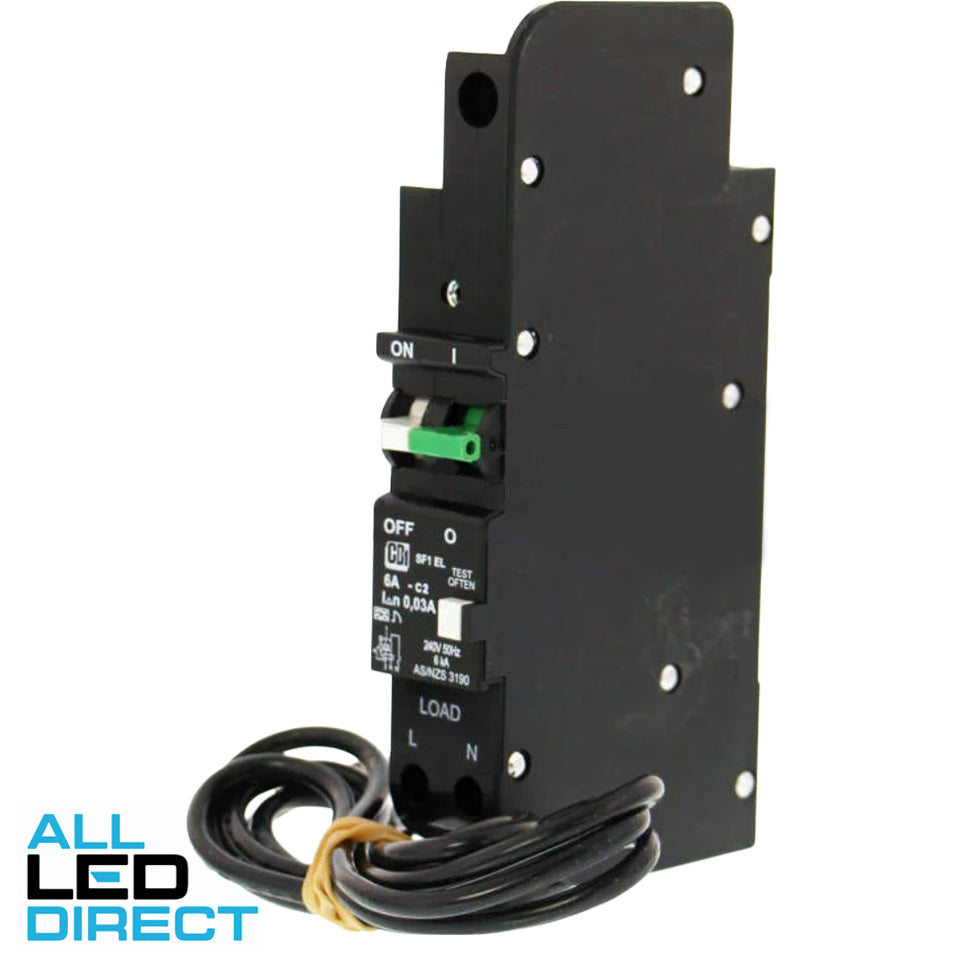

CBI Heinemann 6 Amp MCB/RCD RCBO C Curve 1 Pole + Neutral S1F 30mA 6kA

Single Pole hydraulic-magnetic RCBO
Provides 30mA residual current protection
Complies with AS/NZS 3190 (Approval Number NSW21007)
Switches both the Active and Neutral Poles
Overcurrent trip point unaffected by ambient temperature
Operating voltage: 240Vac (50Hz/60Hz)
Immune to pulsating DC
IP2X Shrouded line and load terminals
Warranty Information
Warranty Method
Return to ALL LED DIRECT
Commercial Use
1 Year
Domestic Use
1 Year
Warranty Period
1 Year
Attributes
Brand
CBI Heinemann
Part Number
SF1EL06-3
Also Known As
RCCB
Residual Circuit Breaker
Residual Circuit Breakers
GFCI
GFI
ALCI
RCD
Safety Switch
Safety Switches
Miniature Circuit Breaker
Residual Current Device
Amperage Range
6 Amps
Max Cable Size
Number Of DIN Modules
1 Module
Poles
1 Pole + N
Standard
Sub Category
MCB/RCD RCBO Combos
Breaking Capacity
6 kA
Trip Curve
Curve 2
Type
Type A
Voltage
240 Volts
Weight (kg)
0.3610
Length Packaging (mm)
185
Height Packaging (mm)
82
Width Packaging (mm)
30
Barcode
2000100145784
Barcode (Secondary)
6009522909369
Tech Data Sheets
SF1EL06-3 - Tech Data Sheet
Download
