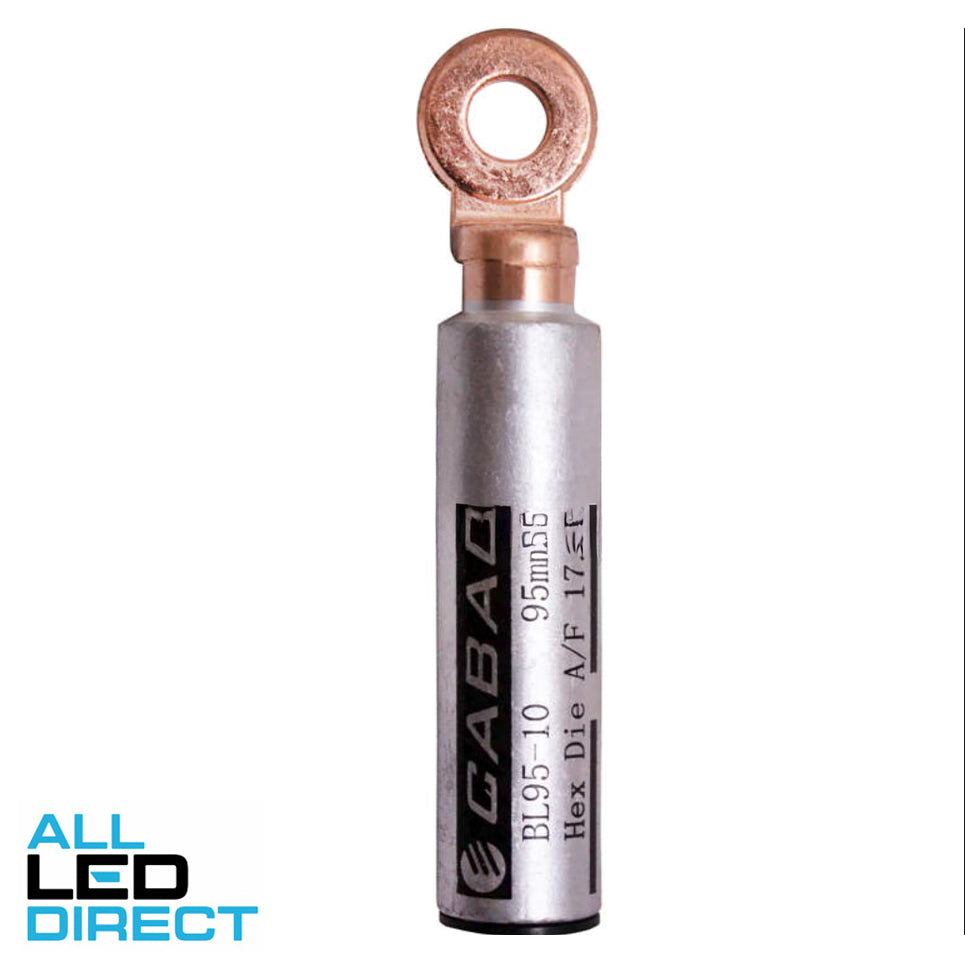

Cabac 95mm Bi-Metal Lug With 10mm Stud

Designed for Stranded Sector and Circular Stranded Aluminium Conductors, the CABAC range of Bi-Metal Lugs is made from the highest quality aluminium (99.6%) and copper (99.9%) and are joined using a friction welding process. This produces a very strong electrically sound joint, which will not be subject to electrolysis. The barrel is chemically treated to reduce contact resistance and corrosion and is filled with a jointing compound, which breaks the oxide layers on the aluminium.
When crimping the lug should be crimped from the palm end first, to force the joint compound into conductor strands.They are designed to be crimped using standard Australian tooling, using normal aluminium hexagonal dies.
Manufactured using friction welding process producing a very strong electrically sound joint
Suitable for aluminium conductor and copper terminals or busbar
Crimp from palm end to force compound into conductor strands
Crimping compound in barrel and sealed with cap
Crimping positions, AF, clearly marked on barrel
Warranty Information
Warranty Method
Return to ALL LED DIRECT
Commercial Use
1 Year
Domestic Use
1 Year
Warranty Period
1 Year
Attributes
Brand
Cabac
Part Number
BL95-10
Cable Size mm
95mm
Sub Category
Bi-Metal Lugs
Weight (kg)
0.0940
Length (mm)
7
Height (mm)
5
Width (mm)
1
Length Packaging (mm)
115
Height Packaging (mm)
25
Width Packaging (mm)
25
Barcode |

Attributes:

Brand: Cabac
Part Number: BL95-10
Cable Size mm: 95mm
Sub Category: Bi-Metal Lugs
Freight Levy: FREE FREIGHT when your cart is over $500
Weight (kg): 0.0940
Length (mm): 7
Height (mm): 5
Width (mm): 1
Length Packaging (mm): 115
Height Packaging (mm): 25
Width Packaging (mm): 25
Barcode: 2000101057499
Barcode (Secondary): 9318674505655
