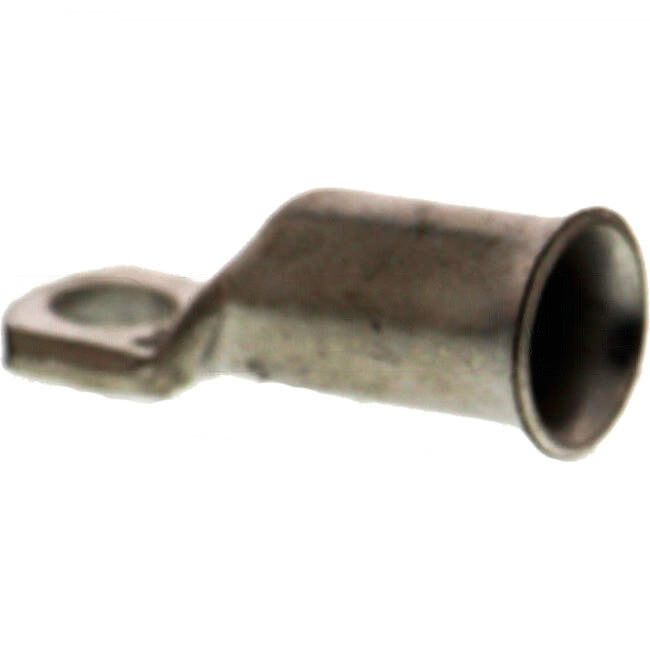

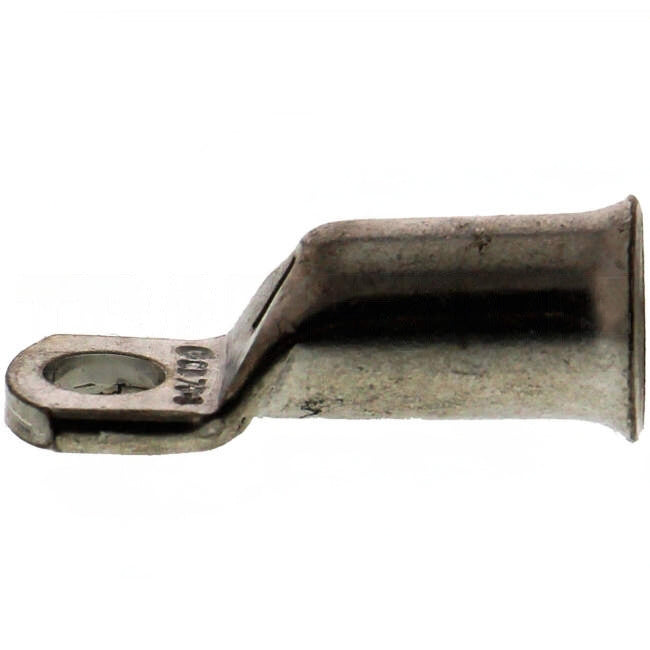

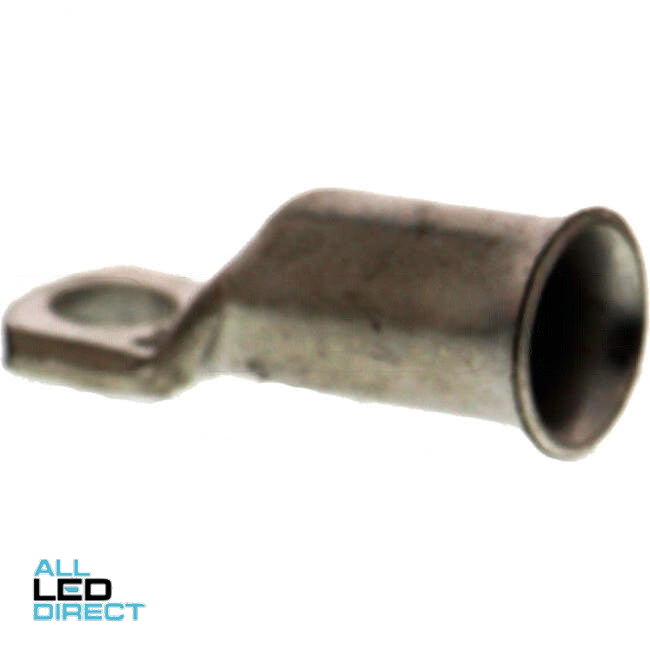

Cabac 70mm Circuit Breaker Palm Lug With 8mm Hole

CABAC Circuit Breaker Lugs are specially made for terminating large cables to circuit breakers. Since flashover distances have reduced, the connecting tunnel in breakers has become narrower, and fitting lugs in 150 to 250A breakers has become a problem because the palms of conventional lugs are too wide. This range of lugs have the same barrel dimensions as the standard range, so normal crimping rules apply, using the correct die for the cable size.

Many switchboard builders use flexible cables and this lug features a unique bell mouth, which makes insertion of fine stranded conductors much easier.

Made from 99.9%+ cu high conductivity copper, this lug provides the best electrical properties possible.

If a lug is not listed for your application please contact CABAC sales, as we are continually adding to the range.

FEATURES:

Specially made for terminating large cables to circuit breakers
Narrow palm design fits int circuit breaker connection tunnel
Unique bellmouth for easy insertion of fine stranded conductors
Made from 99.9% high conductivity copper
Complies to AS/NZS4325.1

Warranty Information (From Install)

• Commercial Use 1 Year
• Domestic Use 1 Year
• Warranty Method Return to All Led Direct
• Warranty Period 1 Year

Attributes

• Brand Cabac
• Part Number - CALCB70-8
• Cable Size mm 70mm
• Stud Size 8mm
