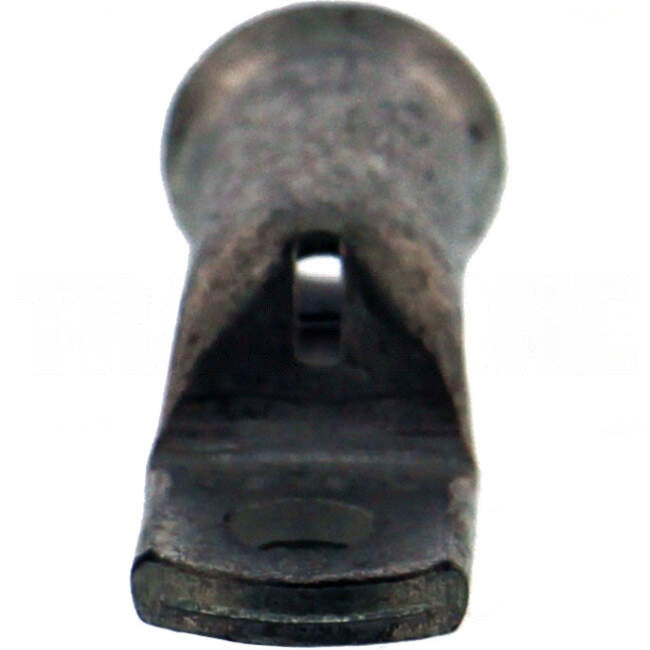

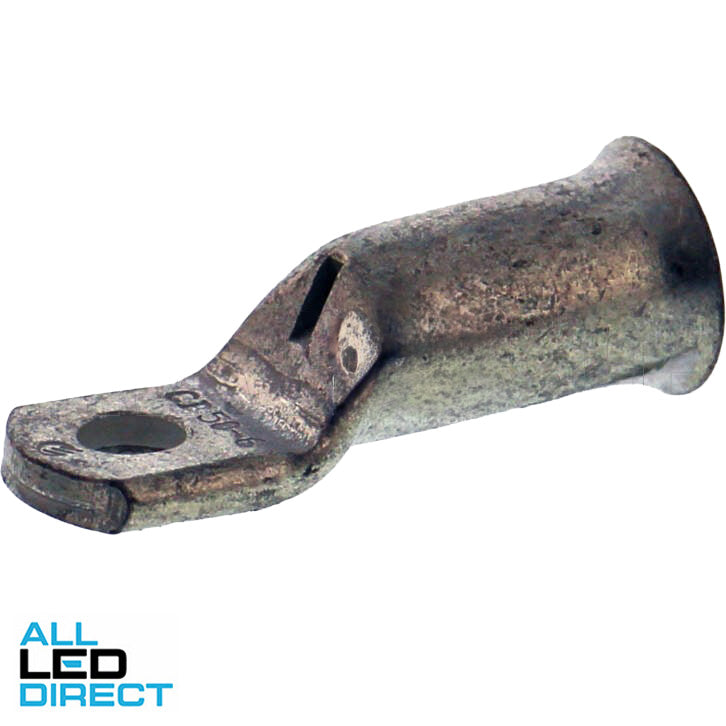

Cabac 50mm Circuit Breaker Palm Lug With 6mm Hole

Product Details
The Cabac 50mm Circuit Breaker Palm Lug With 6mm Hole by Cabac is a specially made lug for terminating large cables to circuit breakers. The Cabac CALCB50-6 features a narrow palm design that fits into the circuit breaker connection tunnel, making it ideal for use with 150 to 250A breakers. It also has a unique bell mouth for easy insertion of fine stranded conductors and is made from 99.9%+ cu high conductivity copper, providing the best electrical properties possible. The Cabac CALCB50-6 complies to AS/NZS4325.1.
Key Features
Narrow Palm Design: Fits into the circuit breaker connection tunnel
Unique Bell Mouth: Allows for easy insertion of fine stranded conductors
High Conductivity Copper: Made from 99.9%+ cu high conductivity copper for the best electrical properties possible
Compliance: Complies to AS/NZS4325.1
Cable Size: Suitable for 50mm cables
Stud Size: 6mm
Main Benefits
Easy Installation: The unique bell mouth makes it easy to insert fine stranded conductors
Reliable Performance: Made from high conductivity copper for the best electrical properties possible
Compliance: Meets the AS/NZS4325.1 standard for circuit breakers
Space-Saving Design: The narrow palm design fits into the circuit breaker connection tunnel

Attributes:

Brand: Cabac
Part Number: CALCB50-6
Cable Size mm: 50mm
Stud Size: 6mm
Sub Category: Copper Lugs
Lug Type: Narrow Palm
Weight (kg): 0.0023
Height (mm): 15
Width (mm): 15
Length Packaging (mm): 15
Height Packaging (mm): 24
Width Packaging (mm): 15
Barcode: 2000100239360
Barcode (Secondary): 9318674557500

Warranty Information:

Warranty Method
Return to ALL LED DIRECT
Commercial Use
1 Year
Domestic Use
1 Year
Warranty Period
1 Year
