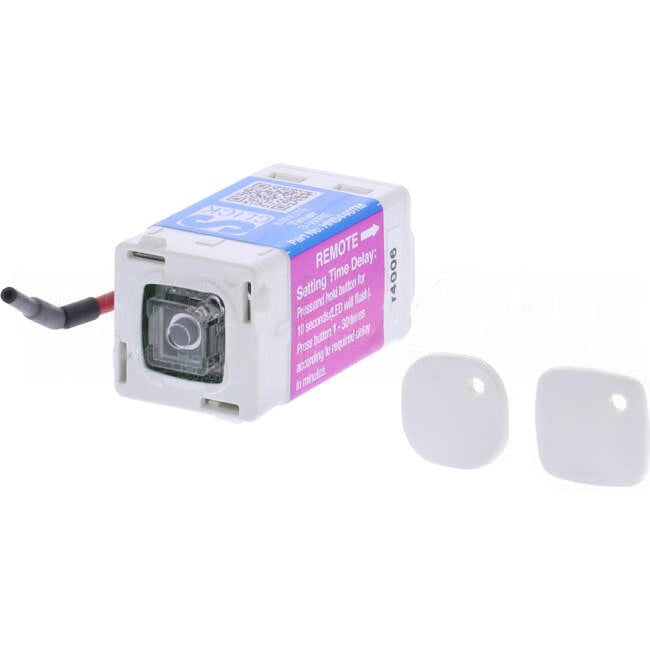

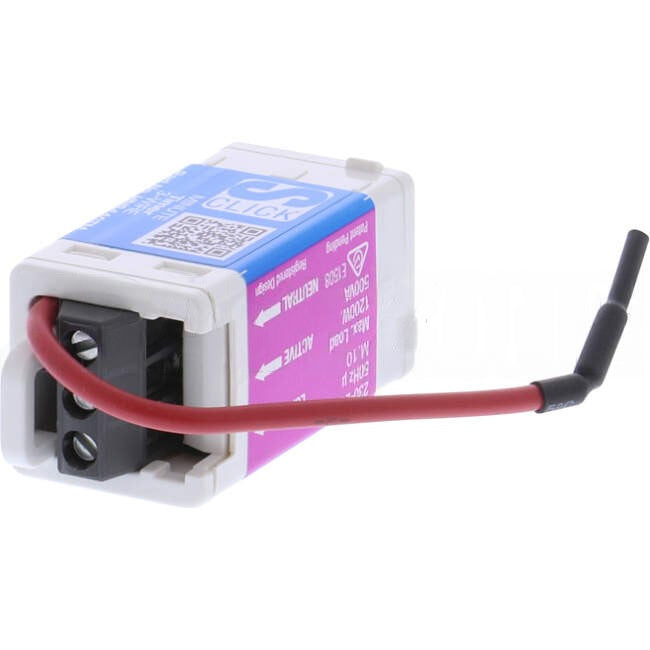

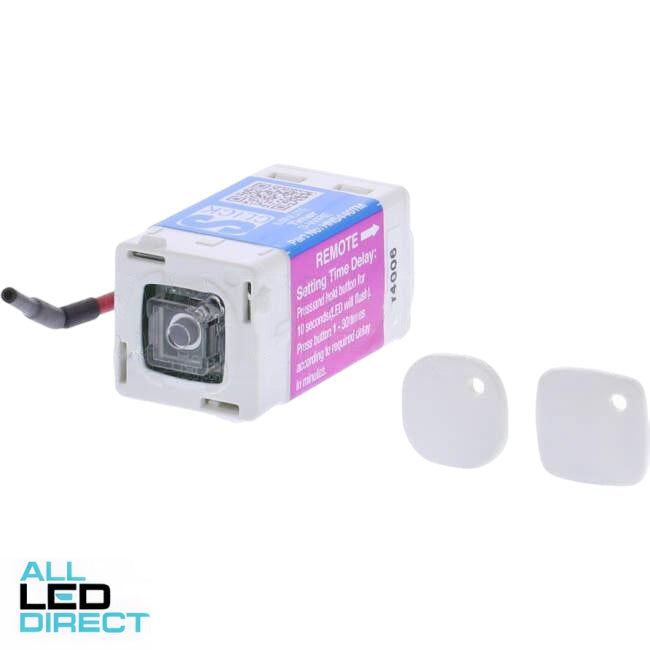

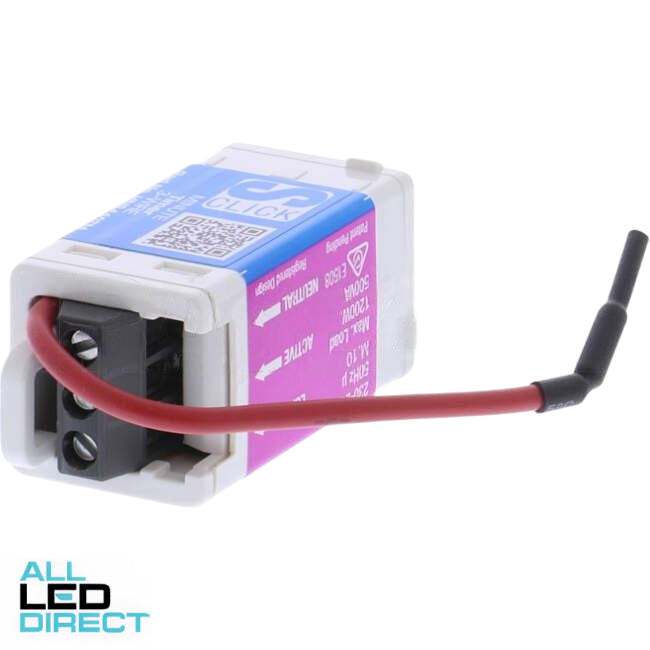

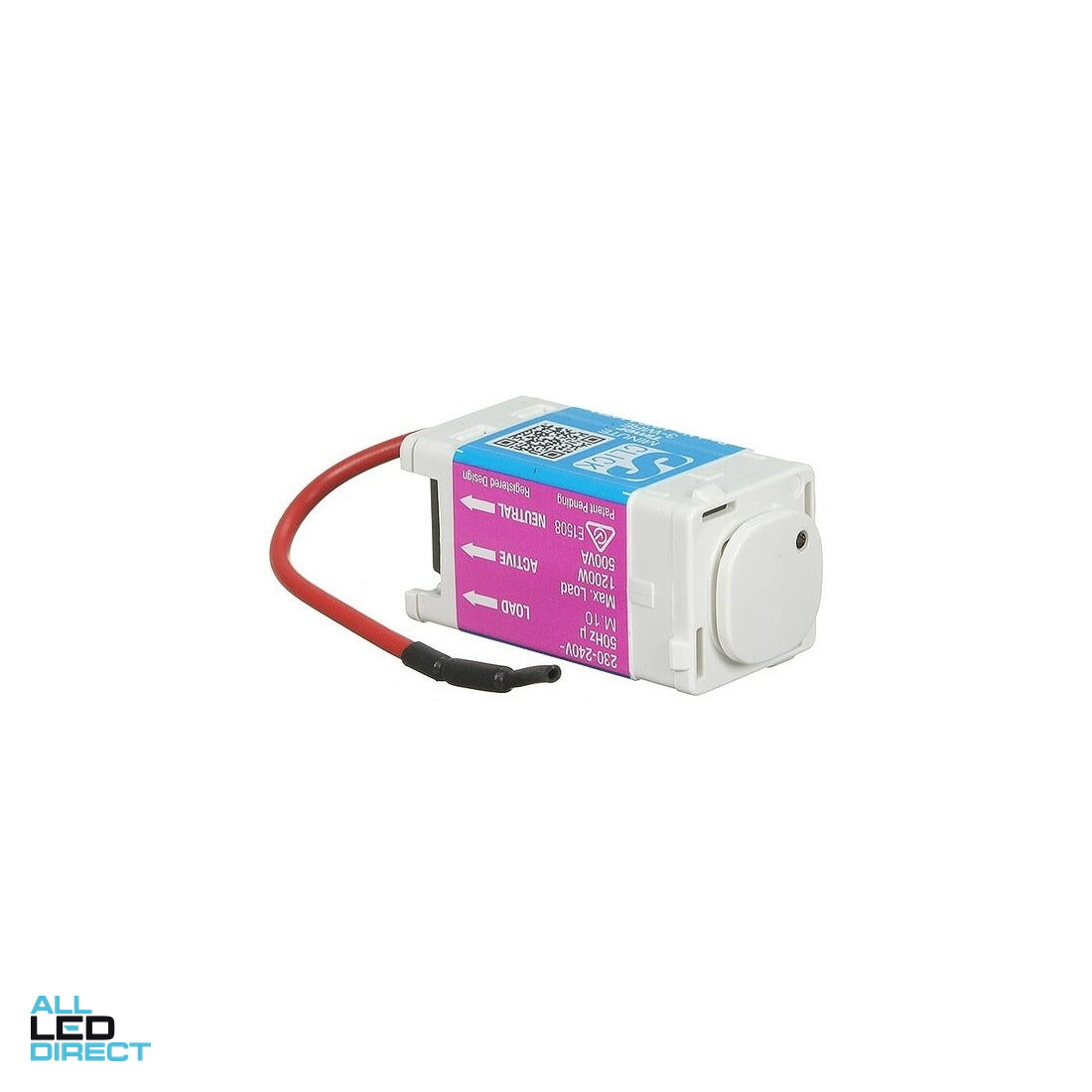

Cabac 5 Amp 3 Wire Minute Mech Timer Switch 240 Volts

The S-Click HNS440TM is a 3-wire minute timer switch that is ideal for fans, motors and commercial lighting. Time delay can be set in minute increments from 1-60 minutes-perfect for lights or appliances that are only required for relatively short periods. Alternatively, this 2-in-1 unit also allows for regular operation of lights and appliances; a sustained two-second press turns power on with no time out and can be manually turned off with a quick tap.

Our minute timer switch is ideal for heat lamps, spa air pumps, exhaust fans and other fans. A blue LED indicates device status and gives an expiry warning within the last 10 seconds before program time-out. The timer settings are retained even after loss of power and can be configured to power up on or off after loss of mains power.

Programming your chosen off time couldn't be simpler. A sustained 10 second press of the button enters programming mode. Just tap the button once for each minute of run time you require, up to 60 minutes. Programming mode expires 10 seconds after the last tap, and the unit then commits your settings to memory. If you happen to press the button more than 60 times, the maximum run time of 60 minutes will be stored.

2-in-1 switch that automatically turns off after a programmed time
Time delay from 1-59 minutes, in minute increments
Setting retained even after loss of power
Can power fans, motors, pumps, contactors and inductive loads
Ability to use as a follow on fan

Warranty Information (From Install)

• Commercial Use
• Domestic Use
• Warranty Method
• Warranty Period

Attributes

• Brand Cabac
• Part Number - HNS440TM
• Also Known As Mechanism
• Amperage Range 5 Amps

Shipping Information

• Freight Levy Freight Free on LED Couriers for orders over $500
• Weight (kg) 0.0280
• Length Packaging (mm) 40
• Height Packaging (mm) 6
• Width Packaging (mm) 70
• Barcode 9318674026143
• Barcode (Secondary) 9318674084433
• Barcode (Tertiary) 9339927000482
