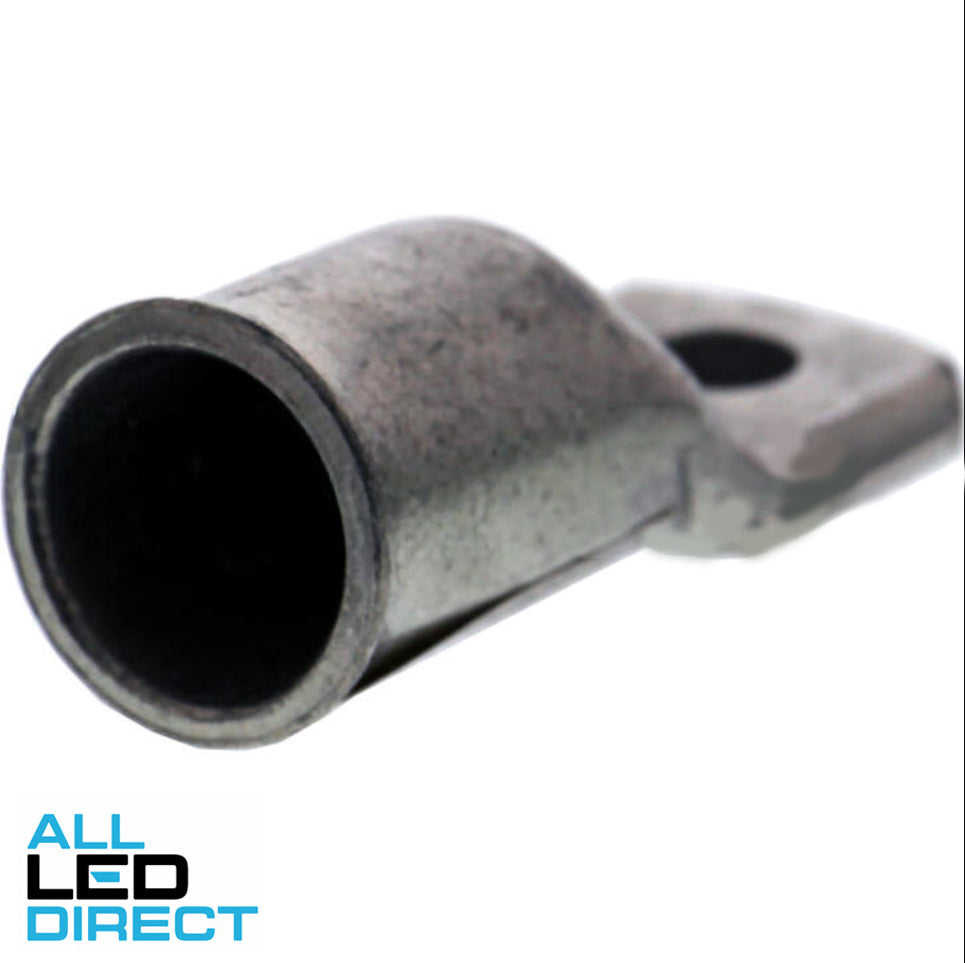

Cabac 240mm Circuit Breaker Palm Lug With 10mm Hole

CABAC Circuit Breaker Lugs are specially made for terminating large cables to circuit breakers. Since flashover distances have reduced, the connecting tunnel in breakers has become narrower, and fitting lugs in 150 to 250A breakers has become a problem because the palms of conventional lugs are too wide. This range of lugs have the same barrel dimensions as the standard range, so normal crimping rules apply, using the correct die for the cable size.

Many switchboard builders use flexible cables and this lug features a unique bell mouth, which makes insertion of fine stranded conductors much easier.

Made from 99.9%+ cu high conductivity copper, this lug provides the best electrical properties possible.

If a lug is not listed for your application please contact CABAC sales, as we are continually adding to the range.

FEATURES:

Specially made for terminating large cables to circuit breakers
Narrow palm design fits int circuit breaker connection tunnel

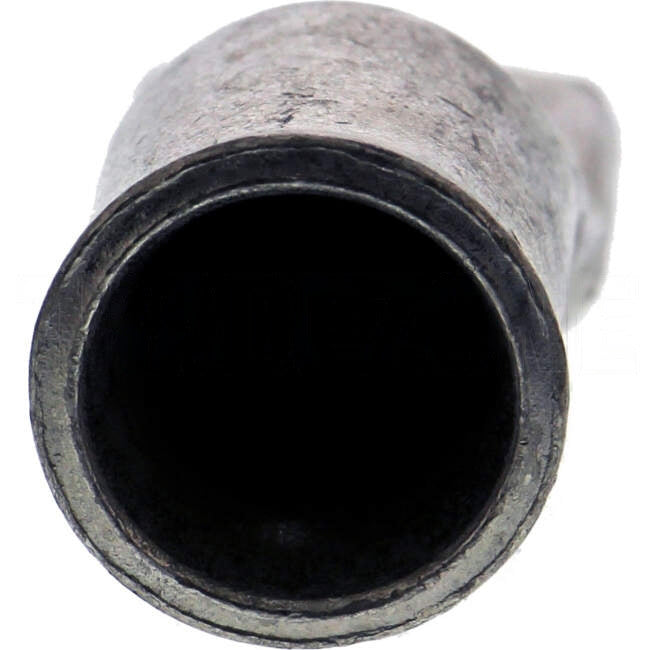

Unique bellmouth for easy insertion of fine stranded conductors
Made from 99.9% high conductivity copper
Complies to AS/NZS4325.1

Warranty Information (From Install)

• Commercial Use 1 Year
• Domestic Use 1 Year
• Warranty Method Return to All Led Direct
• Warranty Period 1 Year

Attributes

• Brand Cabac
• Part Number - CALCB240-10
• Cable Size mm 240mm
• Stud Size 10mm
• Cable Size mm 240mm
• Lug Type Narrow Palm
• Stud Size 10mm

Shipping Information

• Freight Levy Freight Free on LED Couriers for orders over $500
• Weight (kg) 0.0158
• Height (mm) 80
• Width (mm) 30
• Length Packaging (mm) 30
• Height Packaging (mm) 18
• Width Packaging (mm) 30
• Barcode 2000100239384
• Barcode (Secondary) 9318674557616
• Barcode (Tertiary) 9318674721963
