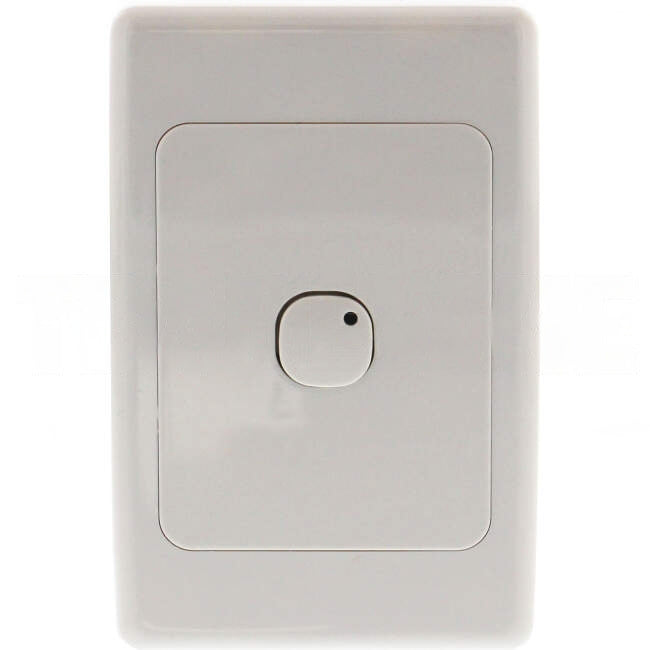

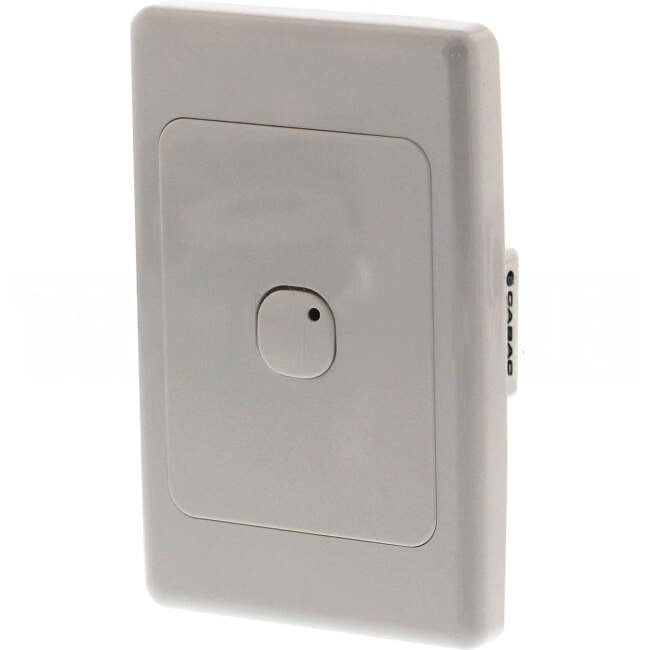

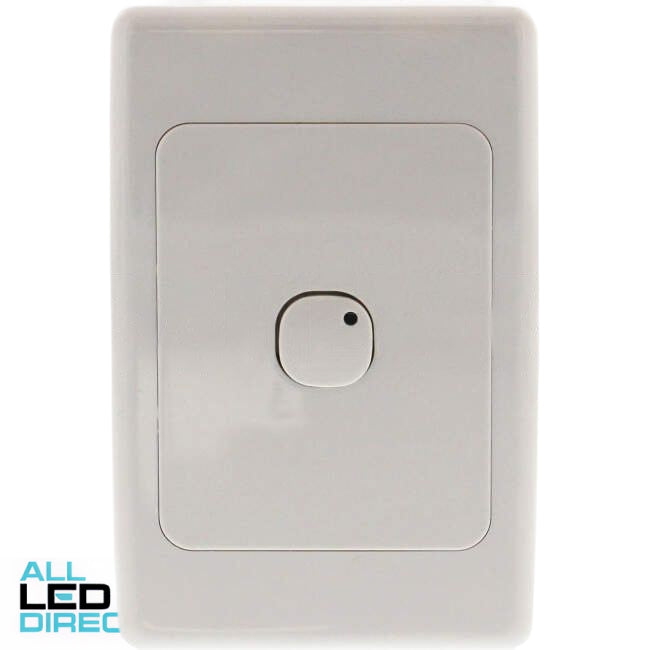

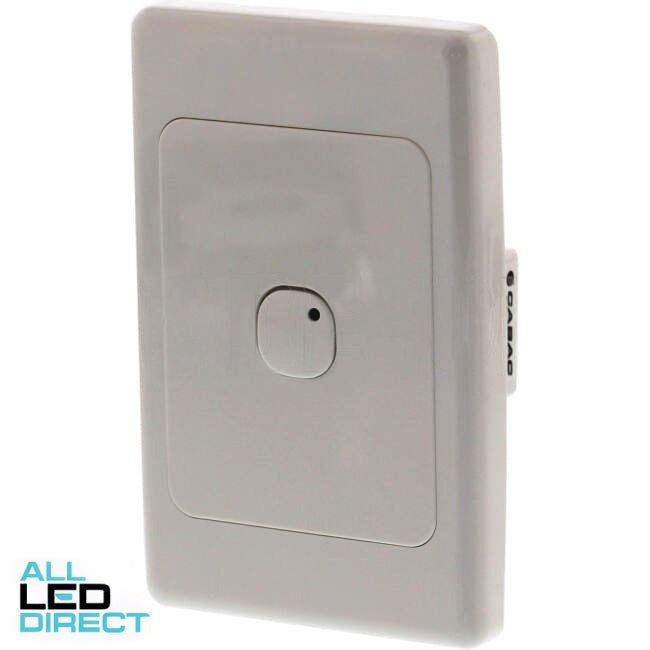

Cabac 10 Amp Single Internal Time Delay Switch 3 Wire Push Button 15 Seconds - 252 Minutes White

The S-Click HNS210TD Wall Timer Switch is a high current 10A timer switch suitable for a range of applications, including motor loads up to 8A. This unit has selectable operating modes that allow it to act as an ON/OFF timer switch or a restart timer switch as required.

The HNS210TD is configured using eight DIP switches, a quick and simple method that allows installers to tailor the timer function precisely to their client's needs. This unit supports a wide range of timer duration options, enabled by a switch which determines whether the time-out is set in long (4-minute) or short (15-second) increments. This means that timer duration can range from 15 seconds to over 4 hours. Another switch allows for the installer to select what action results when the button is pushed while the load is on. Using this setting, the HNS210TD can be programmed to restart the timer when the button is pushed during operation, thus extending the run time. Alternatively, the button can be programmed to turn off the load upon a subsequent push, cutting the run time short.

Designed for high power applications like motors, fans and pumps for pools and spas
Two modes available - timer switch and restart timer switch
High current 10A timer switch

Warranty Information:

Commercial Use 1 Year
Domestic Use 1 Year
Warranty Method Return to ALL LED DIRECT
Warranty Period 1 Year

Attributes:

Brand Cabac
Part Number
HNS210TD

Amperage Range 10 Amps
Maximum Load 400 Watts
Operation Delay Off
Voltage Range 250 Volts
Voltage Type AC

Shipping Information:

Attributes
Brand Cabac
Part Number
HNS210TD

Amperage Range 10 Amps
Maximum Load 400 Watts
Operation Delay Off
Voltage Range 250 Volts
Voltage Type AC
Shipping Information

Weight (kg) 0.1600
Length Packaging (mm) 80
Height Packaging (mm) 120
Width Packaging (mm) 55
Barcode 9318674000709
