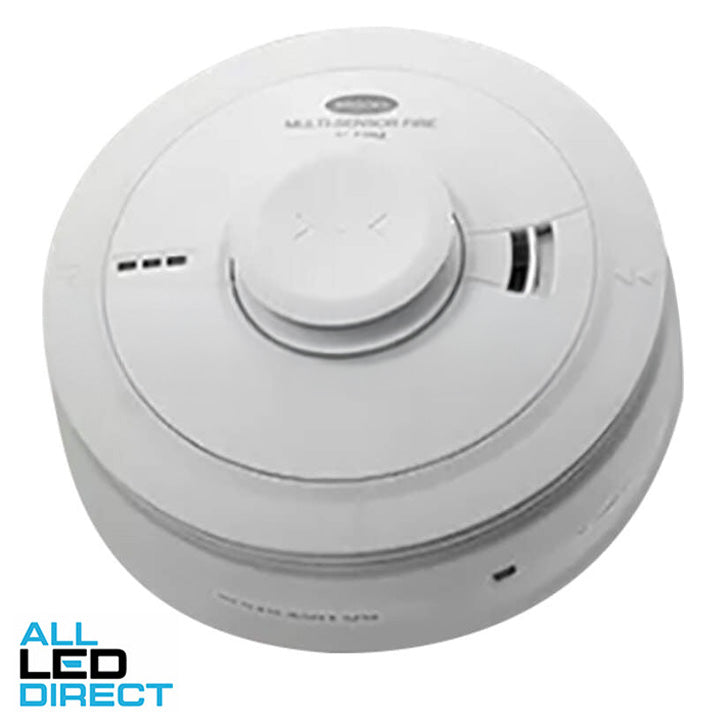

Brooks Surface Mounted 230 Volt Multi Sensor Photoelectric Smoke & Heat Alarm with Rechargeable Lithium Battery Backup

Tech Data Sheets
Installation Guide
Product Details
The EIB3024 is a Multi-Sensor Alarm with 230V AC mains power supply with a non removable rechargeable lithium battery back-up.
EIB3024
The EIB3024 is a Multi-Sensor alarm containing 2 separate sensing elements, intelligently monitored, in order to detect the presence of fire. Using its intelligent dual monitoring, it responds much faster to all fire types (TF1 to TF6 & TF8) than a traditional single sensor Alarm. In addition, the chamber design, integrated insect screen and unique dust compensation algorithm reduce the risk of false alarms.
The EIB3024 is powered by 230V AC mains. In the event of mains failure, the rechargeable 10-year built-in non-removable lithium battery will provide up to 3 months power supply in the case of a wireless RF installation or up to 6 months in any other case.
The AudioLINK feature facilitates acoustic download of the alarm parameters and status using the AudioLINK app.
The EIB3024 can operate as a standalone alarm or can be interconnected either by hard-wire or wirelessly (using the EIB3000MRF module) enabling it to communicate with compatible Brooks alarms and accessories. Up to 12 devices can be interconnected.
The EIB3024 self-checks its sensors, battery voltage and internal circuitry every 48 seconds. Any fault condition found will be indicated by a combination of yellow LED flashes and chirps.
The memory feature allows an alarm that has previously activated to be easily identified (through the red flashing LED).
Warranty Information
Warranty Method
Return to ALL LED DIRECT
Commercial Use
5 Years
Domestic Use
5 Years
Warranty Period
5 Years
Attributes
Brand
Brooks
Part Number
EIB3024
Battery Backup
Rechargeable Lithium Battery
Interconnected
Wired + Optional Wireless Interconnect

Attributes:

Brand: Brooks
Part Number: EIB3024
Battery Backup: Rechargeable Lithium Battery
Interconnected: Wired + Optional Wireless Interconnect
Sub Category: Smoke Alarms
Voltage Type: AC

Weight (kg): 0.4200
Length Packaging (mm): 155
Height Packaging (mm): 185
Width Packaging (mm): 72
Barcode: 9317537000504

Warranty Information:

Warranty Method
Return to ALL LED DIRECT
Commercial Use
5 Years
Domestic Use
5 Years
Warranty Period
5 Years
