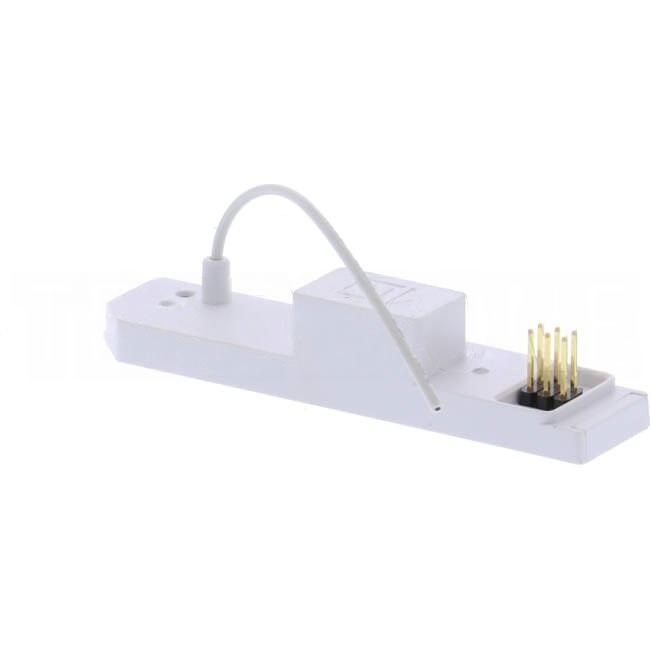

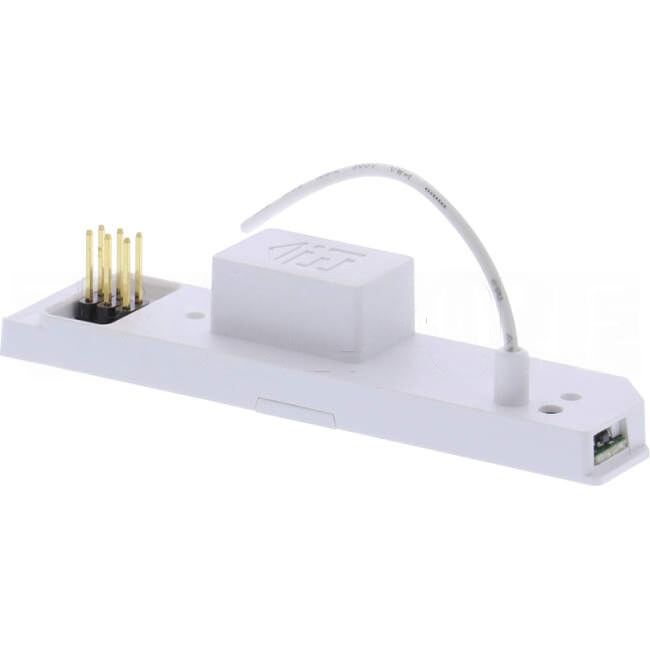

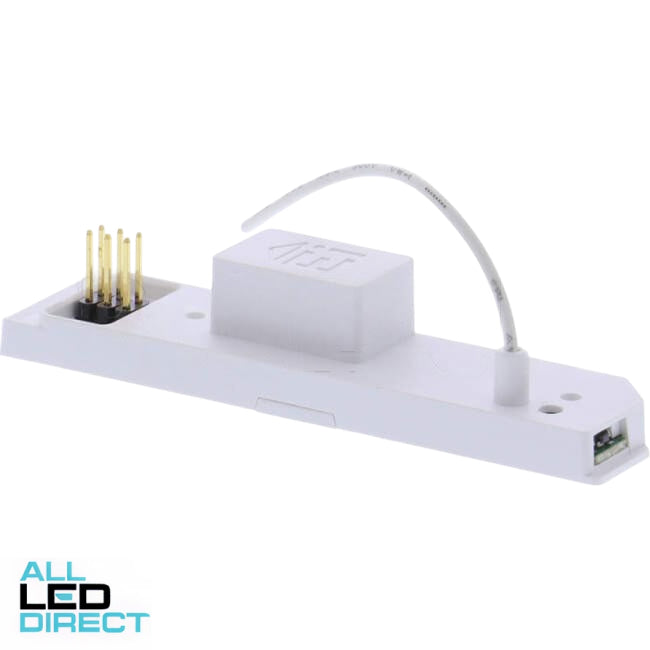

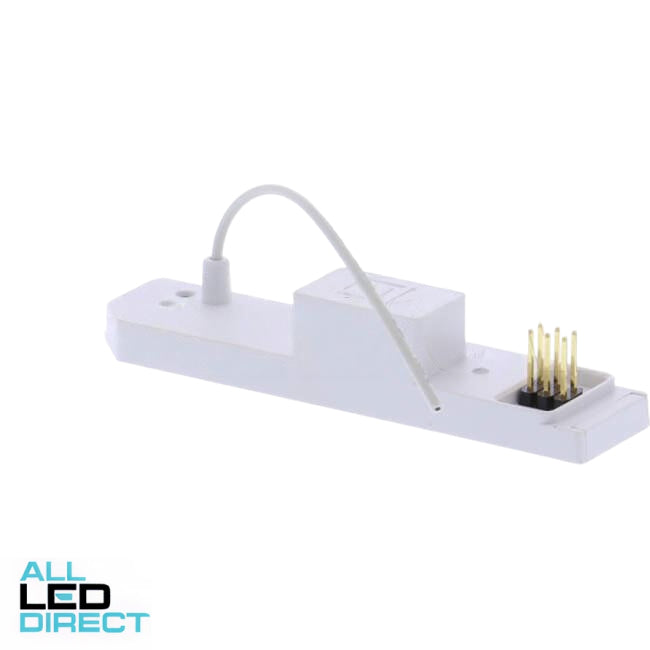

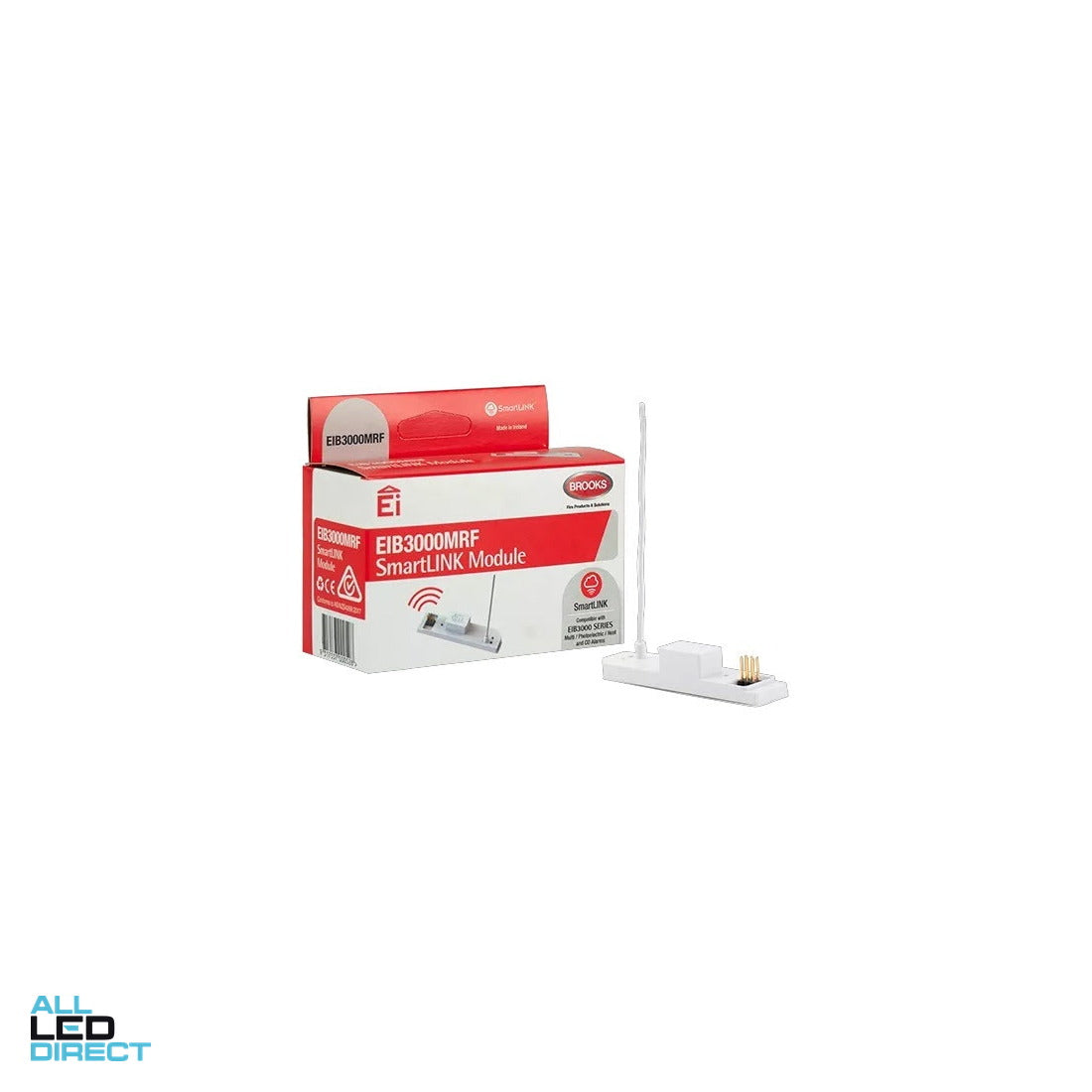

Brooks SmartLINK Module to suit 3000 Series

The EIB3000MRF enables the alarm to communicate wirelessly with other Brooks RF devices. Up to 12 devices can be interconnected. It also facilitates a hybrid communication of hardwired and wireless connections.

The module simply plugs into the designated slot in the base of the alarm head. On powering up the alarm, the RF LED on the side of the alarm will flash red, blue and green to indicate that the module has been fitted correctly.

The EIB3000MRF module is a short range device using a transceiver to transmit, receive and repeat the RadioLINKTM RF protocol. This ensures a robust "mesh" of RF signals and reliable paths of communication.

The house coding feature confines the RF communication to designated RF devices only, thereby avoiding the inadvertent activation of neighbouring alarm RF systems.

The Remote Alarm Learn entry feature allows the installer to re-activate the entire RF system house coding from one device. Additional devices can then be added and house coded accordingly.

The EIB3000MRF facilitates a monitoring (or buddy system) function that recognises system tampering or alarm head removal. In monitoring mode each alarm will check the presence of its strongest received RF signal.

Warranty Information (From Install)

• Commercial Use 5 Years
• Domestic Use 5 Years
• Warranty Method Return to All Led Direct
• Warranty Period 5 Years

Attributes

• Brand Brooks
• Part Number - EIB3000MRF
• Also Known As Brooks

Shipping Information

• Freight Levy Freight Free on LED Couriers for orders over $500
• Weight (kg) 0.0680
• Length Packaging (mm) 120
• Height Packaging (mm) 90
• Width Packaging (mm) 52
• Barcode 9317537000528
