Brooks RadioLINK Module to suit the EIB650iC/EIB650iW And EIB603TYC Alarms

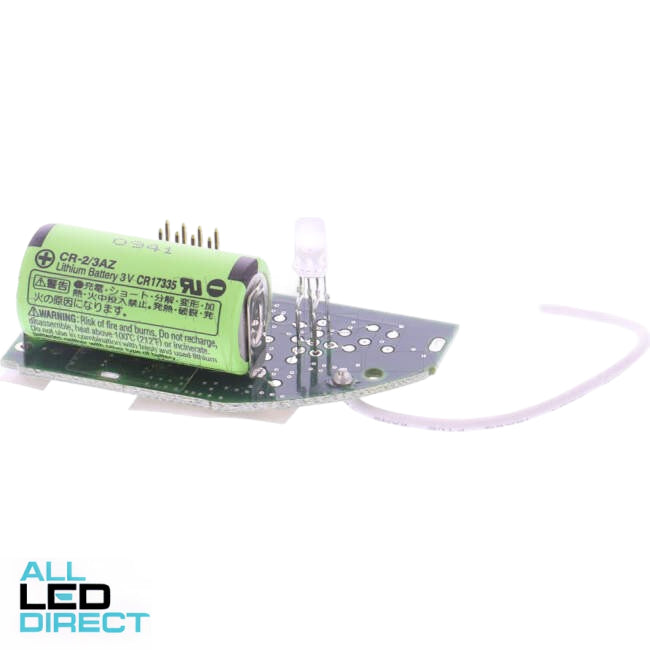

The EIB600MRF is an optional add-on RadioLINK+ module for
the EIB650iC/EIB650iW and EIB603TYC alarms. The module
simply plugs into the designated slot in the base of the alarm
head. The immediate flashing LEDs indicates that the module
has been fitted correctly.

The EIB600MRF module facilitates wireless interconnection with
up to 12 RadioLINK devices.

The EIB600MRF module is a short range device using a
transceiver to transmit, receive and repeat the RadioLINK RF
protocol. This ensures a robust “mesh” of RF signals and reliable
paths of communication.

The house coding feature confines the RF communication to
designated RadioLINK devices only, thereby avoiding the
inadvertent activation of neighbouring alarm RF systems.
The remote alarm learn entry feature allows the installer to
re-activate the entire RF system house coding from one device.
Additional devices can then be added and house coded
accordingly.

RF monitoring of the signal paths is faciltated through a “buddy”
system. Each device will “buddy up” to at least one other device.
If the signal path fails, the “buddy” will transmit a communication
lost signal. Information such as alarm events, fault events, test
activations and alarm head removals can now be downloaded
using the RadioLINK tool.

Shipping Information

• Freight Levy Freight Free on LED Couriers for orders over $500Freight Levy :- Applies To All Postcodes
• Weight (kg) :- 0.0800
• Length (mm) :- 60
• Height (mm) :- 20
• Width (mm) :- 30
• Length Packaging (mm) :- 125
• Height Packaging (mm) :- 110
• Width Packaging (mm) :- 54
• Barcode :- 2000100866252
• Barcode (Secondary) :- 9317537000542
