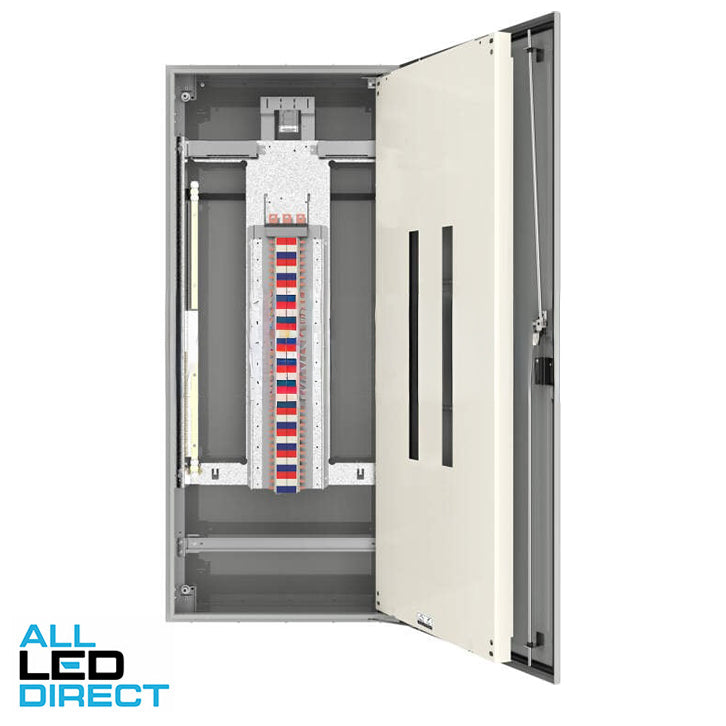

B&R 72 Pole SUPERIOR Distribution Board with 24P Extra DIN Space IP66 RAL7035

The B&R 72 Pole SUPERIOR Distribution Board with 24P Extra DIN Space IP66 RAL7035 is designed to be the ideal extension to the B&R Infinity 3G switchboard range and is typically used in commercial, industrial and some multi-residential developments. The B&R PBS72P has a range of features including IP66 protection rating, accepts Schneider or NHP MCB’s and is fully AS/NZS 61439 compliant. The product has a choice of materials including 1.6mm zinc coated steel powdercoated RAL7035 light grey and X15 orange, and 1.5mm 316 stainless steel with N4 finish. The B&R PBS72P also comes with a range of inclusions such as aluminium gland plates top and bottom, hinged escutcheon and swing handle three point locking.
Key Features
IP Rating: IP66 protection rating
MCB Compatibility: Accepts Schneider or NHP MCB’s
Compliance: Fully AS/NZS 61439 compliant
Material Options: 1.6mm zinc coated steel powdercoated RAL7035 light grey and X15 orange, and 1.5mm 316 stainless steel with N4 finish
Gland Plates: 3mm aluminium gland plates top and bottom
Locking Mechanism: Three-point swing-handle half-euro cylinder lock (keyed 92268)
Chassis Sizes: 5 chassis sizes available – 24P, 36P, 48P, 60P and 72P (250A max)
Main Benefits
Enhanced Protection: IP66 protection rating provides a high level of protection against dust and water ingress
Flexibility: Accepts Schneider or NHP MCB’s, allowing for flexibility in circuit protection
Compliance: Fully AS/NZS 61439 compliant, providing peace of mind for commercial and industrial applications
Durability: Made from high-quality materials, including 1.6mm zinc coated steel and 1.5mm 316 stainless steel
Convenience: Easy installation with swing handle three point locking and hinged escutcheon
Use the B&R 72 Pole SUPERIOR Distribution Board with 24P Extra DIN Space IP66 RAL7035 for your commercial and industrial electrical distribution needs. Shop now at ALL LED DIRECT.com.au and experience the perfect blend of quality, functionalit

Attributes:

Brand: B&R
Part Number: PBS72P
Also Known As: Panelboard
Sub Category: Distribution Boards

Weight (kg): 53.5000
Length (mm): 250
Height (mm): 1400
Width (mm): 600
Length Packaging (mm): 1500
Height Packaging (mm): 290
Width Packaging (mm): 620
Barcode: 9321228115996

Warranty Information:

Warranty Method
Return to ALL LED DIRECT
Commercial Use
1 Year
Domestic Use
1 Year
Warranty Period
1 Year
