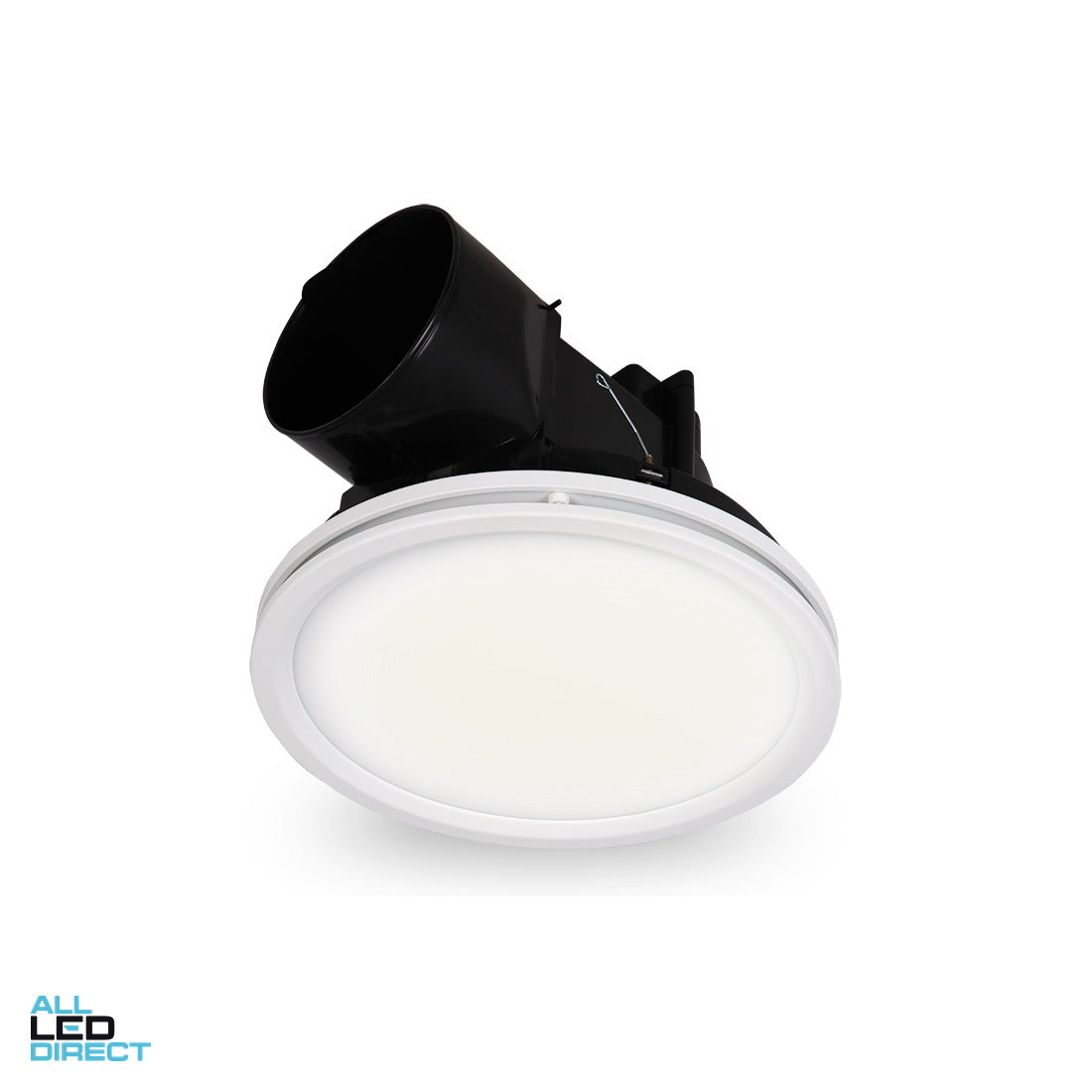

Atom 35 Watt 290mm ECLIPSE Ducted Exhaust Fan with LED Light (18W TRI Colour), Round Fascia White

Includes LED light.

The Atom Eclipse 290 is a larger ducted bathroom exhaust fan with a built-in LED light, so one 290mm ceiling cutout gives you both ventilation and lighting. The round white fascia has an 18W Tri-CCT LED panel you can set to warm, cool or daylight white.

Features

• Ball bearing motor for reliability
• Quiet operation
• Tri-CCT LED panel for energy-efficient light
• Supplied with flex and plug for easy installation
• Draught stopper to help with energy efficiency
• Optional run-on timer accessory available (Atom TIMER/RO, order code 14851)
• 3-year return to base warranty

Specifications

• Ceiling cutout: 290 mm
• Fan size: 290 mm
• Motor: 35 W, ball bearing, centrifugal
• Air extraction: 350 m³/hr
• Duct outlet: 150 mm
• Noise level: 45 dB
• LED light: 18 W Tri-CCT: 3000K 1300 lm / 4000K 1500 lm / 5000K 1300 lm, CRI >80
• IP rating: IPx4
• IC rating: Do not cover
• Finish: Matt white, round fascia

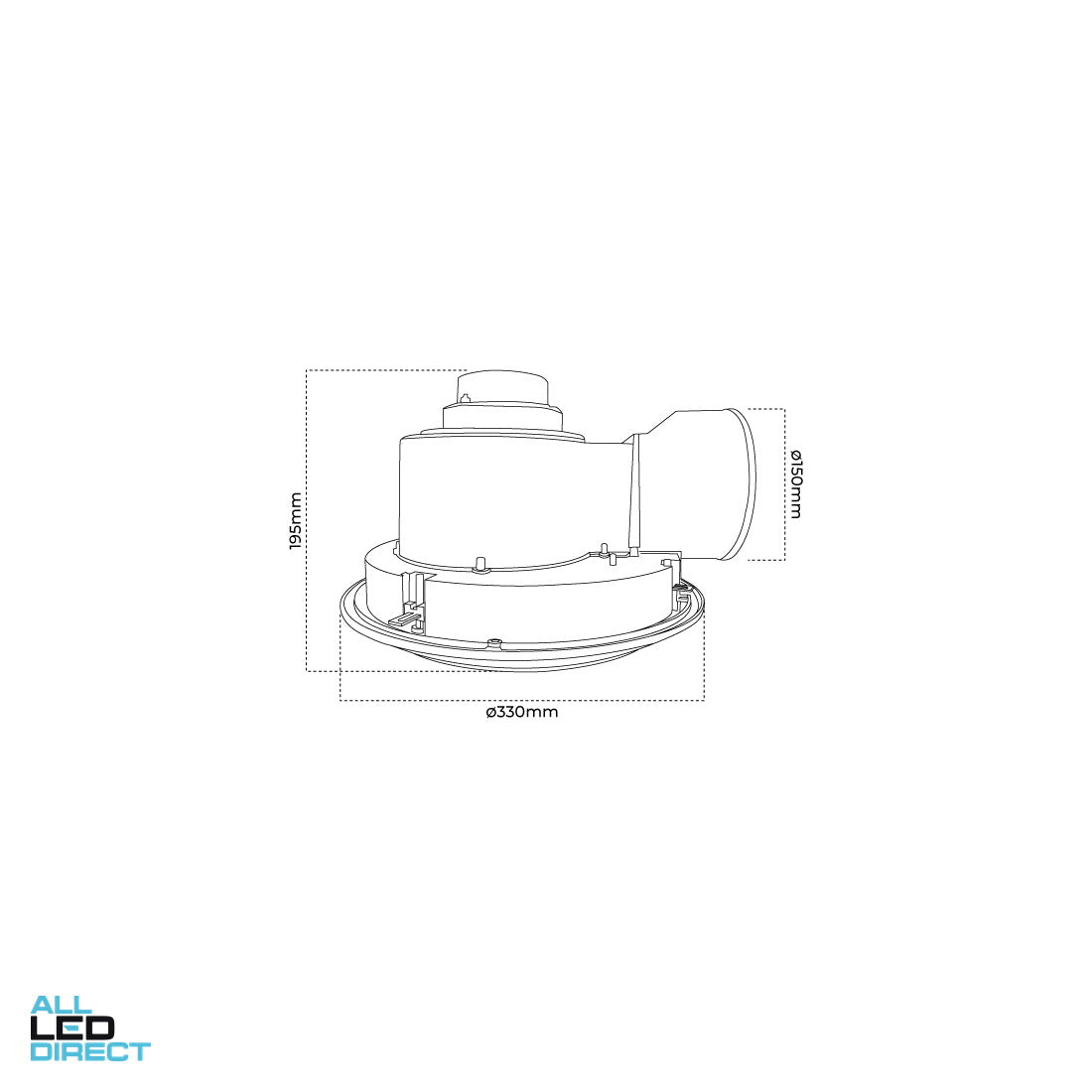

• Dimensions: 195 mm H x 330 mm L x 330 mm W
• Minimum ceiling depth: 220 mm
• Supply: 230 V AC, 50 Hz, 900 mm re-wireable flex and 3-pin plug
• Warranty: 3 years return to base (domestic use)

Brand: Atom. Category: Air Movement. Type: Internal Exhaust Fans. SKU: ECLIPSE/290/LT/WH/RD.
