Atom 30 Watt 240mm ECLIPSE Ducted Exhaust Fan With Round Fascia & 12W TRI Colour LED Light White

Atom 30 Watt 240mm ECLIPSE Ducted Exhaust Fan With Round Fascia & 12W TRI Colour LED Light White

Price on request. Contact ALL LED Direct at info@alledirect.com for a quote.
Taxes included.

Price and freight are quoted on request for this item.

Request A Quote

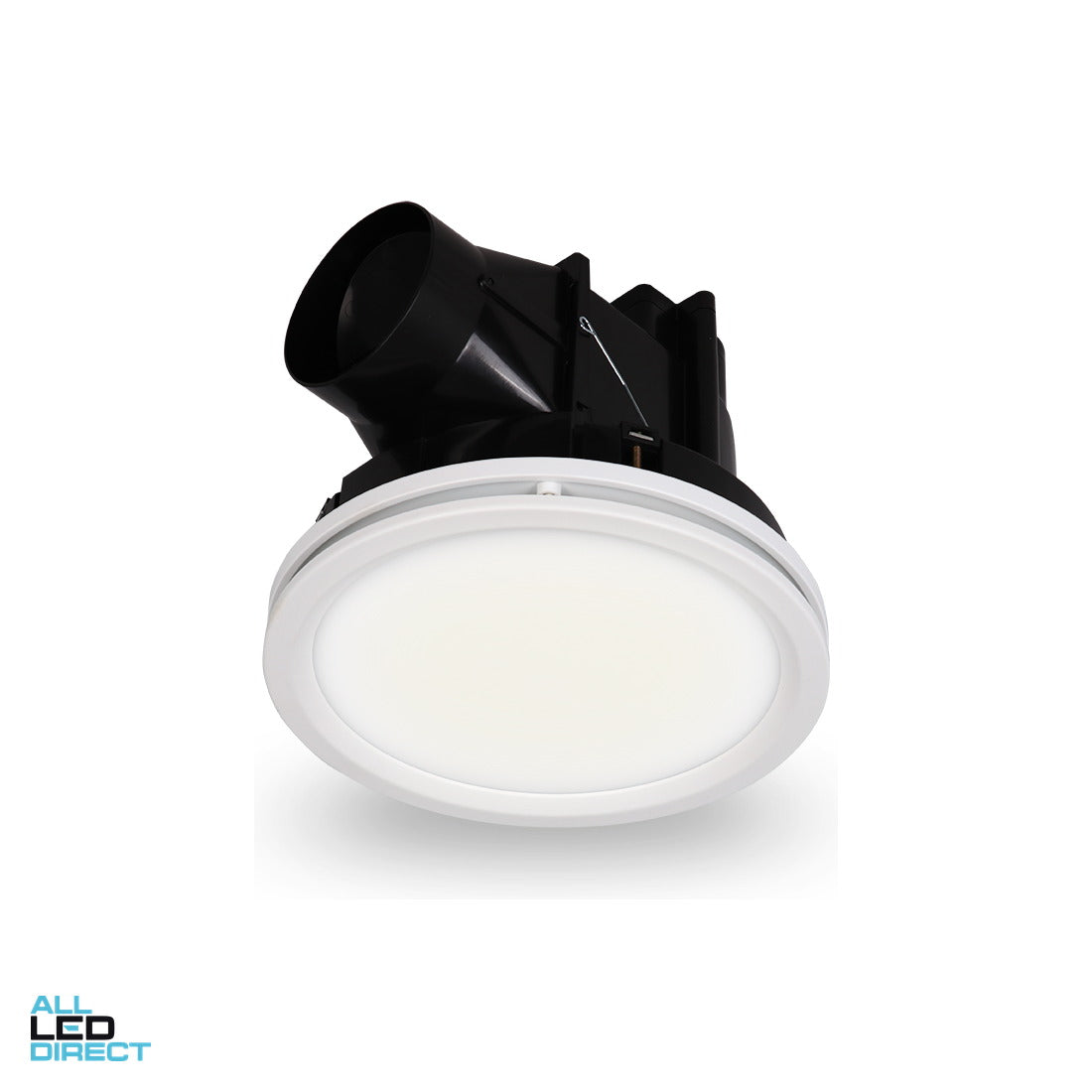

The Atom Eclipse is a ducted bathroom exhaust fan with a built-in LED light, so one 240mm ceiling cutout gives you both ventilation and lighting. The round white fascia has a Tri-CCT LED panel you can set to warm, cool or daylight white.

Features

  • Ball bearing motor for reliability
  • Quiet operation
  • Tri-CCT LED panel for energy-efficient light
  • Supplied with flex and plug for easy installation
  • Draught stopper to help with energy efficiency
  • Optional run-on timer accessory available (Atom TIMER/RO, order code 14851)
  • 3-year return to base warranty

Specifications

  • Ceiling cutout: 240 mm
  • Fan size: 240 mm
  • Motor: 30 W, ball bearing, centrifugal
  • Air extraction: 270 m³/hr
  • Duct outlet: 100 mm
  • Noise level: 42 dB
  • LED light: 12 W Tri-CCT: 3000K 900 lm / 4000K 1000 lm / 5000K 900 lm, CRI >80
  • IP rating: IPx4
  • IC rating: Do not cover
  • Finish: Matt white, round fascia

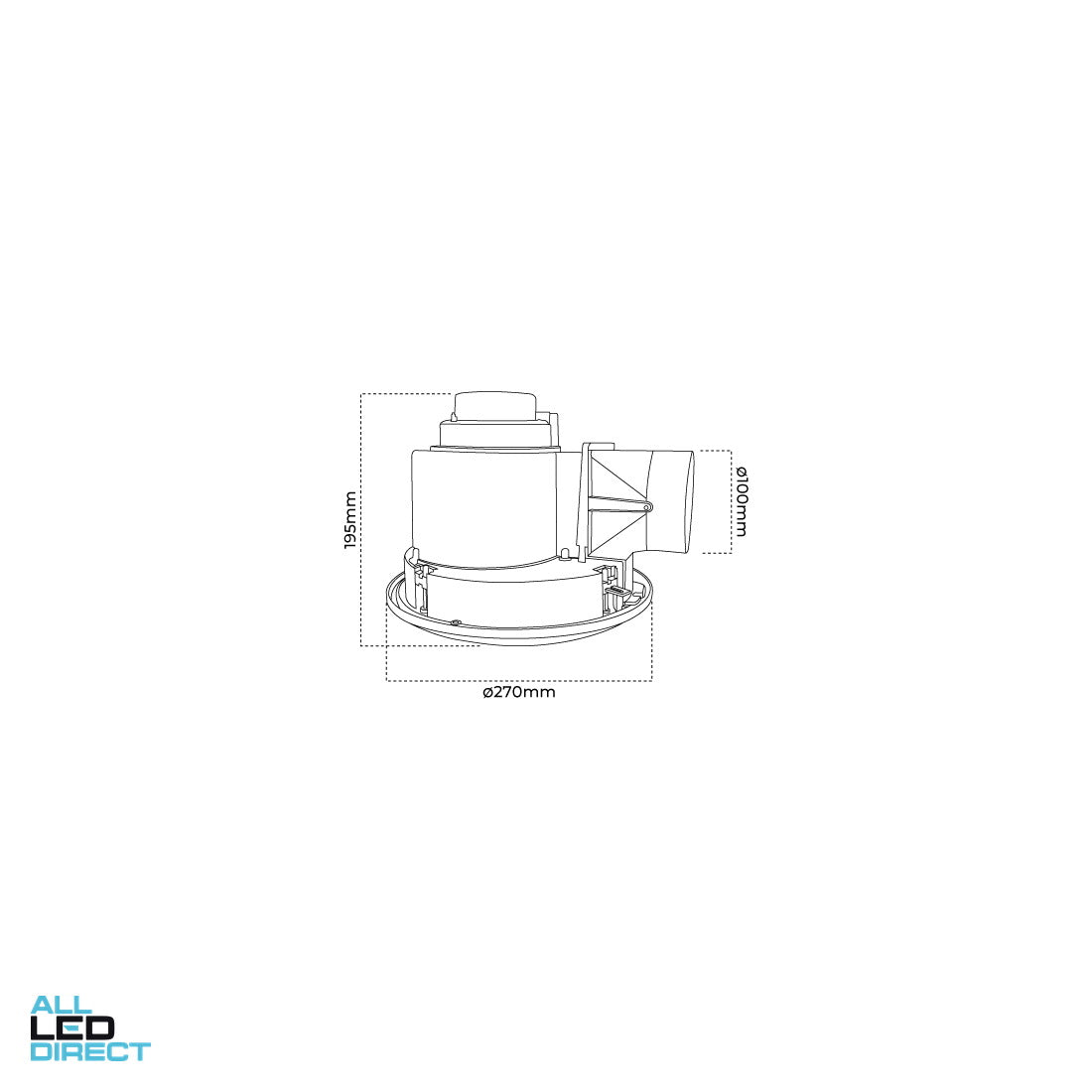

  • Dimensions: 195 mm H x 270 mm L x 270 mm W
  • Minimum ceiling depth: 220 mm
  • Supply: 230 V AC, 50 Hz, 900 mm re-wireable flex and 3-pin plug
  • Warranty: 3 years return to base (domestic use)

Brand: Atom. Category: Air Movement. Type: Internal Exhaust Fans. SKU: ECLIPSE/240/LT/WH/RD.
