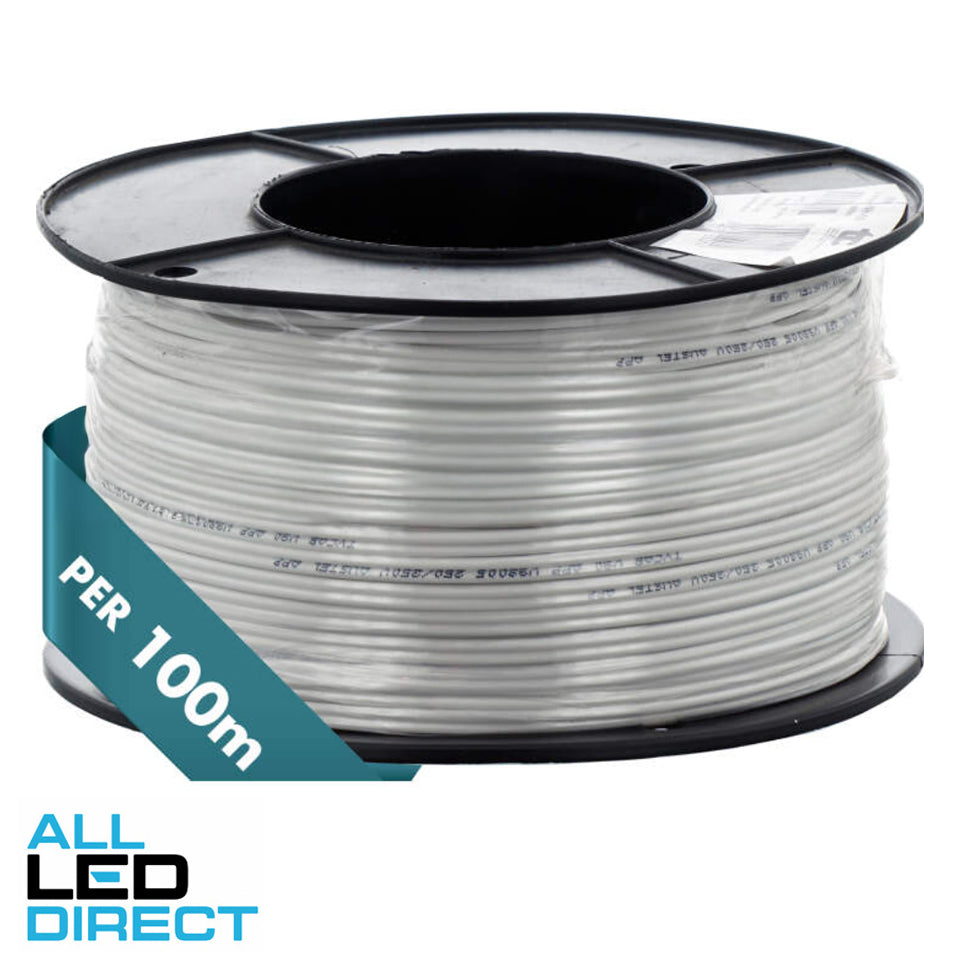

Apec 0.75mm Figure 8 Flexible Cable White 100 Metre Drum

Apec 0.75mm Figure 8 Flexible Cable White 100 Metre Drum by Apec Cables is engineered for versatility in various electrical applications, making it an essential component for both residential and commercial wiring projects. The Apec Cables FFR22402-WH-100 has high-quality annealed copper conductors, ensuring reliable conductivity and performance. The durable PVC insulation and white sheath provide both protection and a neat appearance, suitable for visible installations. Rated for continuous temperatures of up to 90°C, this cable is designed to withstand demanding conditions while maintaining flexibility and durability. It has a figure 8 configuration for enhanced flexibility and ease of installation.
Key Features
Conductor Size: 0.75 mm², made from high-quality annealed copper
Cable Design: Figure 8 configuration for enhanced flexibility and ease of installation
Insulation and Sheath Material: Durable PVC for superior protection
Sheath Colour: White, ensuring a clean and professional look
Temperature Ratings: 75°C (with FFC Code) and 90°C (with FFR Code)
Average Insulation Thickness: 0.8 mm for effective insulation
Approximate Overall Diameter: 2.8 x 6 mm for compactness
Approximate Mass: 2.8 kg per 100 metre drum
Main Benefits
Reliable Conductivity: Ensures reliable conductivity and performance with high-quality annealed copper conductors
Durability: Withstands demanding conditions while maintaining flexibility and durability
Easy Installation: Figure 8 configuration for enhanced flexibility and ease of installation
Professional Appearance: White sheath provides a clean and professional look, suitable for visible installations
Versatility: Suitable for a wide range of indoor and outdoor wiring tasks
Use the Apec 0.75mm Figure 8 Flexible Cable White 100 Metre Drum for your residential and commercial wiring projects. Shop now at ALL LED DIRECT.com.au and experience the perfect blend of quality, functionality, and convenience. Don't miss ou

Attributes:

Brand: Apec Cables
Part Number: FFR22402-WH-100
Cable Conductor Material: Annealed Copper
Cable Core Colours: Numbered
Cable Drum Length: 100 Metres
Cable Insulation & Sheath Material: PVC
Cable Sheath Colour: White
Cable Size mm: 0.75mm
Cable Voltage: 250 Volts Light Duty
Number of Cores: 1
Sub Category: Figure 8 Cable
Freight Levy: Freight Free on ALL LED DIRECT Couriers for orders over $500
Weight (kg): 3.0000
Length (mm): 205
Height (mm): 105
Width (mm): 205
Length Packaging (mm): 205
Height Packaging (mm): 105
Width Packaging (mm): 205
Barcode: 9326663010653
Barcode (Secondary): 9320943155010
Barcode (Tertiary): 2000100130032

Warranty Information:

Warranty Method
Return to ALL LED DIRECT
Commercial Use
10 Years
Domestic Use
10 Years
Warranty Period
10 Years
