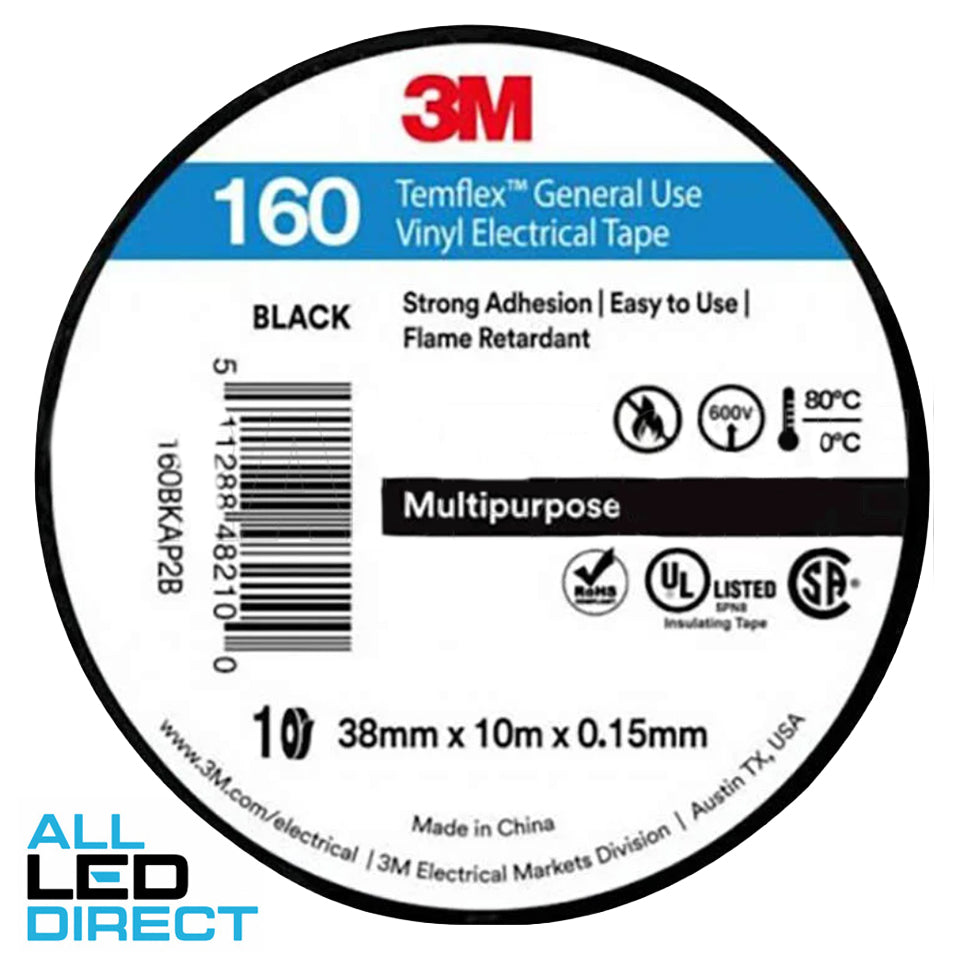

3M 160 TEMFLEX Vinyl 19mm x 20m Electrical Tape Black

Product Details
The 3M 160 TEMFLEX Vinyl 18mm x 20m Electrical Tape Black by 3M is a multi-purpose, general use grade, nominal 0.15 mm thick electrical insulating tape composed of an elastic vinyl (PVC) film backing coated on one side with a non-corrosive, pressure-sensitive adhesive. The 3M 3M160-BK is suitable for less demanding indoor applications and is conformable. It is great for basic electrical and hardware applications such as phase identification, colour coding, and harnessing. The 3M 3M160-BK has a temperature resistance of 0°C - 80°C (UL510) and -10°C - 80°C (CSA C22.2 No.197), and is flame retardant to UL510.
Key Features
General Purpose Vinyl Tape: For less demanding indoor applications
Conformable: Suitable for ambient indoor uses
Basic Electrical and Hardware Application: Phase identification, colour coding, harnessing
Temperature Resistance: 0°C - 80°C (UL510) and -10°C - 80°C (CSA C22.2 No.197)
Flame Retardant: Flame retardant to UL510
Thickness: 0.15mm
Elongation: 220%
Adhesion to Steel: 2.4 N/10mm
Adhesion to Backing: 2.4 N/10mm
Dielectric Strength: 1.2 kV/mil
Main Benefits
Indoor Application Benefits: Great for less demanding indoor applications
Conformable Benefits: Suitable for ambient indoor uses
Electrical and Hardware Benefits: Basic electrical and hardware application such as phase identification, colour coding, and harnessing
Temperature Resistance Benefits: Withstands temperatures from 0°C - 80°C (UL510) and -10°C - 80°C (CSA C22.2 No.197)
Flame Retardant Benefits: Flame retardant to UL510 for added safety

Attributes:

Brand: 3M
Part Number: 3M160-BK
Sub Category: Electrical Insulation Tape
Freight Levy: Freight Free on ALL LED DIRECT Couriers for orders over $500
Weight (kg): 0.0800
Length (mm): 2000
Width (mm): 18
Length Packaging (mm): 75
Height Packaging (mm): 18
Width Packaging (mm): 75
Barcode: 9310063183673
Barcode (Secondary): 59310063183678
Barcode (Tertiary): 068060582553
