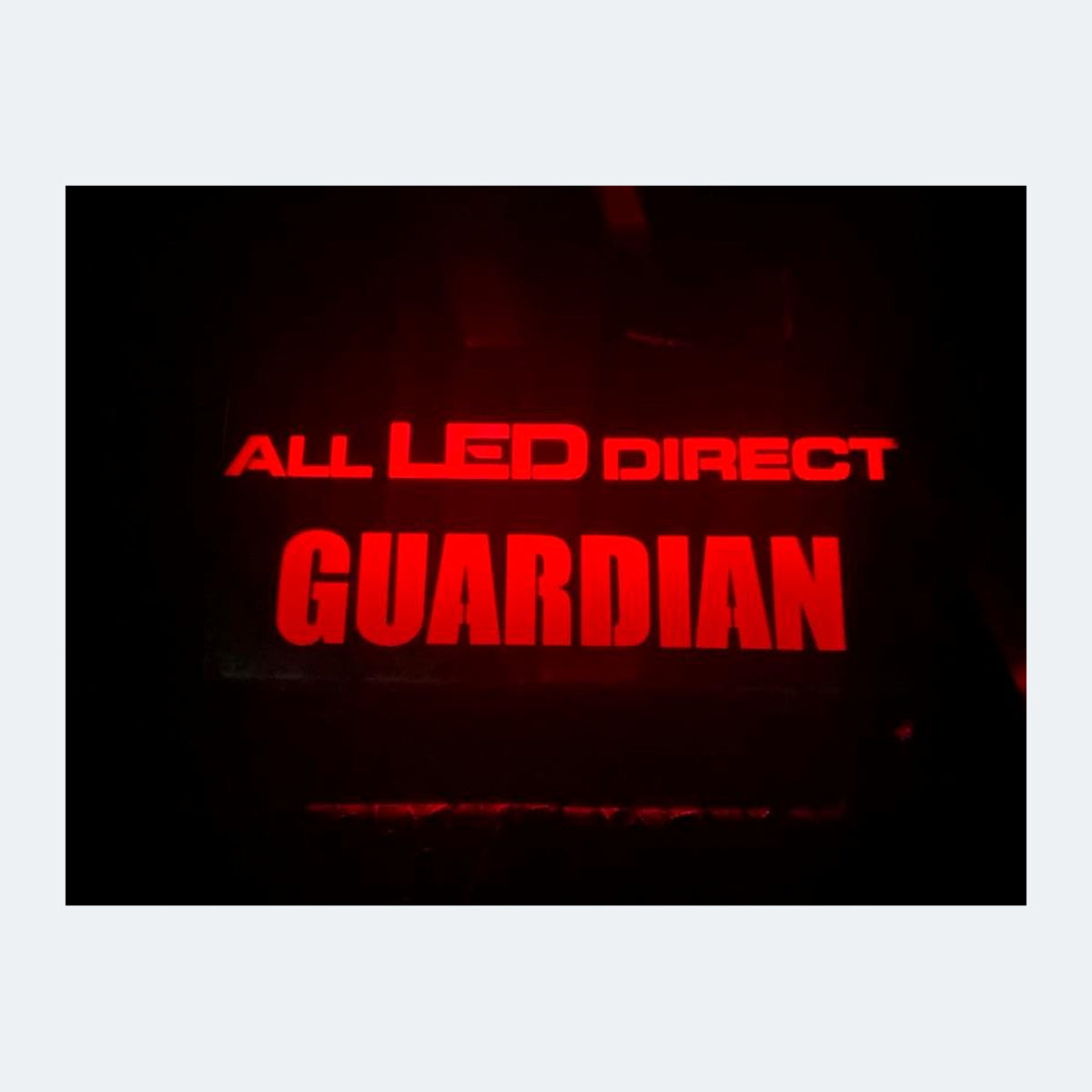

TJL Guardian Lighting System
TJL Guardian Lighting System
Couldn't load pickup availability
The guardian lighting system was developed to define a no go zone around working machines like rope shovels and draglines to help eliminate accidents.
With serious incidents involving swing machines with dozers and trucks, this system is to give a defined line of the swing radius where axillary machines shall not enter. This system consists of high powered LED lights to define a distinct red line on the ground that can be adjusted to suit any machine with multiple points of adjustment for a full perimeter of the machine or across the rear.
This system was developed by TJL Revolutionary Products in Australia and made in Australia. It is made to last with stainless steel construction, high quality LED components and extensive vibration and element controls.
The ideal height of the light would be 3-4 metres off the ground with a beam length of 3.5-4 metres in length and a width of 400mm. Ideal location is lower section of the counterweight if overhead lighting is used.
Product specification
Recommended to not look directly at the lights Constant current 24VDC
Power- 185 WATTS per light
Lumens 9000 per light
Amps -2.5amps per light MAX
Construction – Stainless steel, polycarbonate and aluminium Environment control – IP67
Size per light – 400mm x 250mm x 140mm
Weight per light – 12.5KG
12 Month warranty
